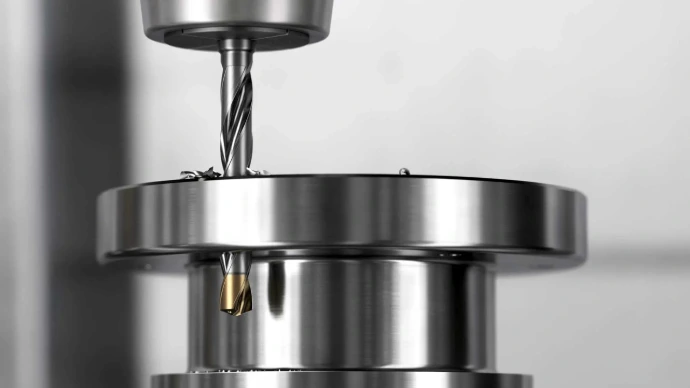

860-GM系列3-16MM通用整体硬质合金钻头

860-GM 是一款应用于钢、不锈钢、铸铁和淬硬材料浅孔钻削的解决方案。采用了配备超细粒径基体与 PVD 多层涂层的“X1BM”牌号，旨在实现较长的刀具寿命。通过对排屑槽进行抛光处理，该钻头在所有被加工材料中均有助于提升生产率，并获得较为稳定的刀具寿命。

2026年4月24日由

cuttingtools

860-GM系列

整体硬质合金钻头

经过抛光的全新容屑槽形状改善了切屑排出，并有助于提升孔质量。芯厚强度较高，有助于降低切削力。

常规钻削倾斜进刀倾斜退刀

交叉孔凸/凹表面带倒角的孔

应用定位

通用工程和汽车行业中加工钢、不锈钢、铸铁和淬硬材料的合适选择。
典型零部件：阀体、阀块、罩壳、法兰、歧管
同时适用于对孔质量要求较高的航空航天以及石油和天然气行业。

产品规格

直径范围：3–16 mm（0.118–0.629 英寸）
钻孔深度：3–8 倍钻头直径
标准钻头和阶梯钻头
切削直径公差：m7
可实现孔公差：H8–H9

标准规格

几何结构	钻头类型	长径比	钻头直径mm (英寸)	冷却液	刀柄类型	材质
860-GM	标准单直径钻头	3‒8	3-16(0.118‒0.63)	内冷/外冷	圆柱柄DIN 6535 HA	X1BM
860-GM	标准双直径钻头	3	3-14(0.118‒0.55)	内	圆柱柄DIN 6535 HA	X1BM

经过优化的多材料钻削解决方案

860-GM 是一款应用于钢、不锈钢、铸铁和淬硬材料浅孔钻削的解决方案。在耐热合金（HRSA）和有色金属材料的加工中也具有较好的竞争力。

采用了配备超细粒径基体与 PVD 多层涂层的“X1BM”牌号，旨在实现较长的刀具寿命。通过对排屑槽进行抛光处理，该钻头在所有被加工材料中均有助于提升生产率，并获得较为稳定的刀具寿命。

经过抛光的全新容屑槽形状改善了切屑排出，并有助于提升孔质量。芯厚强度较高，有助于降低切削力。较好的加工安全性、孔加工完整性和较长的刀具寿命，使其成为机械工程和汽车应用中的合适选择。

高级结构设计

刀尖强化处理：提高刀尖强度并减少出口毛刺
优化的双刃带：提升加工稳定性并改善孔质量
全新的钻尖修薄型式：降低切削力并获得较好的孔精度
全新的钻尖结构：实现精确磨制的后角、较好的表面质量和较为稳定的磨损过程
刃口制备：提高切削刃强度并消除刃口微观缺陷

主要益处

适用于各行业、多种材料和应用的钻削解决方案
有助于保证较好的稳定性、加工安全性和较长的刀具寿命
抛光的容屑槽提升排屑性能，减少刀具的热量积聚
可靠的设计和良好的尺寸精度有助于改善成孔公差和质量
使用一款钻头可钻削多种材料，有助于减少库存并提高机床灵活性，从而缩短装夹时间

应用领域

860-GM 可用于多个行业的多种应用和零部件。

是通用工程和汽车行业中加工 ISO P、K、M 和 H 材料的合适选择
典型零部件：阀体、阀块、罩壳、法兰、歧管
同时适用于对孔质量要求较高的航空航天以及石油和天然气行业

适用工况：常规钻削；倾斜进刀；倾斜退刀；交叉孔；凸面或凹面加工；带倒角的孔

型号列表

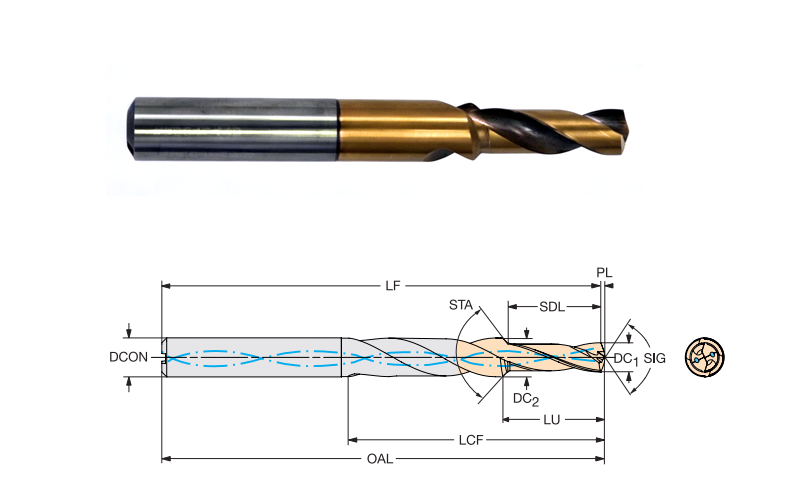

阶梯钻型号	切削直径DC1	切削直径DC2	柄径DCON	有用长度LU	总长OAL	功能长度LF	台阶直径长度SDL	容屑槽长度LCF	点长度PL	外刃顶角SIG
860.2-0335-011A1-GM	3.35	4.5	6	11.3	66	61.4	10.1	19	0.6	140°
860.2-0340-011A1-GM	3.4	4.6	6	11.4	66	65.4	10.2	19	0.6	140°
860.2-0425-014A1-GM	4.25	5.7	6	14.3	66	65.3	12.8	23	0.7	140°
860.2-0430-014A1-GM	4.3	5.8	6	14.5	66	65.3	13	23	0.7	140°
860.2-0465-015A1-GM	4.65	5.9	6	15.5	66	65.2	14	23	0.8	140°
860.2-0500-016A1-GM	5	6.8	8	16.8	79	78.2	15	28	0.8	140°
860.2-0510-017A1-GM	5.1	6.9	8	17.1	79	78.1	15.3	28	0.9	140°
860.2-0550-018A1-GM	5.5	7.4	8	18.6	79	78.1	16.6	28	0.9	140°
860.2-0555-018A1-GM	5.55	7.5	8	18.7	79	78.1	16.7	28	0.9	140°
860.2-0660-022A1-GM	6.6	8.9	10	22.3	89	87.9	19.9	37	1.1	140°
860.2-0675-022A1-GM	6.75	9.1	10	22.7	89	87.8	20.3	37	1.2	140°
860.2-0685-023A1-GM	6.85	9.2	10	23	89	87.8	20.6	37	1.2	140°
860.2-0690-023A1-GM	6.9	9.3	10	23.2	89	87.8	20.7	37	1.2	140°
860.2-0700-023A1-GM	7	9.5	10	23.6	89	87.8	21.1	37	1.2	140°
860.2-0740-024A1-GM	7.4	9.8	10	24.7	89	87.7	22.2	37	1.3	140°
860.2-0800-026A1-GM	8	10.8	12	26.9	102	100.6	24	42	1.4	140°
860.2-0850-028A1-GM	8.5	11.5	12	28.5	102	100.5	25.5	42	1.5	140°
860.2-0860-028A1-GM	8.6	11.6	12	28.9	102	100.5	25.8	42	1.5	140°
860.2-0870-029A1-GM	8.7	11.7	12	29.2	102	100.5	26.1	42	1.5	140°
860.2-0900-030A1-GM	9	11.8	12	30	102	100.5	27	42	1.5	140°
860.2-1025-034A1-GM	10.25	13.8	14	34.4	107	105.2	30.8	52	1.8	140°
860.2-1030-034A1-GM	10.3	13.8	14	34.6	107	105.2	31	52	1.8	140°
860.2-1040-034A1-GM	10.4	13.8	14	34.8	107	105.2	31.2	52	1.8	140°
860.2-1050-035A1-GM	10.5	13.8	14	35.2	107	105.2	31.6	52	1.8	140°
860.2-1200-040A1-GM	12	15.8	16	40.1	115	112.9	36	59	2.1	140°
860.2-1400-047A1-GM	14	18.9	20	47.1	131	128.6	42.1	78	2.4	140°

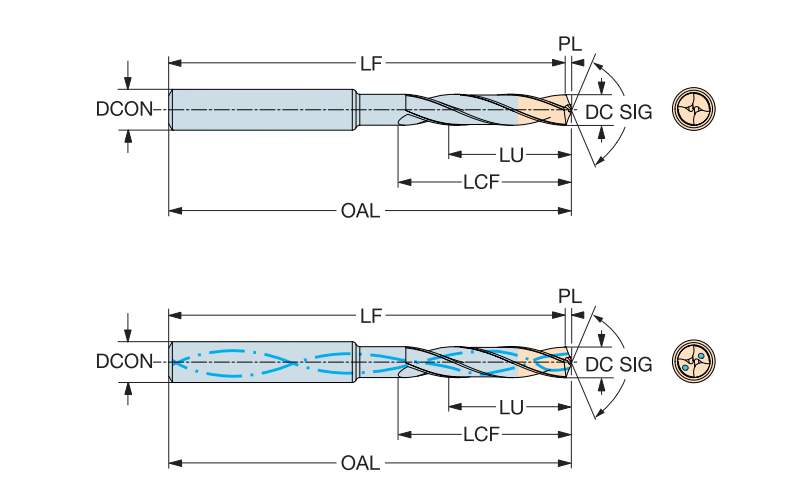

直钻型号	切削直径DC	柄径DCON	有用长度LU	总长OAL	功能长度LF	容屑槽长度LCF	点长度PL	外刃顶角SIG
860.1-0300-009A0-GM	3	6	9.5	62	61.5	20	0.5	140°
860.1-0300-015A0-GM	3	6	15.5	66	65.5	28	0.5	140°
860.1-0300-009A1-GM	3	6	9.5	62	61.5	20	0.5	140°
860.1-0300-015A1-GM	3	6	15.5	66	65.5	28	0.5	140°
860.1-0300-024A1-GM	3	6	24.5	79	78.6	37	0.4	140°
860.1-0310-009A0-GM	3.1	6	9.8	62	61.5	20	0.5	140°
860.1-0310-016A0-GM	3.1	6	16	66	65.5	28	0.5	140°
860.1-0310-009A1-GM	3.1	6	9.8	62	61.5	20	0.5	140°
860.1-0310-016A1-GM	3.1	6	16	66	65.5	28	0.5	140°
860.1-0310-025A1-GM	3.1	6	25.3	79	78.6	37	0.4	140°
860.1-0317-010A1-GM	3.17	6	10	62	61.5	20	0.5	140°
860.1-0317-016A1-GM	3.17	6	16.4	66	65.5	28	0.5	140°
860.1-0318-026A1-GM	3.18	6	26	79	78.5	37	0.5	140°
860.1-0320-010A0-GM	3.2	6	10.1	62	61.5	20	0.5	140°
860.1-0320-016A0-GM	3.2	6	16.5	66	65.5	28	0.5	140°
860.1-0320-010A1-GM	3.2	6	10.1	62	61.5	20	0.5	140°
860.1-0320-016A1-GM	3.2	6	16.5	66	65.5	28	0.5	140°
860.1-0320-026A1-GM	3.2	6	26.1	79	78.5	37	0.5	140°
860.1-0330-010A0-GM	3.3	6	10.5	62	61.4	20	0.6	140°
860.1-0330-017A0-GM	3.3	6	17.1	66	65.4	28	0.6	140°
860.1-0330-010A1-GM	3.3	6	10.5	62	61.4	20	0.6	140°
860.1-0330-017A1-GM	3.3	6	17.1	66	65.4	28	0.6	140°
860.1-0330-027A1-GM	3.3	6	27	79	78.5	37	0.5	140°
860.1-0338-017A0-GM	3.38	6	17.5	66	65.4	28	0.6	140°
860.1-0340-010A0-GM	3.4	6	10.8	62	61.4	20	0.6	140°
860.1-0340-017A0-GM	3.4	6	17.6	66	65.4	28	0.6	140°
860.1-0340-010A1-GM	3.4	6	10.8	62	61.4	20	0.6	140°
860.1-0340-017A1-GM	3.4	6	17.6	66	65.4	28	0.6	140°
860.1-0340-027A1-GM	3.4	6	27.8	79	78.5	37	0.5	140°
860.1-0345-010A1-GM	3.45	6	11	62	61.4	20	0.6	140°
860.1-0345-017A1-GM	3.45	6	17.8	66	65.4	28	0.6	140°
860.1-0350-011A0-GM	3.5	6	11.1	62	61.4	20	0.6	140°
860.1-0350-018A0-GM	3.5	6	18.1	66	65.4	28	0.6	140°
860.1-0350-011A1-GM	3.5	6	11.1	62	61.4	20	0.6	140°
860.1-0350-018A1-GM	3.5	6	18.1	66	65.4	28	0.6	140°
860.1-0350-028A1-GM	3.5	6	28.6	79	78.5	37	0.5	140°
860.1-0357-011A1-GM	3.57	6	11.3	62	61.4	20	0.6	140°
860.1-0357-018A1-GM	3.57	6	18.5	66	65.4	28	0.6	140°
860.1-0357-028A1-GM	3.57	6	29.2	79	78.5	37	0.5	140°
860.1-0360-011A0-GM	3.6	6	11.4	62	61.4	20	0.6	140°
860.1-0360-018A0-GM	3.6	6	18.6	66	65.4	28	0.6	140°
860.1-0360-011A1-GM	3.6	6	11.4	62	61.4	20	0.6	140°
860.1-0360-018A1-GM	3.6	6	18.6	66	65.4	28	0.6	140°
860.1-0370-011A0-GM	3.7	6	11.7	62	61.4	20	0.6	140°
860.1-0370-019A0-GM	3.7	6	19.1	66	65.4	28	0.6	140°
860.1-0370-011A1-GM	3.7	6	11.7	62	61.4	20	0.6	140°
860.1-0370-019A1-GM	3.7	6	19.1	66	65.4	28	0.6	140°
860.1-0370-028A1-GM	3.7	6	30.2	79	78.5	37	0.5	140°
860.1-0380-012A0-GM	3.8	6	12	66	65.4	24	0.6	140°
860.1-0380-019A0-GM	3.8	6	19.6	74	73.4	36	0.6	140°
860.1-0380-012A1-GM	3.8	6	12	66	65.4	24	0.6	140°
860.1-0380-019A1-GM	3.8	6	19.6	74	73.4	36	0.6	140°
860.1-0380-031A1-GM	3.8	6	31	90	89.5	48	0.5	140°
860.1-0390-012A0-GM	3.9	6	12.4	66	65.3	24	0.7	140°
860.1-0390-020A0-GM	3.9	6	20.2	74	73.3	36	0.7	140°
860.1-0390-012A1-GM	3.9	6	12.4	66	65.3	24	0.7	140°
860.1-0390-020A1-GM	3.9	6	20.2	74	73.3	36	0.7	140°
860.1-0397-020A1-GM	3.97	6	20.5	74	73.3	36	0.7	140°
860.1-0397-032A1-GM	3.97	6	32.4	90	89.4	48	0.6	140°
860.1-0400-012A0-GM	4	6	12.7	66	65.3	24	0.7	140°
860.1-0400-020A0-GM	4	6	20.7	74	73.3	36	0.7	140°
860.1-0400-012A1-GM	4	6	12.7	66	65.3	24	0.7	140°
860.1-0400-020A1-GM	4	6	20.7	74	73.3	36	0.7	140°
860.1-0400-032A1-GM	4	6	32.7	90	89.4	48	0.6	140°
860.1-0410-013A0-GM	4.1	6	13	66	65.3	24	0.7	140°
860.1-0410-021A0-GM	4.1	6	21.2	74	73.3	36	0.7	140°
860.1-0410-013A1-GM	4.1	6	13	66	65.3	24	0.7	140°
860.1-0410-021A1-GM	4.1	6	21.2	74	73.3	36	0.7	140°
860.1-0410-033A1-GM	4.1	6	33.5	90	89.4	48	0.6	140°
860.1-0420-013A0-GM	4.2	6	13.3	66	65.3	24	0.7	140°
860.1-0420-021A0-GM	4.2	6	21.7	74	73.3	36	0.7	140°
860.1-0420-013A1-GM	4.2	6	13.3	66	65.3	24	0.7	140°
860.1-0420-021A1-GM	4.2	6	21.7	74	73.3	36	0.7	140°
860.1-0420-034A1-GM	4.2	6	34.3	90	89.4	48	0.6	140°
860.1-0430-013A0-GM	4.3	6	13.6	66	65.3	24	0.7	140°
860.1-0430-022A0-GM	4.3	6	22.2	74	73.3	36	0.7	140°
860.1-0430-013A1-GM	4.3	6	13.6	66	65.3	24	0.7	140°
860.1-0430-022A1-GM	4.3	6	22.2	74	73.3	36	0.7	140°
860.1-0430-035A1-GM	4.3	6	35.1	90	89.4	48	0.6	140°
860.1-0436-013A1-GM	4.36	6	13.8	66	65.3	24	0.7	140°
860.1-0436-022A1-GM	4.36	6	22.5	74	73.3	36	0.7	140°
860.1-0437-035A1-GM	4.37	6	35.7	90	89.4	48	0.6	140°
860.1-0440-014A0-GM	4.4	6	14	66	65.3	24	0.7	140°
860.1-0440-014A1-GM	4.4	6	14	66	65.3	24	0.7	140°
860.1-0440-022A1-GM	4.4	6	22.8	74	73.3	36	0.7	140°
860.1-0450-014A0-GM	4.5	6	14.3	66	65.2	24	0.8	140°
860.1-0450-023A0-GM	4.5	6	23.3	74	73.2	36	0.8	140°
860.1-0450-014A1-GM	4.5	6	14.3	66	65.2	24	0.8	140°
860.1-0450-023A1-GM	4.5	6	23.3	74	73.2	36	0.8	140°
860.1-0450-036A1-GM	4.5	6	36.8	90	89.3	48	0.7	140°
860.1-0455-014A1-GM	4.55	6	14.4	66	65.2	24	0.8	140°
860.1-0460-014A0-GM	4.6	6	14.6	66	65.2	24	0.8	140°
860.1-0460-023A0-GM	4.6	6	23.8	74	73.2	36	0.8	140°
860.1-0460-014A1-GM	4.6	6	14.6	66	65.2	24	0.8	140°
860.1-0460-023A1-GM	4.6	6	23.8	74	73.2	36	0.8	140°
860.1-0460-037A1-GM	4.6	6	37.6	90	89.3	48	0.7	140°
860.1-0470-014A0-GM	4.7	6	14.9	66	65.2	24	0.8	140°
860.1-0470-014A1-GM	4.7	6	14.9	66	65.2	24	0.8	140°
860.1-0470-024A1-GM	4.7	6	24.3	74	73.2	36	0.8	140°
860.1-0470-038A1-GM	4.7	6	38.4	90	89.3	48	0.7	140°
860.1-0476-015A1-GM	4.76	6	15.1	66	65.2	28	0.8	140°
860.1-0476-024A1-GM	4.76	6	24.6	74	73.2	44	0.8	140°
860.1-0476-038A1-GM	4.76	6	38.9	90	89.3	62	0.7	140°
860.1-0480-015A0-GM	4.8	6	15.2	66	65.2	28	0.8	140°
860.1-0480-024A0-GM	4.8	6	24.8	82	81.2	44	0.8	140°
860.1-0480-015A1-GM	4.8	6	15.2	66	65.2	28	0.8	140°
860.1-0480-024A1-GM	4.8	6	24.8	82	81.2	44	0.8	140°
860.1-0480-039A1-GM	4.8	6	39.2	104	103.3	62	0.7	140°
860.1-0490-015A0-GM	4.9	6	15.5	66	65.2	28	0.8	140°
860.1-0490-015A1-GM	4.9	6	15.5	66	65.2	28	0.8	140°
860.1-0490-025A1-GM	4.9	6	25.3	82	81.2	44	0.8	140°
860.1-0500-015A0-GM	5	6	15.9	66	65.2	28	0.8	140°
860.1-0500-025A0-GM	5	6	25.9	82	81.2	44	0.8	140°
860.1-0500-015A1-GM	5	6	15.9	66	65.2	28	0.8	140°
860.1-0500-025A1-GM	5	6	25.9	82	81.2	44	0.8	140°
860.1-0500-040A1-GM	5	6	40.9	104	103.2	62	0.8	140°
860.1-0510-016A0-GM	5.1	6	16.2	66	65.1	28	0.9	140°
860.1-0510-026A0-GM	5.1	6	26.4	82	81.1	44	0.9	140°
860.1-0510-016A1-GM	5.1	6	16.2	66	65.1	28	0.9	140°
860.1-0510-026A1-GM	5.1	6	26.4	82	81.1	44	0.9	140°
860.1-0510-041A1-GM	5.1	6	41.7	104	103.1	62	0.9	140°
860.1-0516-016A1-GM	5.16	6	16.4	66	65.1	28	0.9	140°
860.1-0516-026A1-GM	5.16	6	26.7	82	81.1	44	0.9	140°
860.1-0520-016A0-GM	5.2	6	16.5	66	65.1	28	0.9	140°
860.1-0520-026A0-GM	5.2	6	26.9	82	81.1	44	0.9	140°
860.1-0520-016A1-GM	5.2	6	16.5	66	65.1	28	0.9	140°
860.1-0520-026A1-GM	5.2	6	26.9	82	81.1	44	0.9	140°
860.1-0520-042A1-GM	5.2	6	42.5	104	103.1	62	0.9	140°
860.1-0525-027A1-GM	5.25	6	27.4	82	81.1	44	0.9	140°
860.1-0530-016A0-GM	5.3	6	16.8	66	65.1	28	0.9	140°
860.1-0530-027A0-GM	5.3	6	27.4	82	81.1	44	0.9	140°
860.1-0530-016A1-GM	5.3	6	16.8	66	65.1	28	0.9	140°
860.1-0530-027A1-GM	5.3	6	27.4	82	81.1	44	0.9	140°
860.1-0530-043A1-GM	5.3	6	43.3	104	103.1	62	0.9	140°
860.1-0540-016A0-GM	5.4	6	17.1	66	65.1	28	0.9	140°
860.1-0540-016A1-GM	5.4	6	17.1	66	65.1	28	0.9	140°
860.1-0540-027A1-GM	5.4	6	28	82	81.1	44	0.9	140°
860.1-0540-044A1-GM	5.4	6	44.1	104	103.1	62	0.9	140°
860.1-0550-016A0-GM	5.5	6	17.5	66	65.1	28	0.9	140°
860.1-0550-028A0-GM	5.5	6	28.5	82	81.1	44	0.9	140°
860.1-0550-016A1-GM	5.5	6	17.5	66	65.1	28	0.9	140°
860.1-0550-028A1-GM	5.5	6	28.5	82	81.1	44	0.9	140°
860.1-0550-045A1-GM	5.5	6	45.4	104	103.1	62	0.9	140°
860.1-0555-028A1-GM	5.55	6	28.8	82	81.1	44	0.9	140°
860.1-0556-016A1-GM	5.56	6	17.6	66	65.1	28	0.9	140°
860.1-0556-028A1-GM	5.56	6	28.8	82	81.1	44	0.9	140°
860.1-0556-045A1-GM	5.56	6	45.4	104	103.1	62	0.9	140°
860.1-0560-016A0-GM	5.6	6	17.8	66	65	28	1	140°
860.1-0560-029A0-GM	5.6	6	29	82	81	44	1	140°
860.1-0560-016A1-GM	5.6	6	17.8	66	65	28	1	140°
860.1-0560-029A1-GM	5.6	6	29	82	81	44	1	140°
860.1-0560-045A1-GM	5.6	6	45.8	104	103	62	1	140°
860.1-0570-016A1-GM	5.7	6	18.1	66	65	28	1	140°
860.1-0570-029A1-GM	5.7	6	29.5	82	81	44	1	140°
860.1-0570-046A1-GM	5.7	6	46.6	104	103	62	1	140°
860.1-0580-016A0-GM	5.8	6	18.4	66	65	28	1	140°
860.1-0580-016A1-GM	5.8	6	18.4	66	65	28	1	140°
860.1-0580-030A1-GM	5.8	6	30	82	80.9	44	1.1	140°
860.1-0580-047A1-GM	5.8	6	47.4	104	103	62	1	140°
860.1-0590-030A0-GM	5.9	6	30.5	82	81	44	1	140°
860.1-0590-016A1-GM	5.9	6	18.7	66	65	28	1	140°
860.1-0590-048A1-GM	5.9	6	48.2	104	103	62	1	140°
860.1-0595-016A1-GM	5.95	6	18.9	66	64.9	28	1.1	140°
860.1-0600-016A0-GM	6	6	19	66	65	28	1	140°
860.1-0600-031A0-GM	6	6	31	82	81	44	1	140°
860.1-0600-016A1-GM	6	6	19	66	64.9	28	1.1	140°
860.1-0600-031A1-GM	6	6	31	82	80.9	44	1.1	140°
860.1-0600-049A1-GM	6	6	49	104	103	62	1	140°
860.1-0610-019A0-GM	6.1	8	19.4	79	78	34	1	140°
860.1-0610-031A0-GM	6.1	8	31.6	91	90	53	1	140°
860.1-0610-019A1-GM	6.1	8	19.4	79	77.9	34	1.1	140°
860.1-0610-031A1-GM	6.1	8	31.6	91	89.9	53	1.1	140°
860.1-0610-049A1-GM	6.1	8	49.9	126	125	84	1	140°
860.1-0620-019A0-GM	6.2	8	19.7	79	77.9	34	1.1	140°
860.1-0620-032A0-GM	6.2	8	32.1	91	89.9	53	1.1	140°
860.1-0620-019A1-GM	6.2	8	19.7	79	77.9	34	1.1	140°
860.1-0620-032A1-GM	6.2	8	32.1	91	89.9	53	1.1	140°
860.1-0620-050A1-GM	6.2	8	50.7	126	124.9	84	1.1	140°
860.1-0630-020A0-GM	6.3	8	20	79	77.9	34	1.1	140°
860.1-0630-032A0-GM	6.3	8	32.6	91	89.9	53	1.1	140°
860.1-0630-020A1-GM	6.3	8	20	79	77.9	34	1.1	140°
860.1-0630-032A1-GM	6.3	8	32.6	91	89.9	53	1.1	140°
860.1-0630-051A1-GM	6.3	8	51.5	126	124.9	84	1.1	140°
860.1-0635-020A1-GM	6.35	8	20.2	79	77.8	34	1.2	140°
860.1-0635-032A1-GM	6.35	8	32.9	91	89.8	53	1.2	140°
860.1-0635-051A1-GM	6.35	8	52	126	124.9	84	1.1	140°
860.1-0640-033A0-GM	6.4	8	33.1	91	89.9	53	1.1	140°
860.1-0640-020A1-GM	6.4	8	20.3	79	77.8	34	1.2	140°
860.1-0640-033A1-GM	6.4	8	33.1	91	89.8	53	1.2	140°
860.1-0640-052A1-GM	6.4	8	52.3	126	124.9	84	1.1	140°
860.1-0650-020A0-GM	6.5	8	20.6	79	77.9	34	1.1	140°
860.1-0650-033A0-GM	6.5	8	33.6	91	89.9	53	1.1	140°
860.1-0650-020A1-GM	6.5	8	20.6	79	77.8	34	1.2	140°
860.1-0650-033A1-GM	6.5	8	33.6	91	89.8	53	1.2	140°
860.1-0650-053A1-GM	6.5	8	53.1	126	124.9	84	1.1	140°
860.1-0660-020A0-GM	6.6	8	21	79	77.9	34	1.1	140°
860.1-0660-020A1-GM	6.6	8	21	79	77.8	34	1.2	140°
860.1-0660-034A1-GM	6.6	8	34.2	91	89.8	53	1.2	140°
860.1-0660-054A1-GM	6.6	8	54	126	124.9	84	1.1	140°
860.1-0670-020A0-GM	6.7	8	21.3	79	77.9	34	1.1	140°
860.1-0670-034A0-GM	6.7	8	34.7	91	89.9	53	1.1	140°
860.1-0670-020A1-GM	6.7	8	21.3	79	77.8	34	1.2	140°
860.1-0670-034A1-GM	6.7	8	34.7	91	89.8	53	1.2	140°
860.1-0670-054A1-GM	6.7	8	54.8	126	124.9	84	1.1	140°
860.1-0675-020A1-GM	6.75	8	21.4	79	77.8	34	1.2	140°
860.1-0675-034A1-GM	6.75	8	35	91	89.8	53	1.2	140°
860.1-0680-020A0-GM	6.8	8	21.6	79	77.8	34	1.2	140°
860.1-0680-035A0-GM	6.8	8	35.2	91	89.8	53	1.2	140°
860.1-0680-020A1-GM	6.8	8	21.6	79	77.8	34	1.2	140°
860.1-0680-035A1-GM	6.8	8	35.2	91	89.8	53	1.2	140°
860.1-0680-055A1-GM	6.8	8	55.6	126	124.8	84	1.2	140°
860.1-0690-035A0-GM	6.9	8	35.7	91	89.8	53	1.2	140°
860.1-0690-020A1-GM	6.9	8	21.9	79	77.7	34	1.3	140°
860.1-0690-035A1-GM	6.9	8	35.7	91	89.7	53	1.3	140°
860.1-0690-056A1-GM	6.9	8	56.4	126	124.8	84	1.2	140°
860.1-0700-022A0-GM	7	8	22.2	79	77.8	41	1.2	140°
860.1-0700-036A0-GM	7	8	36.2	91	89.8	53	1.2	140°
860.1-0700-022A1-GM	7	8	22.2	79	77.7	41	1.3	140°
860.1-0700-036A1-GM	7	8	36.2	91	89.7	53	1.3	140°
860.1-0700-057A1-GM	7	8	57.2	126	124.8	84	1.2	140°
860.1-0710-022A0-GM	7.1	8	22.5	79	77.8	41	1.2	140°
860.1-0710-022A1-GM	7.1	8	22.5	79	77.7	41	1.3	140°
860.1-0710-036A1-GM	7.1	8	36.7	91	89.7	53	1.3	140°
860.1-0710-058A1-GM	7.1	8	58	126	124.8	84	1.2	140°
860.1-0714-022A1-GM	7.14	8	22.7	79	77.7	41	1.3	140°
860.1-0714-058A1-GM	7.14	8	58.4	126	124.8	84	1.2	140°
860.1-0720-022A0-GM	7.2	8	22.9	79	77.7	41	1.3	140°
860.1-0720-022A1-GM	7.2	8	22.9	79	77.7	41	1.3	140°
860.1-0720-037A1-GM	7.2	8	37.3	91	89.7	53	1.3	140°
860.1-0730-023A1-GM	7.3	8	23.2	79	77.7	41	1.3	140°
860.1-0730-037A1-GM	7.3	8	37.8	91	89.7	53	1.3	140°
860.1-0740-023A1-GM	7.4	8	23.5	79	77.7	41	1.3	140°
860.1-0740-038A1-GM	7.4	8	38.3	91	89.7	53	1.3	140°
860.1-0740-060A1-GM	7.4	8	60.5	126	124.7	84	1.3	140°
860.1-0750-038A0-GM	7.5	8	38.8	91	89.7	53	1.3	140°
860.1-0750-023A1-GM	7.5	8	23.8	79	77.6	41	1.4	140°
860.1-0750-038A1-GM	7.5	8	38.8	91	89.6	53	1.4	140°
860.1-0750-061A1-GM	7.5	8	61.3	126	124.7	84	1.3	140°
860.1-0754-023A1-GM	7.54	8	24	79	77.6	41	1.4	140°
860.1-0760-024A1-GM	7.6	8	24.1	79	77.6	41	1.4	140°
860.1-0760-038A1-GM	7.6	8	39.3	91	89.6	53	1.4	140°
860.1-0770-024A0-GM	7.7	8	24.5	79	77.6	41	1.4	140°
860.1-0770-024A1-GM	7.7	8	24.5	79	77.6	41	1.4	140°
860.1-0770-038A1-GM	7.7	8	39.9	91	89.6	53	1.4	140°
860.1-0770-063A1-GM	7.7	8	63	126	124.7	84	1.3	140°
860.1-0780-024A0-GM	7.8	8	24.8	79	77.6	41	1.4	140°
860.1-0780-024A1-GM	7.8	8	24.8	79	77.6	41	1.4	140°
860.1-0780-038A1-GM	7.8	8	40.4	91	89.6	53	1.4	140°
860.1-0780-063A1-GM	7.8	8	63.8	126	124.7	84	1.3	140°
860.1-0790-025A1-GM	7.9	8	25.1	79	77.6	41	1.4	140°
860.1-0790-064A1-GM	7.9	8	64.6	126	124.6	84	1.4	140°
860.1-0794-025A1-GM	7.94	8	25.2	79	77.6	41	1.4	140°
860.1-0794-038A1-GM	7.94	8	41.1	91	89.6	53	1.4	140°
860.1-0794-064A1-GM	7.94	8	65	126	124.6	84	1.4	140°
860.1-0800-025A0-GM	8	8	25.4	79	77.5	41	1.5	140°
860.1-0800-038A0-GM	8	8	41.4	91	89.6	53	1.4	140°
860.1-0800-025A1-GM	8	8	25.4	79	77.5	41	1.5	140°
860.1-0800-038A1-GM	8	8	41.4	91	89.5	53	1.5	140°
860.1-0800-065A1-GM	8	8	65.4	126	124.6	84	1.4	140°
860.1-0810-025A0-GM	8.1	10	25.7	89	87.5	47	1.5	140°
860.1-0810-025A1-GM	8.1	10	25.7	89	87.5	47	1.5	140°
860.1-0810-041A1-GM	8.1	10	42	103	101.5	61	1.5	140°
860.1-0810-066A1-GM	8.1	10	66.2	152	150.6	106	1.4	140°
860.1-0820-026A0-GM	8.2	10	26	89	87.5	47	1.5	140°
860.1-0820-026A1-GM	8.2	10	26	89	87.5	47	1.5	140°
860.1-0820-042A1-GM	8.2	10	42.4	103	101.5	61	1.5	140°
860.1-0820-067A1-GM	8.2	10	67	152	150.6	106	1.4	140°
860.1-0830-026A0-GM	8.3	10	26.4	89	87.5	47	1.5	140°
860.1-0830-043A0-GM	8.3	10	43	103	101.6	61	1.4	140°
860.1-0830-026A1-GM	8.3	10	26.4	89	87.5	47	1.5	140°
860.1-0830-043A1-GM	8.3	10	43.3	103	101.5	61	1.5	140°
860.1-0830-067A1-GM	8.3	10	67.9	152	150.6	106	1.4	140°
860.1-0840-026A0-GM	8.4	10	26.7	89	87.5	47	1.5	140°
860.1-0840-026A1-GM	8.4	10	26.7	89	87.5	47	1.5	140°
860.1-0840-043A1-GM	8.4	10	43.5	103	101.5	61	1.5	140°
860.1-0850-027A0-GM	8.5	10	27	89	87.5	47	1.5	140°
860.1-0850-044A0-GM	8.5	10	44	103	101.5	61	1.5	140°
860.1-0850-027A1-GM	8.5	10	27	89	87.5	47	1.5	140°
860.1-0850-044A1-GM	8.5	10	44	103	101.5	61	1.5	140°
860.1-0850-069A1-GM	8.5	10	69.5	152	150.5	106	1.5	140°
860.1-0860-027A0-GM	8.6	10	27.3	89	87.4	47	1.6	140°
860.1-0860-044A0-GM	8.6	10	44.5	103	101.4	61	1.6	140°
860.1-0860-027A1-GM	8.6	10	27.3	89	87.4	47	1.6	140°
860.1-0860-044A1-GM	8.6	10	44.5	103	101.4	61	1.6	140°
860.1-0860-070A1-GM	8.6	10	70.3	152	150.5	106	1.5	140°
860.1-0870-027A0-GM	8.7	10	27.6	89	87.4	47	1.6	140°
860.1-0870-044A0-GM	8.7	10	45	103	101.4	61	1.6	140°
860.1-0870-027A1-GM	8.7	10	27.6	89	87.4	47	1.6	140°
860.1-0870-044A1-GM	8.7	10	45	103	101.4	61	1.6	140°
860.1-0870-071A1-GM	8.7	10	71.1	152	150.5	106	1.5	140°
860.1-0873-027A1-GM	8.73	10	27.7	89	87.4	47	1.6	140°
860.1-0873-071A1-GM	8.73	10	71.4	152	150.4	106	1.6	140°
860.1-0880-028A0-GM	8.8	10	28	89	87.4	47	1.6	140°
860.1-0880-044A0-GM	8.8	10	45.6	103	101.4	61	1.6	140°
860.1-0880-028A1-GM	8.8	10	28	89	87.4	47	1.6	140°
860.1-0880-044A1-GM	8.8	10	45.6	103	101.4	61	1.6	140°
860.1-0890-028A1-GM	8.9	10	28.3	89	87.4	47	1.6	140°
860.1-0900-028A0-GM	9	10	28.6	89	87.4	47	1.6	140°
860.1-0900-044A0-GM	9	10	46.6	103	101.4	61	1.6	140°
860.1-0900-028A1-GM	9	10	28.6	89	87.4	47	1.6	140°
860.1-0900-044A1-GM	9	10	46.6	103	101.4	61	1.6	140°
860.1-0900-073A1-GM	9	10	73.6	152	150.4	106	1.6	140°
860.1-0913-029A1-GM	9.13	10	29	89	87.3	47	1.7	140°
860.1-0913-074A1-GM	9.13	10	74.7	152	150.3	106	1.7	140°
860.1-0920-029A1-GM	9.2	10	29.2	89	87.3	47	1.7	140°
860.1-0930-029A0-GM	9.3	10	29.5	89	87.3	47	1.7	140°
860.1-0930-029A1-GM	9.3	10	29.5	89	87.3	47	1.7	140°
860.1-0930-044A1-GM	9.3	10	49	103	101.3	61	1.7	140°
860.1-0940-044A1-GM	9.4	10	49	103	101.3	61	1.7	140°
860.1-0940-076A1-GM	9.4	10	76.9	152	150.3	106	1.7	140°
860.1-0950-030A0-GM	9.5	10	30.2	89	87.3	47	1.7	140°
860.1-0950-044A0-GM	9.5	10	49	103	101.3	61	1.7	140°
860.1-0950-030A1-GM	9.5	10	30.2	89	87.3	47	1.7	140°
860.1-0950-044A1-GM	9.5	10	49	103	101.3	61	1.7	140°
860.1-0950-077A1-GM	9.5	10	77.7	152	150.3	106	1.7	140°
860.1-0952-030A1-GM	9.52	10	30.2	89	87.3	47	1.7	140°
860.1-0952-044A1-GM	9.52	10	49	103	101.3	61	1.7	140°
860.1-0952-077A1-GM	9.52	10	77.8	152	150.3	106	1.7	140°
860.1-0960-030A1-GM	9.6	10	30.5	89	87.3	47	1.7	140°
860.1-0960-044A1-GM	9.6	10	49	103	101.3	61	1.7	140°
860.1-0970-030A1-GM	9.7	10	30.8	89	87.2	47	1.8	140°
860.1-0970-044A1-GM	9.7	10	49	103	101.2	61	1.8	140°
860.1-0970-079A1-GM	9.7	10	79.3	152	150.2	106	1.8	140°
860.1-0980-030A0-GM	9.8	10	31.1	89	87.2	47	1.8	140°
860.1-0980-030A1-GM	9.8	10	31.1	89	87.2	47	1.8	140°
860.1-0980-044A1-GM	9.8	10	49	103	101.2	61	1.8	140°
860.1-0980-080A1-GM	9.8	10	80.1	152	150.2	106	1.8	140°
860.1-0990-029A1-GM	9.9	10	31.5	89	87.2	47	1.8	140°
860.1-0990-043A1-GM	9.9	10	49	103	101.2	61	1.8	140°
860.1-0992-029A1-GM	9.92	10	31.5	89	87.2	47	1.8	140°
860.1-0992-081A1-GM	9.92	10	81.1	152	150.2	106	1.8	140°
860.1-1000-029A0-GM	10	10	31.8	89	87.2	47	1.8	140°
860.1-1000-043A0-GM	10	10	50	103	101.2	61	1.8	140°
860.1-1000-029A1-GM	10	10	31.8	89	87.2	47	1.8	140°
860.1-1000-043A1-GM	10	10	50	103	101.2	61	1.8	140°
860.1-1000-081A1-GM	10	10	81.8	152	150.2	106	1.8	140°
860.1-1010-032A1-GM	10.1	12	32.1	89	87.2	55	1.8	140°
860.1-1010-052A1-GM	10.1	12	52.3	103	101.2	71	1.8	140°
860.1-1010-082A1-GM	10.1	12	82.6	180	150.2	128	1.8	140°
860.1-1020-032A0-GM	10.2	12	32.4	102	100.1	55	1.9	140°
860.1-1020-052A0-GM	10.2	12	52.8	118	116.1	71	1.9	140°
860.1-1020-032A1-GM	10.2	12	32.4	102	100.1	55	1.9	140°
860.1-1020-052A1-GM	10.2	12	52.8	118	116.1	71	1.9	140°
860.1-1020-083A1-GM	10.2	12	83.4	180	178.1	128	1.9	140°
860.1-1030-052A0-GM	10.3	12	53.3	118	116.1	71	1.9	140°
860.1-1030-032A1-GM	10.3	12	32.7	102	100.1	55	1.9	140°
860.1-1030-052A1-GM	10.3	12	53.3	118	116.1	71	1.9	140°
860.1-1030-084A1-GM	10.3	12	84.2	180	178.1	128	1.9	140°
860.1-1032-032A1-GM	10.32	12	32.8	102	100.1	55	1.9	140°
860.1-1032-052A1-GM	10.32	12	53.4	118	116.1	71	1.9	140°
860.1-1040-033A0-GM	10.4	12	33	102	100.1	55	1.9	140°
860.1-1040-052A0-GM	10.4	12	53.8	118	116.1	71	1.9	140°
860.1-1040-033A1-GM	10.4	12	33	102	100.1	55	1.9	140°
860.1-1040-052A1-GM	10.4	12	53.8	118	116.1	71	1.9	140°
860.1-1050-033A0-GM	10.5	12	33.4	102	100.1	55	1.9	140°
860.1-1050-052A0-GM	10.5	12	54.4	118	116.1	71	1.9	140°
860.1-1050-033A1-GM	10.5	12	33.4	102	100.1	55	1.9	140°
860.1-1050-052A1-GM	10.5	12	54.4	118	116.1	71	1.9	140°
860.1-1050-085A1-GM	10.5	12	85.9	180	178.1	128	1.9	140°
860.1-1060-033A1-GM	10.6	12	33.7	102	100.1	55	1.9	140°
860.1-1070-034A1-GM	10.7	12	34	102	100.1	55	1.9	140°
860.1-1070-052A1-GM	10.7	12	56	118	116.1	71	1.9	140°
860.1-1071-034A1-GM	10.71	12	34	102	100.1	55	1.9	140°
860.1-1071-052A1-GM	10.71	12	56	118	116.1	71	1.9	140°
860.1-1080-052A0-GM	10.8	12	56	118	116	71	2	140°
860.1-1080-034A1-GM	10.8	12	34.3	102	100	55	2	140°
860.1-1080-052A1-GM	10.8	12	56	118	116	71	2	140°
860.1-1080-088A1-GM	10.8	12	88.3	180	178	128	2	140°
860.1-1100-035A0-GM	11	12	35	102	100	55	2	140°
860.1-1100-052A0-GM	11	12	56	118	116	71	2	140°
860.1-1100-035A1-GM	11	12	35	102	100	55	2	140°
860.1-1100-052A1-GM	11	12	56	118	116	71	2	140°
860.1-1100-090A1-GM	11	12	90	180	178	128	2	140°
860.1-1110-035A1-GM	11.1	12	35.3	102	100	55	2	140°
860.1-1110-052A1-GM	11.1	12	56	118	116	71	2	140°
860.1-1110-090A1-GM	11.1	12	90.8	180	178	128	2	140°
860.1-1111-035A1-GM	11.11	12	35.3	102	100	55	2	140°
860.1-1111-052A1-GM	11.11	12	56	118	116	71	2	140°
860.1-1120-035A1-GM	11.2	12	35.6	102	100	55	2	140°
860.1-1120-052A1-GM	11.2	12	56	118	116	71	2	140°
860.1-1130-052A1-GM	11.3	12	56.5	118	115.9	71	2.1	140°
860.1-1150-035A1-GM	11.5	12	36.5	102	99.9	55	2.1	140°
860.1-1150-051A1-GM	11.5	12	56	118	115.9	71	2.1	140°
860.1-1150-094A1-GM	11.5	12	94	180	177.9	128	2.1	140°
860.1-1160-035A1-GM	11.6	12	36.9	102	99.9	55	2.1	140°
860.1-1170-035A1-GM	11.7	12	37.2	102	99.9	55	2.1	140°
860.1-1180-035A1-GM	11.8	12	37.5	102	99.9	55	2.1	140°
860.1-1180-051A1-GM	11.8	12	56	118	115.9	71	2.1	140°
860.1-1180-096A1-GM	11.8	12	96.5	180	177.9	128	2.1	140°
860.1-1190-051A1-GM	11.9	12	56	118	115.8	71	2.2	140°
860.1-1190-097A1-GM	11.9	12	97.3	180	177.8	128	2.2	140°
860.1-1200-035A0-GM	12	12	38.1	102	99.8	55	2.2	140°
860.1-1200-051A0-GM	12	12	56	118	115.8	71	2.2	140°
860.1-1200-035A1-GM	12	12	38.1	102	99.8	55	2.2	140°
860.1-1200-051A1-GM	12	12	56	118	115.8	71	2.2	140°
860.1-1200-098A1-GM	12	12	98.1	180	177.8	128	2.2	140°
860.1-1210-056A1-GM	12.1	14	60.5	118	115.8	77	2.2	140°
860.1-1220-038A1-GM	12.2	14	38.8	107	104.8	60	2.2	140°
860.1-1220-056A1-GM	12.2	14	61	124	121.8	77	2.2	140°
860.1-1230-039A1-GM	12.3	14	39.1	107	104.8	60	2.2	140°
860.1-1230-100A1-GM	12.3	14	100.6	202	199.8	151	2.2	140°
860.1-1240-039A1-GM	12.4	14	39.4	107	104.7	60	2.3	140°
860.1-1250-039A0-GM	12.5	14	39.7	107	104.7	60	2.3	140°
860.1-1250-039A1-GM	12.5	14	39.7	107	104.7	60	2.3	140°
860.1-1250-056A1-GM	12.5	14	62	124	121.7	77	2.3	140°
860.1-1250-102A1-GM	12.5	14	102.3	202	199.7	151	2.3	140°
860.1-1260-039A0-GM	12.6	14	40	107	104.7	60	2.3	140°
860.1-1270-039A1-GM	12.7	14	40.4	107	104.7	60	2.3	140°
860.1-1270-056A1-GM	12.7	14	60	124	121.7	77	2.3	140°
860.1-1270-103A1-GM	12.7	14	103.9	202	199.7	151	2.3	140°
860.1-1280-104A1-GM	12.8	14	104.7	202	199.7	151	2.3	140°
860.1-1300-038A0-GM	13	14	43	107	104.6	60	2.4	140°
860.1-1300-038A1-GM	13	14	43	107	104.6	60	2.4	140°
860.1-1300-055A1-GM	13	14	60	124	121.6	77	2.4	140°
860.1-1300-106A1-GM	13	14	106.3	202	199.6	151	2.4	140°
860.1-1310-055A1-GM	13.1	14	60	124	121.6	77	2.4	140°
860.1-1325-038A1-GM	13.25	14	43	107	104.6	60	2.4	140°
860.1-1330-036A1-GM	13.3	14	43	107	104.6	60	2.4	140°
860.1-1350-038A1-GM	13.5	14	43	107	104.5	60	2.5	140°
860.1-1350-055A1-GM	13.5	14	60	124	121.5	77	2.5	140°
860.1-1350-110A1-GM	13.5	14	110.4	202	199.5	151	2.5	140°
860.1-1375-038A1-GM	13.75	14	43	107	104.5	60	2.5	140°
860.1-1380-112A1-GM	13.8	14	112.9	202	199.5	151	2.5	140°
860.1-1400-038A0-GM	14	14	43	107	104.5	60	2.5	140°
860.1-1400-038A0-GM	14	14	60	124	121.5	77	2.5	140°
860.1-1400-038A1-GM	14	14	43	107	104.5	60	2.5	140°
860.1-1400-055A1-GM	14	14	60	124	121.5	77	2.5	140°
860.1-1400-114A1-GM	14	14	114.5	202	199.5	151	2.5	140°
860.1-1425-042A1-GM	14.25	16	45.3	115	112.4	65	2.6	140°
860.1-1425-060A1-GM	14.25	16	63.4	133	130.4	83	2.6	140°
860.1-1429-042A1-GM	14.29	16	45.4	115	112.4	65	2.6	140°
860.1-1450-042A1-GM	14.5	16	45.2	115	112.4	65	2.6	140°
860.1-1450-060A1-GM	14.5	16	63.2	133	130.4	83	2.6	140°
860.1-1500-041A1-GM	15	16	45	115	112.3	65	2.7	140°
860.1-1500-059A1-GM	15	16	63	133	130.3	83	2.7	140°
860.1-1550-041A1-GM	15.5	16	45	115	112.2	65	2.8	140°
860.1-1587-041A1-GM	15.87	16	45	115	112.1	65	2.9	140°
860.1-1587-059A1-GM	15.87	16	63	133	130.1	83	2.9	140°
860.1-1600-041A1-GM	16	16	48	115	112.1	65	2.9	140°
860.1-1600-059A1-GM	16	16	63	133	130.1	83	2.9	140°
860.1-1600-130A1-GM	16	16	130.9	227	224.1	172	2.9	140°

在 技术资料

# 内冷钨钢钻头阶梯钻头

452系列航空航天制造复合材料钻头

主要应用领域: 专为航空航天领域设计，用于在碳纤维增强复合材料（CFRP）及其与金属的叠层板材上，加工用于铆接和螺栓连接的高质量孔。典型零件: 机身、翼盒、安定翼、鼻锥、尾翼和整流罩等。
