860-SD系列3-16MM镍合金钻头

一款专为镍基耐热超级合金（HRSA）浅孔钻削而优化的整体硬质合金钻头。它通过S2BM 材质、优化的容屑槽槽型以及稳健的产品设计，旨在为该类难加工材料的钻孔提供稳定、可靠且可预测的解决方案。

2026年4月25日由

cuttingtools

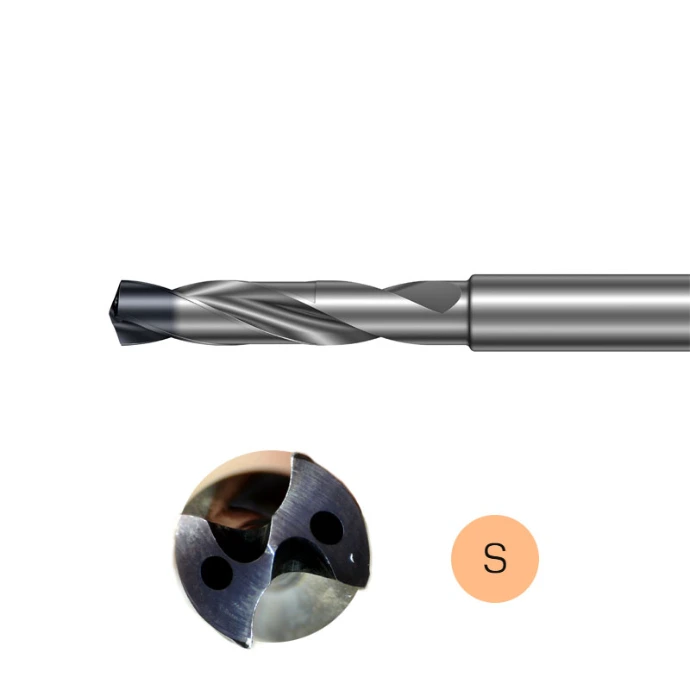

860-SD系列

整体硬质合金钻头

专为镍基耐热超级合金（HRSA）浅孔钻削而优化的整体硬质合金钻头

常规钻削倾斜进刀倾斜退刀

交叉孔凸/凹表面带倒角的孔

应用定位

主要应用：镍基耐热超级合金 (HRSA) 的浅孔钻削。
典型行业：航空航天、石油天然气以及能源行业。
典型零件：主要用于加工涡轮发动机叶片、整体叶盘 (Blisk)、叶片承力环、轴承体和阀体等关键部件。

产品规格

钻削深度:3 - 8 倍钻头直径 (3-8xD)
直径范围:3 – 16 mm
刀体公差:m7
可实现的孔公差:H8–H9
材质牌号:S2BM
涂层类型:多层 PVD 涂层
冷却方式:内冷

标准规格

几何结构	钻头类型	长径比	钻头直径mm (英寸)	冷却液	刀柄类型	材质
860.1-GM	标准单直径钻头	3‒8D	3-16mm(0.118‒0.63)	内部/外部	圆柱柄DIN 6535 HA	X1BM
860.2-GM	标准双直径钻头	3D	3-14mm(0.118‒0.55)	内	圆柱柄DIN 6535 HA	X1BM
860.1-SM	标准单直径钻头	2-5D	3-16mm(0.118‒0.63)	内	圆柱柄DIN 6535 HA	1210
860.1-SD	标准单直径钻头	3‒8D	3-16mm(0.118‒0.63)	内	圆柱柄DIN 6535 HA	S2BM
860.1-PM	标准单直径钻头	2–3D	3−20mm(0.118−0.787)	内部/外部	圆柱柄DIN 6535 HA	P1BM
860.1-PM	标准单直径钻头	4–5D	3−20mm(0.118−0.787)	内部/外部	圆柱柄DIN 6535 HA	P1BM
860.1-PM	标准单直径钻头	7–8D	3-16mm(0.118‒0.63)	内	圆柱柄DIN 6535 HA	P1BM
860.2-PM	阶梯和倒角钻	3D	3.35−17.50mm(0.132−0.689)	内	圆柱柄DIN 6535 HA	P1BM
860.1-NM	标准单直径钻头	3D, 8D	3−20mm(0.118−0.787)	内	圆柱柄DIN 6535 HA	H10F
860.1-MM	标准单直径钻头	3D	3−20mm(0.118−0.787)	内	圆柱柄DIN 6535 HA	M2BM
860.1-MM	标准单直径钻头	5D	3−20mm(0.118−0.787)	内	圆柱柄DIN 6535 HA	M2BM
860.1-MM	标准单直径钻头	8D	3-16mm(0.118‒0.63)	内	圆柱柄DIN 6535 HA	GC2214

860-SD高性能钻头专为 ISO S 材料开发，是该系列应对镍基合金、高温合金 (HRSA) 等难加工材料的专业选择。其核心使命是为航空航天、石油天然气等对加工过程安全性和零件质量有高要求的行业，提供值得信赖的钻孔解决方案。

核心技术：坚固、锋利、稳定

860-SD 的高性能是材质、涂层与几何设计协同作用的结果。

主动切屑管理槽型，专攻难加工材料：860-SD 的容屑槽专为镍基合金加工优化，配合先进的涂层后处理，能够有效控制长而韧的切屑，实现顺畅排屑，避免因切屑堵塞导致的刀具损伤。
S2BM 材质与涂层，提升耐磨性：采用超细晶粒硬质合金基体，提供了较高的强度，可抵抗 HRSA 加工时的机械应力。基体结合先进的多层 PVD 涂层和精密的涂层后处理，显著提高了刀具的耐热性和耐磨性，带来较长、较可预测的刀具寿命。

应用领域：聚焦高要求关键部件

860-SD 的性能使其适用于众多关键领域：

主要应用：镍基耐热超级合金 (HRSA) 的浅孔钻削。
典型行业：航空航天、石油天然气以及能源行业。
典型零件：涡轮发动机叶片、整体叶盘 (Blisk)、叶片承力环、轴承体和阀体等关键部件。

加工案例：对比数据

加工对象：发动机轴，材料为镍基合金 (Nickel-based alloy, IN-100)。
加工结果：
- 在严格的测试条件下，860-SD 成功完成了 36 个孔的加工。
- 相比之下，对比刀具 R846 仅完成了 24 个孔。
- 结果表明，860-SD 实现了 50% 的刀具寿命提升，且在加工稳定性和表面完整性方面均表现良好。

使用建议

加工前须知：建议使用高精度液压夹套，将钻头悬伸尽量缩短，以实现加工稳定性和孔质量。
冷却液使用：建议使用内冷，最低冷却液压力为 10 bar (145 psi)，以确保充分的冷却和排屑。

型号列表

860-PM

型号	切削直径DC	柄径DCON	有用长度LU	总长OAL	功能长度LF	容屑槽长度LCF	点长度PL	外刃顶角SIG
860.1-0300-009A1-SD S2BM	3	6	9.6	62	61.5	20	0.5	140°
860.1-0300-015A1-SD S2BM	3	6	15.6	66	65.5	28	0.5	140°
860.1-0300-024A1-SD S2BM	3	6	24.6	79	78.5	37	0.5	140°
860.1-0310-009A1-SD S2BM	3.1	6	9.9	62	61.4	20	0.6	140°
860.1-0310-016A1-SD S2BM	3.1	6	16.1	66	65.4	28	0.6	140°
860.1-0310-025A1-SD S2BM	3.1	6	25.4	79	78.4	37	0.6	140°
860.1-0317-010A1-SD S2BM	3.175	6	10.1	62	61.4	20	0.6	140°
860.1-0317-016A1-SD S2BM	3.175	6	16.4	66	65.4	28	0.6	140°
860.1-0317-025A1-SD S2BM	3.175	6	25.9	79	78.4	37	0.6	140°
860.1-0318-010A1-SD S2BM	3.18	6	10.1	62	61.4	20	0.6	140°
860.1-0318-016A1-SD S2BM	3.18	6	16.5	66	65.4	28	0.6	140°
860.1-0318-026A1-SD S2BM	3.18	6	26	79	78.4	37	0.6	140°
860.1-0320-010A1-SD S2BM	3.2	6	10.2	62	61.4	20	0.6	140°
860.1-0320-016A1-SD S2BM	3.2	6	16.6	66	65.4	28	0.6	140°
860.1-0320-026A1-SD S2BM	3.2	6	26.2	79	78.4	37	0.6	140°
860.1-0325-010A1-SD S2BM	3.25	6	10.3	62	61.4	20	0.6	140°
860.1-0325-016A1-SD S2BM	3.25	6	16.8	66	65.4	28	0.6	140°
860.1-0325-026A1-SD S2BM	3.25	6	26.6	79	78.4	37	0.6	140°
860.1-0330-010A1-SD S2BM	3.3	6	10.5	62	61.4	20	0.6	140°
860.1-0330-017A1-SD S2BM	3.3	6	17.1	66	65.4	28	0.6	140°
860.1-0330-027A1-SD S2BM	3.3	6	27	79	78.4	37	0.6	140°
860.1-0338-010A1-SD S2BM	3.38	6	10.8	62	61.4	20	0.6	140°
860.1-0338-017A1-SD S2BM	3.38	6	17.5	66	65.4	28	0.6	140°
860.1-0338-027A1-SD S2BM	3.38	6	27.7	79	78.4	37	0.6	140°
860.1-0340-010A1-SD S2BM	3.4	6	10.8	62	61.4	20	0.6	140°
860.1-0340-017A1-SD S2BM	3.4	6	17.6	66	65.4	28	0.6	140°
860.1-0340-027A1-SD S2BM	3.4	6	27.8	79	78.4	37	0.6	140°
860.1-0345-010A1-SD S2BM	3.45	6	11	62	61.4	20	0.6	140°
860.1-0345-017A1-SD S2BM	3.45	6	17.9	66	65.4	28	0.6	140°
860.1-0345-028A1-SD S2BM	3.45	6	28.2	79	78.4	37	0.6	140°
860.1-0350-011A1-SD S2BM	3.5	6	11.1	62	61.4	20	0.6	140°
860.1-0350-018A1-SD S2BM	3.5	6	18.1	66	65.4	28	0.6	140°
860.1-0350-028A1-SD S2BM	3.5	6	28.6	79	78.4	37	0.6	140°
860.1-0355-011A1-SD S2BM	3.55	6	11.3	62	61.4	20	0.6	140°
860.1-0355-018A1-SD S2BM	3.55	6	18.4	66	65.4	28	0.6	140°
860.1-0355-029A1-SD S2BM	3.55	6	29.1	79	78.4	37	0.6	140°
860.1-0357-011A1-SD S2BM	3.572	6	11.4	62	61.4	20	0.7	140°
860.1-0357-018A1-SD S2BM	3.572	6	18.5	66	65.4	28	0.7	140°
860.1-0357-029A1-SD S2BM	3.572	6	29.2	79	78.4	37	0.7	140°
860.1-0360-011A1-SD S2BM	3.6	6	11.5	62	61.3	20	0.7	140°
860.1-0360-018A1-SD S2BM	3.6	6	18.7	66	65.3	28	0.7	140°
860.1-0360-029A1-SD S2BM	3.6	6	29.5	79	78.3	37	0.7	140°
860.1-0370-011A1-SD S2BM	3.7	6	11.8	62	61.3	20	0.7	140°
860.1-0370-019A1-SD S2BM	3.7	6	19.2	66	65.3	28	0.7	140°
860.1-0370-030A1-SD S2BM	3.7	6	30.3	79	78.3	37	0.7	140°
860.1-0380-012A1-SD S2BM	3.8	6	12.1	66	65.3	24	0.7	140°
860.1-0380-019A1-SD S2BM	3.8	6	19.7	74	73.3	36	0.7	140°
860.1-0380-031A1-SD S2BM	3.8	6	31.1	90	89.3	48	0.7	140°
860.1-0390-012A1-SD S2BM	3.9	6	12.4	66	65.3	24	0.7	140°
860.1-0390-020A1-SD S2BM	3.9	6	20.2	74	73.3	36	0.7	140°
860.1-0390-031A1-SD S2BM	3.9	6	31.9	90	89.3	48	0.7	140°
860.1-0397-012A1-SD S2BM	3.969	6	12.6	66	65.3	24	0.7	140°
860.1-0397-020A1-SD S2BM	3.969	6	20.6	74	73.3	36	0.7	140°
860.1-0397-032A1-SD S2BM	3.969	6	32.5	90	89.3	48	0.7	140°
860.1-0400-012A1-SD S2BM	4	6	12.7	66	65.3	24	0.7	140°
860.1-0400-020A1-SD S2BM	4	6	20.7	74	73.3	36	0.7	140°
860.1-0400-032A1-SD S2BM	4	6	32.7	90	89.3	48	0.7	140°
860.1-0410-013A1-SD S2BM	4.1	6	13.1	66	65.3	24	0.7	140°
860.1-0410-021A1-SD S2BM	4.1	6	21.3	74	73.3	36	0.7	140°
860.1-0410-033A1-SD S2BM	4.1	6	33.6	90	89.3	48	0.7	140°
860.1-0415-013A1-SD S2BM	4.15	6	13.2	66	65.2	24	0.8	140°
860.1-0415-021A1-SD S2BM	4.15	6	21.5	74	73.2	36	0.8	140°
860.1-0415-033A1-SD S2BM	4.15	6	34	90	89.2	48	0.8	140°
860.1-0420-013A1-SD S2BM	4.2	6	13.4	66	65.2	24	0.8	140°
860.1-0420-021A1-SD S2BM	4.2	6	21.8	74	73.2	36	0.8	140°
860.1-0420-034A1-SD S2BM	4.2	6	34.4	90	89.2	48	0.8	140°
860.1-0430-013A1-SD S2BM	4.3	6	13.7	66	65.2	24	0.8	140°
860.1-0430-022A1-SD S2BM	4.3	6	22.3	74	73.2	36	0.8	140°
860.1-0430-035A1-SD S2BM	4.3	6	35.2	90	89.2	48	0.8	140°
860.1-0437-013A1-SD S2BM	4.366	6	13.9	66	65.2	24	0.8	140°
860.1-0437-022A1-SD S2BM	4.366	6	22.7	74	73.2	36	0.8	140°
860.1-0437-035A1-SD S2BM	4.366	6	35.8	90	89.2	48	0.8	140°
860.1-0440-014A1-SD S2BM	4.4	6	14	66	65.2	24	0.8	140°
860.1-0440-022A1-SD S2BM	4.4	6	22.8	74	73.2	36	0.8	140°
860.1-0440-036A1-SD S2BM	4.4	6	36	90	89.2	48	0.8	140°
860.1-0450-014A1-SD S2BM	4.5	6	14.3	66	65.2	24	0.8	140°
860.1-0450-023A1-SD S2BM	4.5	6	23.3	74	73.2	36	0.8	140°
860.1-0450-036A1-SD S2BM	4.5	6	36.8	90	89.2	48	0.8	140°
860.1-0455-014A1-SD S2BM	4.55	6	14.5	66	65.2	24	0.8	140°
860.1-0455-023A1-SD S2BM	4.55	6	23.6	74	73.2	36	0.8	140°
860.1-0455-037A1-SD S2BM	4.55	6	37.2	90	89.2	48	0.8	140°
860.1-0460-014A1-SD S2BM	4.6	6	14.6	66	65.2	24	0.8	140°
860.1-0460-023A1-SD S2BM	4.6	6	23.8	74	73.2	36	0.8	140°
860.1-0460-037A1-SD S2BM	4.6	6	37.6	90	89.2	48	0.8	140°
860.1-0465-014A1-SD S2BM	4.65	6	14.8	66	65.2	24	0.8	140°
860.1-0465-024A1-SD S2BM	4.65	6	24.1	74	73.2	36	0.8	140°
860.1-0465-038A1-SD S2BM	4.65	6	38.1	90	89.2	48	0.8	140°
860.1-0470-014A1-SD S2BM	4.7	6	15	66	65.1	24	0.9	140°
860.1-0470-024A1-SD S2BM	4.7	6	24.4	74	73.1	36	0.9	140°
860.1-0470-038A1-SD S2BM	4.7	6	38.5	90	89.1	48	0.9	140°
860.1-0476-015A1-SD S2BM	4.763	6	15.2	66	65.1	28	0.9	140°
860.1-0476-024A1-SD S2BM	4.763	6	24.7	82	81.1	44	0.9	140°
860.1-0476-038A1-SD S2BM	4.763	6	39	104	103.1	62	0.9	140°
860.1-0480-015A1-SD S2BM	4.8	6	15.3	66	65.1	28	0.9	140°
860.1-0480-024A1-SD S2BM	4.8	6	24.9	82	81.1	44	0.9	140°
860.1-0480-039A1-SD S2BM	4.8	6	39.3	104	103.1	62	0.9	140°
860.1-0490-015A1-SD S2BM	4.9	6	15.6	66	65.1	28	0.9	140°
860.1-0490-025A1-SD S2BM	4.9	6	25.4	82	81.1	44	0.9	140°
860.1-0490-040A1-SD S2BM	4.9	6	40.1	104	103.1	62	0.9	140°
860.1-0500-015A1-SD S2BM	5	6	15.9	66	65.1	28	0.9	140°
860.1-0500-025A1-SD S2BM	5	6	25.9	82	81.1	44	0.9	140°
860.1-0500-040A1-SD S2BM	5	6	40.9	104	103.1	62	0.9	140°
860.1-0510-016A1-SD S2BM	5.1	6	16.2	66	65.1	28	0.9	140°
860.1-0510-026A1-SD S2BM	5.1	6	26.4	82	81.1	44	0.9	140°
860.1-0510-041A1-SD S2BM	5.1	6	41.7	104	103.1	62	0.9	140°
860.1-0516-016A1-SD S2BM	5.159	6	16.4	66	65.1	28	0.9	140°
860.1-0516-026A1-SD S2BM	5.159	6	26.7	82	81.1	44	0.9	140°
860.1-0516-042A1-SD S2BM	5.159	6	42.2	104	103.1	62	0.9	140°
860.1-0520-016A1-SD S2BM	5.2	6	16.6	66	65.1	28	0.9	140°
860.1-0520-026A1-SD S2BM	5.2	6	27	82	81.1	44	0.9	140°
860.1-0520-042A1-SD S2BM	5.2	6	42.6	104	103.1	62	0.9	140°
860.1-0525-016A1-SD S2BM	5.25	6	16.7	66	65	28	1	140°
860.1-0525-027A1-SD S2BM	5.25	6	27.2	82	81	44	1	140°
860.1-0525-042A1-SD S2BM	5.25	6	43	104	103	62	1	140°
860.1-0530-016A1-SD S2BM	5.3	6	16.9	66	65	28	1	140°
860.1-0530-027A1-SD S2BM	5.3	6	27.5	82	81	44	1	140°
860.1-0530-043A1-SD S2BM	5.3	6	43.4	104	103	62	1	140°
860.1-0540-017A1-SD S2BM	5.4	6	17.2	66	65	28	1	140°
860.1-0540-027A1-SD S2BM	5.4	6	28	82	81	44	1	140°
860.1-0540-044A1-SD S2BM	5.4	6	44.2	104	103	62	1	140°
860.1-0550-017A1-SD S2BM	5.5	6	17.5	66	65	28	1	140°
860.1-0550-028A1-SD S2BM	5.5	6	28.5	82	81	44	1	140°
860.1-0550-045A1-SD S2BM	5.5	6	45	104	103	62	1	140°
860.1-0555-017A1-SD S2BM	5.55	6	17.7	66	65	28	1	140°
860.1-0555-028A1-SD S2BM	5.55	6	28.8	82	81	44	1	140°
860.1-0555-045A1-SD S2BM	5.55	6	45.4	104	103	62	1	140°
860.1-0556-017A1-SD S2BM	5.556	6	17.7	66	65	28	1	140°
860.1-0556-028A1-SD S2BM	5.556	6	28.8	82	81	44	1	140°
860.1-0556-045A1-SD S2BM	5.556	6	45.5	104	103	62	1	140°
860.1-0560-017A1-SD S2BM	5.6	6	17.8	66	65	28	1	140°
860.1-0560-029A1-SD S2BM	5.6	6	29	82	81	44	1	140°
860.1-0560-045A1-SD S2BM	5.6	6	45.8	104	103	62	1	140°
860.1-0570-018A1-SD S2BM	5.7	6	18.1	66	65	28	1	140°
860.1-0570-029A1-SD S2BM	5.7	6	29.5	82	81	44	1	140°
860.1-0570-046A1-SD S2BM	5.7	6	46.6	104	103	62	1	140°
860.1-0580-018A1-SD S2BM	5.8	6	18.5	66	64.9	28	1.1	140°
860.1-0580-030A1-SD S2BM	5.8	6	30.1	82	80.9	44	1.1	140°
860.1-0580-047A1-SD S2BM	5.8	6	47.5	104	102.9	62	1.1	140°
860.1-0590-018A1-SD S2BM	5.9	6	18.8	66	64.9	28	1.1	140°
860.1-0590-030A1-SD S2BM	5.9	6	30.6	82	80.9	44	1.1	140°
860.1-0590-048A1-SD S2BM	5.9	6	48.3	104	102.9	62	1.1	140°
860.1-0595-018A1-SD S2BM	5.953	6	18.9	66	64.9	28	1.1	140°
860.1-0595-030A1-SD S2BM	5.953	6	30.8	82	80.9	44	1.1	140°
860.1-0595-048A1-SD S2BM	5.953	6	48.7	104	102.9	62	1.1	140°
860.1-0600-019A1-SD S2BM	6	6	19.1	66	64.9	28	1.1	140°
860.1-0600-031A1-SD S2BM	6	6	31.1	82	80.9	44	1.1	140°
860.1-0600-049A1-SD S2BM	6	6	49.1	104	102.9	62	1.1	140°
860.1-0610-019A1-SD S2BM	6.1	8	19.4	79	77.9	34	1.1	140°
860.1-0610-031A1-SD S2BM	6.1	8	31.6	91	89.9	53	1.1	140°
860.1-0610-049A1-SD S2BM	6.1	8	49.9	126	124.9	84	1.1	140°
860.1-0620-019A1-SD S2BM	6.2	8	19.7	79	77.9	34	1.1	140°
860.1-0620-032A1-SD S2BM	6.2	8	32.1	91	89.9	53	1.1	140°
860.1-0620-050A1-SD S2BM	6.2	8	50.7	126	124.9	84	1.1	140°
860.1-0630-020A1-SD S2BM	6.3	8	20.1	79	77.9	34	1.1	140°
860.1-0630-032A1-SD S2BM	6.3	8	32.7	91	89.9	53	1.1	140°
860.1-0630-051A1-SD S2BM	6.3	8	51.6	126	124.9	84	1.1	140°
860.1-0635-020A1-SD S2BM	6.35	8	20.2	79	77.8	34	1.2	140°
860.1-0635-032A1-SD S2BM	6.35	8	32.9	91	89.8	53	1.2	140°
860.1-0635-051A1-SD S2BM	6.35	8	52	126	124.8	84	1.2	140°
860.1-0640-020A1-SD S2BM	6.4	8	20.4	79	77.8	34	1.2	140°
860.1-0640-033A1-SD S2BM	6.4	8	33.2	91	89.8	53	1.2	140°
860.1-0640-052A1-SD S2BM	6.4	8	52.4	126	124.8	84	1.2	140°
860.1-0650-020A1-SD S2BM	6.5	8	20.7	79	77.8	34	1.2	140°
860.1-0650-033A1-SD S2BM	6.5	8	33.7	91	89.8	53	1.2	140°
860.1-0650-053A1-SD S2BM	6.5	8	53.2	126	124.8	84	1.2	140°
860.1-0660-021A1-SD S2BM	6.6	8	21	79	77.8	34	1.2	140°
860.1-0660-034A1-SD S2BM	6.6	8	34.2	91	89.8	53	1.2	140°
860.1-0660-054A1-SD S2BM	6.6	8	54	126	124.8	84	1.2	140°
860.1-0670-021A1-SD S2BM	6.7	8	21.3	79	77.8	34	1.2	140°
860.1-0670-034A1-SD S2BM	6.7	8	34.7	91	89.8	53	1.2	140°
860.1-0670-054A1-SD S2BM	6.7	8	54.8	126	124.8	84	1.2	140°
860.1-0675-021A1-SD S2BM	6.747	8	21.5	79	77.8	34	1.2	140°
860.1-0675-034A1-SD S2BM	6.747	8	35	91	89.8	53	1.2	140°
860.1-0675-055A1-SD S2BM	6.747	8	55.2	126	124.8	84	1.2	140°
860.1-0680-021A1-SD S2BM	6.8	8	21.6	79	77.8	34	1.2	140°
860.1-0680-035A1-SD S2BM	6.8	8	35.2	91	89.8	53	1.2	140°
860.1-0680-055A1-SD S2BM	6.8	8	55.6	126	124.8	84	1.2	140°
860.1-0690-021A1-SD S2BM	6.9	8	22	79	77.7	34	1.3	140°
860.1-0690-035A1-SD S2BM	6.9	8	35.8	91	89.7	53	1.3	140°
860.1-0690-056A1-SD S2BM	6.9	8	56.5	126	124.7	84	1.3	140°
860.1-0700-022A1-SD S2BM	7	8	22.3	79	77.7	34	1.3	140°
860.1-0700-036A1-SD S2BM	7	8	36.3	91	89.7	53	1.3	140°
860.1-0700-057A1-SD S2BM	7	8	57.3	126	124.7	84	1.3	140°
860.1-0710-022A1-SD S2BM	7.1	8	22.6	79	77.7	41	1.3	140°
860.1-0710-036A1-SD S2BM	7.1	8	36.8	91	89.7	53	1.3	140°
860.1-0710-058A1-SD S2BM	7.1	8	58.1	126	124.7	84	1.3	140°
860.1-0714-022A1-SD S2BM	7.144	8	22.7	79	77.7	41	1.3	140°
860.1-0714-036A1-SD S2BM	7.144	8	37	91	89.7	53	1.3	140°
860.1-0714-058A1-SD S2BM	7.144	8	58.4	126	124.7	84	1.3	140°
860.1-0720-022A1-SD S2BM	7.2	8	22.9	79	77.7	41	1.3	140°
860.1-0720-037A1-SD S2BM	7.2	8	37.3	91	89.7	53	1.3	140°
860.1-0720-058A1-SD S2BM	7.2	8	58.9	126	124.7	84	1.3	140°
860.1-0730-023A1-SD S2BM	7.3	8	23.2	79	77.7	41	1.3	140°
860.1-0730-037A1-SD S2BM	7.3	8	37.8	91	89.7	53	1.3	140°
860.1-0730-059A1-SD S2BM	7.3	8	59.7	126	124.7	84	1.3	140°
860.1-0740-023A1-SD S2BM	7.4	8	23.6	79	77.7	41	1.3	140°
860.1-0740-038A1-SD S2BM	7.4	8	38.4	91	89.7	53	1.3	140°
860.1-0740-060A1-SD S2BM	7.4	8	60.6	126	124.7	84	1.3	140°
860.1-0750-023A1-SD S2BM	7.5	8	23.9	79	77.6	41	1.4	140°
860.1-0750-038A1-SD S2BM	7.5	8	38.9	91	89.6	53	1.4	140°
860.1-0750-061A1-SD S2BM	7.5	8	61.4	126	124.6	84	1.4	140°
860.1-0754-023A1-SD S2BM	7.541	8	24	79	77.6	41	1.4	140°
860.1-0754-039A1-SD S2BM	7.541	8	39.1	91	89.6	53	1.4	140°
860.1-0754-061A1-SD S2BM	7.541	8	61.7	126	124.6	84	1.4	140°
860.1-0760-024A1-SD S2BM	7.6	8	24.2	79	77.6	41	1.4	140°
860.1-0760-039A1-SD S2BM	7.6	8	39.4	91	89.6	53	1.4	140°
860.1-0760-062A1-SD S2BM	7.6	8	62.2	126	124.6	84	1.4	140°
860.1-0770-024A1-SD S2BM	7.7	8	24.5	79	77.6	41	1.4	140°
860.1-0770-039A1-SD S2BM	7.7	8	39.9	91	89.6	53	1.4	140°
860.1-0770-063A1-SD S2BM	7.7	8	63	126	124.6	84	1.4	140°
860.1-0780-024A1-SD S2BM	7.8	8	24.8	79	77.6	41	1.4	140°
860.1-0780-040A1-SD S2BM	7.8	8	40.4	91	89.6	53	1.4	140°
860.1-0780-063A1-SD S2BM	7.8	8	63.8	126	124.6	84	1.4	140°
860.1-0790-025A1-SD S2BM	7.9	8	25.1	79	77.6	41	1.4	140°
860.1-0790-040A1-SD S2BM	7.9	8	40.9	91	89.6	53	1.4	140°
860.1-0790-064A1-SD S2BM	7.9	8	64.6	126	124.6	84	1.4	140°
860.1-0794-025A1-SD S2BM	7.938	8	25.3	79	77.6	41	1.4	140°
860.1-0794-041A1-SD S2BM	7.938	8	41.1	91	89.6	53	1.4	140°
860.1-0794-064A1-SD S2BM	7.938	8	65	126	124.6	84	1.4	140°
860.1-0800-025A1-SD S2BM	8	8	25.5	79	77.5	41	1.5	140°
860.1-0800-041A1-SD S2BM	8	8	41.5	91	89.5	53	1.5	140°
860.1-0800-065A1-SD S2BM	8	8	65.5	126	124.5	84	1.5	140°
860.1-0810-025A1-SD S2BM	8.1	10	25.8	89	87.5	47	1.5	140°
860.1-0810-041A1-SD S2BM	8.1	10	42	103	101.5	61	1.5	140°
860.1-0810-066A1-SD S2BM	8.1	10	66.3	152	150.5	106	1.5	140°
860.1-0815-025A1-SD S2BM	8.15	10	25.9	89	87.5	47	1.5	140°
860.1-0815-042A1-SD S2BM	8.15	10	42.2	103	101.5	61	1.5	140°
860.1-0815-066A1-SD S2BM	8.15	10	66.7	152	150.5	106	1.5	140°
860.1-0820-026A1-SD S2BM	8.2	10	26.1	89	87.5	47	1.5	140°
860.1-0820-042A1-SD S2BM	8.2	10	42.5	103	101.5	61	1.5	140°
860.1-0820-067A1-SD S2BM	8.2	10	67.1	152	150.5	106	1.5	140°
860.1-0830-026A1-SD S2BM	8.3	10	26.4	89	87.5	47	1.5	140°
860.1-0830-043A1-SD S2BM	8.3	10	43	103	101.5	61	1.5	140°
860.1-0830-067A1-SD S2BM	8.3	10	67.9	152	150.5	106	1.5	140°
860.1-0833-026A1-SD S2BM	8.334	10	26.5	89	87.5	47	1.5	140°
860.1-0833-043A1-SD S2BM	8.334	10	43.2	103	101.5	61	1.5	140°
860.1-0833-068A1-SD S2BM	8.334	10	68.2	152	150.5	106	1.5	140°
860.1-0840-026A1-SD S2BM	8.4	10	26.7	89	87.5	47	1.5	140°
860.1-0840-043A1-SD S2BM	8.4	10	43.5	103	101.5	61	1.5	140°
860.1-0840-068A1-SD S2BM	8.4	10	68.7	152	150.5	106	1.5	140°
860.1-0845-026A1-SD S2BM	8.45	10	26.9	89	87.5	47	1.5	140°
860.1-0845-043A1-SD S2BM	8.45	10	43.8	103	101.5	61	1.5	140°
860.1-0845-069A1-SD S2BM	8.45	10	69.1	152	150.5	106	1.5	140°
860.1-0850-027A1-SD S2BM	8.5	10	27.1	89	87.5	47	1.5	140°
860.1-0850-044A1-SD S2BM	8.5	10	44.1	103	101.5	61	1.5	140°
860.1-0850-069A1-SD S2BM	8.5	10	69.6	152	150.5	106	1.5	140°
860.1-0860-027A1-SD S2BM	8.6	10	27.4	89	87.4	47	1.6	140°
860.1-0860-044A1-SD S2BM	8.6	10	44.6	103	101.4	61	1.6	140°
860.1-0860-070A1-SD S2BM	8.6	10	70.4	152	150.4	106	1.6	140°
860.1-0865-027A1-SD S2BM	8.65	10	27.5	89	87.4	47	1.6	140°
860.1-0865-044A1-SD S2BM	8.65	10	44.8	103	101.4	61	1.6	140°
860.1-0865-070A1-SD S2BM	8.65	10	70.8	152	150.4	106	1.6	140°
860.1-0870-027A1-SD S2BM	8.7	10	27.7	89	87.4	47	1.6	140°
860.1-0870-045A1-SD S2BM	8.7	10	45.1	103	101.4	61	1.6	140°
860.1-0870-071A1-SD S2BM	8.7	10	71.2	152	150.4	106	1.6	140°
860.1-0873-027A1-SD S2BM	8.731	10	27.8	89	87.4	47	1.6	140°
860.1-0873-045A1-SD S2BM	8.731	10	45.2	103	101.4	61	1.6	140°
860.1-0873-071A1-SD S2BM	8.731	10	71.4	152	150.4	106	1.6	140°
860.1-0880-028A1-SD S2BM	8.8	10	28	89	87.4	47	1.6	140°
860.1-0880-045A1-SD S2BM	8.8	10	45.6	103	101.4	61	1.6	140°
860.1-0880-072A1-SD S2BM	8.8	10	72	152	150.4	106	1.6	140°
860.1-0885-028A1-SD S2BM	8.85	10	28.2	89	87.4	47	1.6	140°
860.1-0885-045A1-SD S2BM	8.85	10	45.9	103	101.4	61	1.6	140°
860.1-0885-072A1-SD S2BM	8.85	10	72.4	152	150.4	106	1.6	140°
860.1-0890-028A1-SD S2BM	8.9	10	28.3	89	87.4	47	1.6	140°
860.1-0890-046A1-SD S2BM	8.9	10	46.1	103	101.4	61	1.6	140°
860.1-0890-072A1-SD S2BM	8.9	10	72.8	152	150.4	106	1.6	140°
860.1-0900-028A1-SD S2BM	9	10	28.6	89	87.4	47	1.6	140°
860.1-0900-046A1-SD S2BM	9	10	46.6	103	101.4	61	1.6	140°
860.1-0900-073A1-SD S2BM	9	10	73.6	152	150.4	106	1.6	140°
860.1-0910-028A1-SD S2BM	9.1	10	29	89	87.3	47	1.7	140°
860.1-0910-047A1-SD S2BM	9.1	10	47.2	103	101.3	61	1.7	140°
860.1-0910-074A1-SD S2BM	9.1	10	74.5	152	150.3	106	1.7	140°
860.1-0913-029A1-SD S2BM	9.128	10	29.1	89	87.3	47	1.7	140°
860.1-0913-047A1-SD S2BM	9.128	10	47.3	103	101.3	61	1.7	140°
860.1-0913-074A1-SD S2BM	9.128	10	74.7	152	150.3	106	1.7	140°
860.1-0920-029A1-SD S2BM	9.2	10	29.3	89	87.3	47	1.7	140°
860.1-0920-047A1-SD S2BM	9.2	10	47.5	103	101.3	61	1.7	140°
860.1-0920-075A1-SD S2BM	9.2	10	75.3	152	150.3	106	1.7	140°
860.1-0930-029A1-SD S2BM	9.3	10	29.6	89	87.3	47	1.7	140°
860.1-0930-047A1-SD S2BM	9.3	10	47.4	103	101.3	61	1.7	140°
860.1-0930-076A1-SD S2BM	9.3	10	76.1	152	150.3	106	1.7	140°
860.1-0940-029A1-SD S2BM	9.4	10	29.9	89	87.3	47	1.7	140°
860.1-0940-047A1-SD S2BM	9.4	10	47.4	103	101.3	61	1.7	140°
860.1-0940-076A1-SD S2BM	9.4	10	76.9	152	150.3	106	1.7	140°
860.1-0950-030A1-SD S2BM	9.5	10	30.2	89	87.3	47	1.7	140°
860.1-0950-047A1-SD S2BM	9.5	10	47.3	103	101.3	61	1.7	140°
860.1-0950-077A1-SD S2BM	9.5	10	77.7	152	150.3	106	1.7	140°
860.1-0952-030A1-SD S2BM	9.52	10	30.3	89	87.3	47	1.7	140°
860.1-0952-047A1-SD S2BM	9.52	10	47.3	103	101.3	61	1.7	140°
860.1-0952-077A1-SD S2BM	9.52	10	77.9	152	150.3	106	1.7	140°
860.1-0953-030A1-SD S2BM	9.525	10	30.3	89	87.3	47	1.7	140°
860.1-0953-047A1-SD S2BM	9.525	10	47.3	103	101.3	61	1.7	140°
860.1-0953-077A1-SD S2BM	9.525	10	78	152	150.3	106	1.7	140°
860.1-0955-030A1-SD S2BM	9.55	10	30.4	89	87.3	47	1.7	140°
860.1-0955-047A1-SD S2BM	9.55	10	47.2	103	101.3	61	1.7	140°
860.1-0955-078A1-SD S2BM	9.55	10	78.1	152	150.3	106	1.7	140°
860.1-0960-030A1-SD S2BM	9.6	10	30.6	89	87.3	47	1.7	140°
860.1-0960-047A1-SD S2BM	9.6	10	47.2	103	101.3	61	1.7	140°
860.1-0960-078A1-SD S2BM	9.6	10	78.6	152	150.3	106	1.7	140°
860.1-0970-030A1-SD S2BM	9.7	10	30.9	89	87.2	47	1.8	140°
860.1-0970-047A1-SD S2BM	9.7	10	47.1	103	101.2	61	1.8	140°
860.1-0970-079A1-SD S2BM	9.7	10	79.4	152	150.2	106	1.8	140°
860.1-0980-031A1-SD S2BM	9.8	10	31.2	89	87.2	47	1.8	140°
860.1-0980-047A1-SD S2BM	9.8	10	47	103	101.2	61	1.8	140°
860.1-0980-080A1-SD S2BM	9.8	10	80.2	152	150.2	106	1.8	140°
860.1-0990-031A1-SD S2BM	9.9	10	31.5	89	87.2	47	1.8	140°
860.1-0990-047A1-SD S2BM	9.9	10	47	103	101.2	61	1.8	140°
860.1-0990-081A1-SD S2BM	9.9	10	81	152	150.2	106	1.8	140°
860.1-0992-031A1-SD S2BM	9.922	10	31.6	89	87.2	47	1.8	140°
860.1-0992-047A1-SD S2BM	9.922	10	47	103	101.2	61	1.8	140°
860.1-0992-081A1-SD S2BM	9.922	10	81.2	152	150.2	106	1.8	140°
860.1-1000-031A1-SD S2BM	10	10	31.8	89	87.2	47	1.8	140°
860.1-1000-046A1-SD S2BM	10	10	46.9	103	101.2	61	1.8	140°
860.1-1000-081A1-SD S2BM	10	10	81.8	152	150.2	106	1.8	140°
860.1-1010-032A1-SD S2BM	10.1	12	32.1	102	100.2	55	1.8	140°
860.1-1010-052A1-SD S2BM	10.1	12	52.3	118	116.2	71	1.8	140°
860.1-1010-082A1-SD S2BM	10.1	12	82.6	180	178.2	128	1.8	140°
860.1-1020-032A1-SD S2BM	10.2	12	32.5	102	100.1	55	1.9	140°
860.1-1020-052A1-SD S2BM	10.2	12	52.9	118	116.1	71	1.9	140°
860.1-1020-083A1-SD S2BM	10.2	12	83.5	180	178.1	128	1.9	140°
860.1-1030-032A1-SD S2BM	10.3	12	32.8	102	100.1	55	1.9	140°
860.1-1030-053A1-SD S2BM	10.3	12	53.4	118	116.1	71	1.9	140°
860.1-1030-084A1-SD S2BM	10.3	12	84.3	180	178.1	128	1.9	140°
860.1-1032-032A1-SD S2BM	10.31	12	32.8	102	100.1	55	1.9	140°
860.1-1032-053A1-SD S2BM	10.31	12	53.5	118	116.1	71	1.9	140°
860.1-1032-084A1-SD S2BM	10.31	12	84.4	180	178.1	128	1.9	140°
860.1-1040-033A1-SD S2BM	10.4	12	33.1	102	100.1	55	1.9	140°
860.1-1040-053A1-SD S2BM	10.4	12	53.9	118	116.1	71	1.9	140°
860.1-1040-085A1-SD S2BM	10.4	12	85.1	180	178.1	128	1.9	140°
860.1-1045-033A1-SD S2BM	10.45	12	33.3	102	100.1	55	1.9	140°
860.1-1045-054A1-SD S2BM	10.45	12	54.2	118	116.1	71	1.9	140°
860.1-1045-085A1-SD S2BM	10.45	12	85.5	180	178.1	128	1.9	140°
860.1-1050-033A1-SD S2BM	10.5	12	33.4	102	100.1	55	1.9	140°
860.1-1050-054A1-SD S2BM	10.5	12	54.4	118	116.1	71	1.9	140°
860.1-1050-085A1-SD S2BM	10.5	12	85.9	180	178.1	128	1.9	140°
860.1-1060-033A1-SD S2BM	10.6	12	33.7	102	100.1	55	1.9	140°
860.1-1060-054A1-SD S2BM	10.6	12	54.9	118	116.1	71	1.9	140°
860.1-1060-086A1-SD S2BM	10.6	12	86.7	180	178.1	128	1.9	140°
860.1-1070-034A1-SD S2BM	10.7	12	34.1	102	100.1	55	1.9	140°
860.1-1070-055A1-SD S2BM	10.7	12	55.5	118	116.1	71	1.9	140°
860.1-1070-087A1-SD S2BM	10.7	12	87.6	180	178.1	128	1.9	140°
860.1-1072-034A1-SD S2BM	10.71	12	34.1	102	100	55	2	140°
860.1-1072-055A1-SD S2BM	10.71	12	55.5	118	116	71	2	140°
860.1-1072-087A1-SD S2BM	10.71	12	87.7	180	178	128	2	140°
860.1-1080-034A1-SD S2BM	10.8	12	34.4	102	100	55	2	140°
860.1-1080-055A1-SD S2BM	10.8	12	55.5	118	116	71	2	140°
860.1-1080-088A1-SD S2BM	10.8	12	88.4	180	178	128	2	140°
860.1-1090-034A1-SD S2BM	10.9	12	34.7	102	100	55	2	140°
860.1-1090-055A1-SD S2BM	10.9	12	55.4	118	116	71	2	140°
860.1-1090-089A1-SD S2BM	10.9	12	89.2	180	178	128	2	140°
860.1-1100-035A1-SD S2BM	11	12	35	102	100	55	2	140°
860.1-1100-055A1-SD S2BM	11	12	55.3	118	116	71	2	140°
860.1-1100-090A1-SD S2BM	11	12	90	180	178	128	2	140°
860.1-1110-035A1-SD S2BM	11.1	12	35.3	102	100	55	2	140°
860.1-1110-055A1-SD S2BM	11.1	12	55.2	118	116	71	2	140°
860.1-1110-090A1-SD S2BM	11.1	12	90.8	180	178	128	2	140°
860.1-1111-035A1-SD S2BM	11.11	12	35.4	102	100	55	2	140°
860.1-1111-055A1-SD S2BM	11.11	12	55.2	118	116	71	2	140°
860.1-1111-090A1-SD S2BM	11.11	12	90.9	180	178	128	2	140°
860.1-1120-035A1-SD S2BM	11.2	12	35.6	102	100	55	2	140°
860.1-1120-055A1-SD S2BM	11.2	12	55.1	118	116	71	2	140°
860.1-1120-091A1-SD S2BM	11.2	12	91.6	180	178	128	2	140°
860.1-1130-035A1-SD S2BM	11.3	12	36	102	99.9	55	2.1	140°
860.1-1130-055A1-SD S2BM	11.3	12	55.1	118	115.9	71	2.1	140°
860.1-1130-092A1-SD S2BM	11.3	12	92.5	180	177.9	128	2.1	140°
860.1-1140-036A1-SD S2BM	11.4	12	36.3	102	99.9	55	2.1	140°
860.1-1140-055A1-SD S2BM	11.4	12	55	118	115.9	71	2.1	140°
860.1-1140-093A1-SD S2BM	11.4	12	93.3	180	177.9	128	2.1	140°
860.1-1150-036A1-SD S2BM	11.5	12	36.6	102	99.9	55	2.1	140°
860.1-1150-054A1-SD S2BM	11.5	12	54.9	118	115.9	71	2.1	140°
860.1-1150-094A1-SD S2BM	11.5	12	94.1	180	177.9	128	2.1	140°
860.1-1151-036A1-SD S2BM	11.5	12	36.6	102	99.9	55	2.1	140°
860.1-1151-054A1-SD S2BM	11.5	12	54.9	118	115.9	71	2.1	140°
860.1-1151-094A1-SD S2BM	11.5	12	94.2	180	177.9	128	2.1	140°
860.1-1160-036A1-SD S2BM	11.6	12	36.9	102	99.9	55	2.1	140°
860.1-1160-054A1-SD S2BM	11.6	12	54.8	118	115.9	71	2.1	140°
860.1-1160-094A1-SD S2BM	11.6	12	94.9	180	177.9	128	2.1	140°
860.1-1170-037A1-SD S2BM	11.7	12	37.2	102	99.9	55	2.1	140°
860.1-1170-054A1-SD S2BM	11.7	12	54.8	118	115.9	71	2.1	140°
860.1-1170-095A1-SD S2BM	11.7	12	95.7	180	177.9	128	2.1	140°
860.1-1180-037A1-SD S2BM	11.8	12	37.6	102	99.9	55	2.1	140°
860.1-1180-054A1-SD S2BM	11.8	12	54.7	118	115.9	71	2.1	140°
860.1-1180-096A1-SD S2BM	11.8	12	96.6	180	177.9	128	2.1	140°
860.1-1190-037A1-SD S2BM	11.9	12	37.9	102	99.8	55	2.2	140°
860.1-1190-054A1-SD S2BM	11.9	12	54.6	118	115.8	71	2.2	140°
860.1-1190-097A1-SD S2BM	11.9	12	97.4	180	177.8	128	2.2	140°
860.1-1200-038A1-SD S2BM	12	12	38.2	102	99.8	55	2.2	140°
860.1-1200-054A1-SD S2BM	12	12	54.6	118	115.8	71	2.2	140°
860.1-1200-098A1-SD S2BM	12	12	98.2	180	177.8	128	2.2	140°
860.1-1210-038A1-SD S2BM	12.1	14	38.5	107	104.8	60	2.2	140°
860.1-1210-059A1-SD S2BM	12.1	14	59.7	124	121.8	77	2.2	140°
860.1-1210-099A1-SD S2BM	12.1	14	99	202	199.8	151	2.2	140°
860.1-1220-038A1-SD S2BM	12.2	14	38.8	107	104.8	60	2.2	140°
860.1-1220-059A1-SD S2BM	12.2	14	59.6	124	121.8	77	2.2	140°
860.1-1220-099A1-SD S2BM	12.2	14	99.8	202	199.8	151	2.2	140°
860.1-1230-039A1-SD S2BM	12.3	14	39.1	107	104.8	60	2.2	140°
860.1-1230-059A1-SD S2BM	12.3	14	59.5	124	121.8	77	2.2	140°
860.1-1230-100A1-SD S2BM	12.3	14	100.6	202	199.8	151	2.2	140°
860.1-1240-039A1-SD S2BM	12.4	14	39.5	107	104.7	60	2.3	140°
860.1-1240-059A1-SD S2BM	12.4	14	59.4	124	121.7	77	2.3	140°
860.1-1240-101A1-SD S2BM	12.4	14	101.5	202	199.7	151	2.3	140°
860.1-1250-039A1-SD S2BM	12.5	14	39.8	107	104.7	60	2.3	140°
860.1-1250-059A1-SD S2BM	12.5	14	59.4	124	121.7	77	2.3	140°
860.1-1250-102A1-SD S2BM	12.5	14	102.3	202	199.7	151	2.3	140°
860.1-1260-040A1-SD S2BM	12.6	14	40.1	107	104.7	60	2.3	140°
860.1-1260-059A1-SD S2BM	12.6	14	59.3	124	121.7	77	2.3	140°
860.1-1260-103A1-SD S2BM	12.6	14	103.1	202	199.7	151	2.3	140°
860.1-1270-040A1-SD S2BM	12.7	14	40.4	107	104.7	60	2.3	140°
860.1-1270-059A1-SD S2BM	12.7	14	59.2	124	121.7	77	2.3	140°
860.1-1270-103A1-SD S2BM	12.7	14	103.9	202	199.7	151	2.3	140°
860.1-1280-040A1-SD S2BM	12.8	14	40.7	107	104.7	60	2.3	140°
860.1-1280-059A1-SD S2BM	12.8	14	59.1	124	121.7	77	2.3	140°
860.1-1280-104A1-SD S2BM	12.8	14	104.7	202	199.7	151	2.3	140°
860.1-1290-041A1-SD S2BM	12.9	14	41.1	107	104.7	60	2.3	140°
860.1-1290-059A1-SD S2BM	12.9	14	59	124	121.7	77	2.3	140°
860.1-1290-105A1-SD S2BM	12.9	14	105.6	202	199.7	151	2.3	140°
860.1-1300-041A1-SD S2BM	13	14	41.4	107	104.6	60	2.4	140°
860.1-1300-059A1-SD S2BM	13	14	59	124	121.6	77	2.4	140°
860.1-1300-106A1-SD S2BM	13	14	106.4	202	199.6	151	2.4	140°
860.1-1310-041A1-SD S2BM	13.1	14	41.7	107	104.6	60	2.4	140°
860.1-1310-058A1-SD S2BM	13.1	14	58.9	124	121.6	77	2.4	140°
860.1-1310-107A1-SD S2BM	13.1	14	107.2	202	199.6	151	2.4	140°
860.1-1325-041A1-SD S2BM	13.25	14	41.8	107	104.6	60	2.4	140°
860.1-1325-058A1-SD S2BM	13.25	14	58.8	124	121.6	77	2.4	140°
860.1-1325-108A1-SD S2BM	13.25	14	108.4	202	199.6	151	2.4	140°
860.1-1330-041A1-SD S2BM	13.3	14	41.7	107	104.6	60	2.4	140°
860.1-1330-058A1-SD S2BM	13.3	14	58.7	124	121.6	77	2.4	140°
860.1-1330-108A1-SD S2BM	13.3	14	108.8	202	199.6	151	2.4	140°
860.1-1349-041A1-SD S2BM	13.49	14	41.6	107	104.5	60	2.5	140°
860.1-1349-058A1-SD S2BM	13.49	14	58.6	124	121.5	77	2.5	140°
860.1-1349-110A1-SD S2BM	13.49	14	110.4	202	199.5	151	2.5	140°
860.1-1350-041A1-SD S2BM	13.5	14	41.6	107	104.5	60	2.5	140°
860.1-1350-058A1-SD S2BM	13.5	14	58.6	124	121.5	77	2.5	140°
860.1-1350-110A1-SD S2BM	13.5	14	110.5	202	199.5	151	2.5	140°
860.1-1370-041A1-SD S2BM	13.7	14	41.4	107	104.5	60	2.5	140°
860.1-1370-058A1-SD S2BM	13.7	14	58.4	124	121.5	77	2.5	140°
860.1-1370-112A1-SD S2BM	13.7	14	112.1	202	199.5	151	2.5	140°
860.1-1375-041A1-SD S2BM	13.75	14	41.4	107	104.5	60	2.5	140°
860.1-1375-058A1-SD S2BM	13.75	14	58.4	124	121.5	77	2.5	140°
860.1-1375-112A1-SD S2BM	13.75	14	112.5	202	199.5	151	2.5	140°
860.1-1380-041A1-SD S2BM	13.8	14	41.4	107	104.5	60	2.5	140°
860.1-1380-058A1-SD S2BM	13.8	14	58.4	124	121.5	77	2.5	140°
860.1-1380-112A1-SD S2BM	13.8	14	112.9	202	199.5	151	2.5	140°
860.1-1389-041A1-SD S2BM	13.89	14	41.3	107	104.5	60	2.5	140°
860.1-1389-058A1-SD S2BM	13.89	14	58.3	124	121.5	77	2.5	140°
860.1-1389-113A1-SD S2BM	13.89	14	113.7	202	199.5	151	2.5	140°
860.1-1400-041A1-SD S2BM	14	14	41.2	107	104.5	60	2.5	140°
860.1-1400-058A1-SD S2BM	14	14	58.2	124	121.5	77	2.5	140°
860.1-1400-114A1-SD S2BM	14	14	114.6	202	199.5	151	2.5	140°
860.1-1410-044A1-SD S2BM	14.1	16	45.5	115	112.4	65	2.6	140°
860.1-1410-063A1-SD S2BM	14.1	16	63.5	133	130.4	83	2.6	140°
860.1-1410-115A1-SD S2BM	14.1	16	115.4	227	224.4	172	2.6	140°
860.1-1420-045A1-SD S2BM	14.2	16	45.5	115	112.4	65	2.6	140°
860.1-1420-066A1-SD S2BM	14.2	16	66.5	133	130.4	86	2.6	140°
860.1-1420-116A1-SD S2BM	14.2	16	116.2	227	224.4	172	2.6	140°
860.1-1425-045A1-SD S2BM	14.25	16	45.4	115	112.4	65	2.6	140°
860.1-1425-063A1-SD S2BM	14.25	16	63.4	133	130.4	83	2.6	140°
860.1-1425-116A1-SD S2BM	14.25	16	116.6	227	224.4	172	2.6	140°
860.1-1429-045A1-SD S2BM	14.28	16	45.4	115	112.4	65	2.6	140°
860.1-1429-063A1-SD S2BM	14.28	16	63.4	133	130.4	83	2.6	140°
860.1-1429-116A1-SD S2BM	14.28	16	116.9	227	224.4	172	2.6	140°
860.1-1450-045A1-SD S2BM	14.5	16	45.2	115	112.4	65	2.6	140°
860.1-1450-063A1-SD S2BM	14.5	16	63.2	133	130.4	83	2.6	140°
860.1-1450-118A1-SD S2BM	14.5	16	118.6	227	224.4	172	2.6	140°
860.1-1469-045A1-SD S2BM	14.69	16	45	115	112.3	65	2.7	140°
860.1-1469-063A1-SD S2BM	14.69	16	63	133	130.3	83	2.7	140°
860.1-1469-120A1-SD S2BM	14.69	16	120.2	227	224.3	172	2.7	140°
860.1-1475-045A1-SD S2BM	14.75	16	45	115	112.3	65	2.7	140°
860.1-1475-063A1-SD S2BM	14.75	16	63	133	130.3	83	2.7	140°
860.1-1475-120A1-SD S2BM	14.75	16	120.7	227	224.3	172	2.7	140°
860.1-1480-045A1-SD S2BM	14.8	16	45	115	112.3	65	2.7	140°
860.1-1480-063A1-SD S2BM	14.8	16	63	133	130.3	83	2.7	140°
860.1-1480-121A1-SD S2BM	14.8	16	121.1	227	224.3	172	2.7	140°
860.1-1500-044A1-SD S2BM	15	16	44.8	115	112.3	65	2.7	140°
860.1-1500-062A1-SD S2BM	15	16	62.8	133	130.3	83	2.7	140°
860.1-1500-122A1-SD S2BM	15	16	122.7	227	224.3	172	2.7	140°
860.1-1510-044A1-SD S2BM	15.1	16	44.7	115	112.3	65	2.7	140°
860.1-1510-062A1-SD S2BM	15.1	16	62.7	133	130.3	83	2.7	140°
860.1-1510-123A1-SD S2BM	15.1	16	123.6	227	224.3	172	2.7	140°
860.1-1520-044A1-SD S2BM	15.2	16	44.6	115	112.2	65	2.8	140°
860.1-1520-062A1-SD S2BM	15.2	16	62.6	133	130.2	83	2.8	140°
860.1-1520-124A1-SD S2BM	15.2	16	124.4	227	224.2	172	2.8	140°
860.1-1530-044A1-SD S2BM	15.3	16	44.6	115	112.2	65	2.8	140°
860.1-1530-062A1-SD S2BM	15.3	16	62.6	133	130.2	83	2.8	140°
860.1-1530-125A1-SD S2BM	15.3	16	125.2	227	224.2	172	2.8	140°
860.1-1550-044A1-SD S2BM	15.5	16	44.4	115	112.2	65	2.8	140°
860.1-1550-062A1-SD S2BM	15.5	16	62.4	133	130.2	83	2.8	140°
860.1-1550-126A1-SD S2BM	15.5	16	126.8	227	224.2	172	2.8	140°
860.1-1580-044A1-SD S2BM	15.8	16	44.2	115	112.1	65	2.9	140°
860.1-1580-062A1-SD S2BM	15.8	16	62.2	133	130.1	83	2.9	140°
860.1-1580-129A1-SD S2BM	15.8	16	129.3	227	224.1	172	2.9	140°
860.1-1587-044A1-SD S2BM	15.87	16	44.1	115	112.1	65	2.9	140°
860.1-1587-062A1-SD S2BM	15.87	16	62.1	133	130.1	83	2.9	140°
860.1-1587-129A1-SD S2BM	15.87	16	129.9	227	224.1	172	2.9	140°
860.1-1600-044A1-SD S2BM	16	16	44	115	112.1	65	2.9	140°
860.1-1600-062A1-SD S2BM	16	16	62	133	130.1	83	2.9	140°
860.1-1600-130A1-SD S2BM	16	16	130.9	227	224.1	172	2.9	140°

在 技术资料

# GH4169沉淀强化镍基高温合金加工 INCONEL718加工内冷钨钢钻头镍合金加工

860-NM系列3-20MM铝合金钻头

860-NM有色金属材料批量钻孔高性能钻头，其加工对象明确，是铝、镁、铜合金钻孔的专用解决方案。
