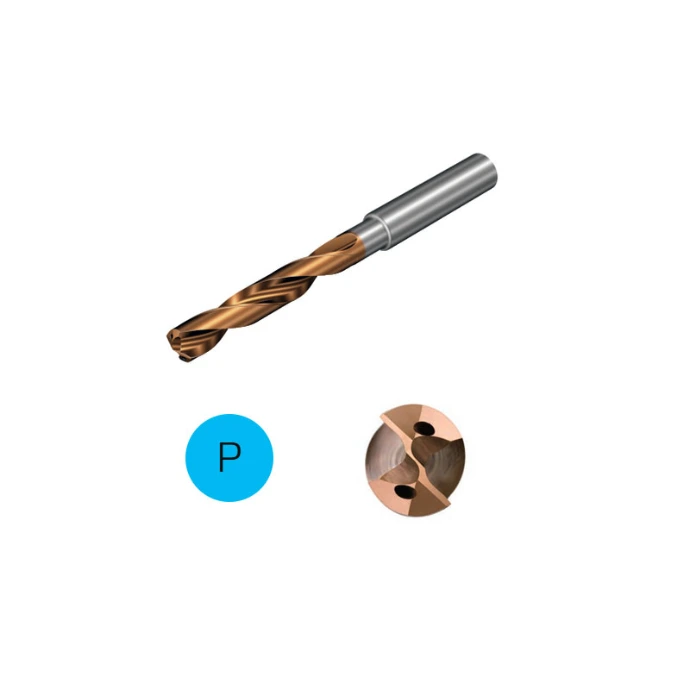

860-PM系列3-20MM钢件用整体硬质合金钻头

860-PM用于长切屑和短切屑钢材，例如非合金钢、低碳钢、低合金钢、高合金钢和铸钢。
2026年4月24日 由
cuttingtools
860-PM

860-PM系列

整体硬质合金钻头

钢材（ISO P） 的高效钻削，包括非合金钢、低碳钢、合金钢和铸钢等

        常规钻削             倾斜进刀             倾斜退刀



         交叉孔               凸/凹表面          带倒角的孔



应用定位

用于长切屑和短切屑钢材，例如非合金钢、低碳钢、低合金钢、高合金钢和铸钢。
典型零部件：阀体、阀块、罩壳、法兰、歧管
同时适用于对孔质量要求较高的航空航天以及石油和天然气行业。

产品规格

标准直径范围3-20 mm
钻孔深度为3-8倍钻头直径
切削直径公差m7
可实现孔公差H8–H9
内冷却和外冷却
标准钻头，顶角147°
能够提高ISO P加工效率的钻头

标准规格

几何结构 钻头类型 长径比 钻头直径mm (英寸) 冷却液 刀柄类型 材质
860.1-GM 标准单直径钻头 3‒8D 3-16mm(0.118‒0.63) 内部/外部 圆柱柄DIN 6535 HA X1BM
860.2-GM 标准双直径钻头 3D 3-14mm(0.118‒0.55) 内 圆柱柄DIN 6535 HA X1BM
860.1-SM 标准单直径钻头 2-5D 3-16mm(0.118‒0.63) 内 圆柱柄DIN 6535 HA 1210
860.1-SD 标准单直径钻头 3‒8D 3-16mm(0.118‒0.63) 内 圆柱柄DIN 6535 HA S2BM
860.1-PM 标准单直径钻头 2–3D 3−20mm(0.118−0.787) 内部/外部 圆柱柄DIN 6535 HA P1BM
860.1-PM 标准单直径钻头 4–5D 3−20mm(0.118−0.787) 内部/外部 圆柱柄DIN 6535 HA P1BM
860.1-PM 标准单直径钻头 7–8D 3-16mm(0.118‒0.63) 内 圆柱柄DIN 6535 HA P1BM
860.2-PM 阶梯和倒角钻 3D 3.35−17.50mm(0.132−0.689) 内 圆柱柄DIN 6535 HA P1BM
860.1-NM 标准单直径钻头 3D, 8D 3−20mm(0.118−0.787) 内 圆柱柄DIN 6535 HA H10F
860.1-MM 标准单直径钻头 3D 3−20mm(0.118−0.787) 内 圆柱柄DIN 6535 HA M2BM
860.1-MM 标准单直径钻头 5D 3−20mm(0.118−0.787) 内 圆柱柄DIN 6535 HA M2BM
860.1-MM 标准单直径钻头 8D 3-16mm(0.118‒0.63) 内 圆柱柄DIN 6535 HA GC2214

经过优化的钻削解决方案

为了实现对各种钢材的高效加工，CoroDrill 860-PM进行了针对性的设计：

  • 优化排屑的几何刃型：钻头容屑槽形状经过优化，有助于形成细小、易排出的切屑。在钻削粘性较大的低合金钢时，也能形成尾部很短的细小切屑，有效解决积屑瘤和断屑难的问题。

  • 高耐磨多层PVD涂层：采用升级的多层PVD（物理气相沉积）涂层，具有高硬度和出色的耐磨性，可有效抵抗磨损，实现更长的刀具寿命。

  • 强化切削刃：钻头切削刃采用专门的钝化处理，钻尖也被强化。这种设计有助于防止崩刃，尤其适用于断续切削或工件表面不平整的工况。

  • 内冷却设计：通过内冷却通道将切削液直接输送至切削区域。这能有效降低切削区温度、辅助排屑，对延长刀具寿命和保障孔质量有重要作用。

加工参数

根据应用经验，860-PM在加工软钢和硬钢时，推荐的表面切削速度和进给率如下；使用内冷却时，建议冷却液压力不低于220 psi（约15 bar）。

工件材料类型推荐切削速度 (Vc)推荐进给率 (f)
软钢120 - 240 m/min约为 0.25 mm/r
硬钢60 - 100 m/min约为 0.25 mm/r

性能表现

实际应用数据显示，860-PM在钢件钻削中表现出较好的性能：

  • 与市场上的其他钻头相比，刀具寿命提高了20%～40%。

  • 在针对特定客户的奥氏体不锈钢零件加工中，实现了2,000% 的生产率提升和超过65% 的刀具寿命提升。


型号列表

860-PM

直钻型号  切削直径DC 柄径DCON 有用长度LU 总长OAL 功能长度LF 容屑槽长度LCF 点长度PL 外刃顶角SIG
860.1-0300-016A0-PM P1BM 3 6 9.5 62 61.5 20 0.4 147°
860.1-0300-021A0-PM P1BM 3 6 15.5 66 65.5 28 0.4 147°
860.1-0300-016A1-PM P1BM 3 6 9.5 62 61.5 20 0.4 147°
860.1-0300-021A1-PM P1BM 3 6 15.5 66 65.5 28 0.4 147°
860.1-0300-029A1-PM P1BM 3 6 24.5 74 73.5 34 0.4 147°
860.1-0310-016A0-PM P1BM 3.1 6 9.8 62 61.5 20 0.5 147°
860.1-0310-021A0-PM P1BM 3.1 6 16 66 65.5 28 0.5 147°
860.1-0310-016A1-PM P1BM 3.1 6 9.8 62 61.5 20 0.5 147°
860.1-0310-021A1-PM P1BM 3.1 6 16 66 65.5 28 0.5 147°
860.1-0310-029A1-PM P1BM 3.1 6 25.3 74 73.5 34 0.5 147°
860.1-0317-016A1-PM P1BM 3.17 6 10 62 61.5 20 0.5 147°
860.1-0317-021A1-PM P1BM 3.17 6 16.4 66 65.5 28 0.5 147°
860.1-0317-029A1-PM P1BM 3.17 6 25.9 74 73.5 34 0.5 147°
860.1-0320-016A0-PM P1BM 3.2 6 10.1 62 61.5 20 0.5 147°
860.1-0320-021A0-PM P1BM 3.2 6 16.5 66 65.5 28 0.5 147°
860.1-0320-016A1-PM P1BM 3.2 6 10.1 62 61.5 20 0.5 147°
860.1-0320-021A1-PM P1BM 3.2 6 16.5 66 65.5 28 0.5 147°
860.1-0320-029A1-PM P1BM 3.2 6 26.1 74 73.5 34 0.5 147°
860.1-0330-016A0-PM P1BM 3.3 6 10.5 62 61.4 20 0.5 147°
860.1-0330-021A0-PM P1BM 3.3 6 17.1 66 65.4 28 0.5 147°
860.1-0330-016A1-PM P1BM 3.3 6 10.5 62 61.4 20 0.5 147°
860.1-0330-021A1-PM P1BM 3.3 6 17.1 66 65.4 28 0.5 147°
860.1-0330-029A1-PM P1BM 3.3 6 27 74 73.4 35 0.5 147°
860.1-0338-021A0-PM P1BM 3.38 6 17.5 66 65.4 28 0.5 147°
860.1-0340-016A0-PM P1BM 3.4 6 10.8 62 61.4 20 0.5 147°
860.1-0340-021A0-PM P1BM 3.4 6 17.6 66 65.4 28 0.5 147°
860.1-0340-016A1-PM P1BM 3.4 6 10.8 62 61.4 20 0.5 147°
860.1-0340-021A1-PM P1BM 3.4 6 17.6 66 65.4 28 0.5 147°
860.1-0340-029A1-PM P1BM 3.4 6 27.5 74 73.4 35 0.5 147°
860.1-0345-016A1-PM P1BM 3.45 6 10.9 62 61.4 20 0.5 147°
860.1-0345-021A1-PM P1BM 3.45 6 17.8 66 65.4 28 0.5 147°
860.1-0345-029A1-PM P1BM 3.45 6 27.4 74 73.4 35 0.5 147°
860.1-0350-016A0-PM P1BM 3.5 6 11.1 62 61.4 20 0.5 147°
860.1-0350-021A0-PM P1BM 3.5 6 18.1 66 65.4 28 0.5 147°
860.1-0350-016A1-PM P1BM 3.5 6 11.1 62 61.4 20 0.5 147°
860.1-0350-021A1-PM P1BM 3.5 6 18.1 66 65.4 28 0.5 147°
860.1-0350-029A1-PM P1BM 3.5 6 27.3 74 73.4 35 0.5 147°
860.1-0355-016A1-PM P1BM 3.55 6 11.2 62 61.4 20 0.5 147°
860.1-0357-016A1-PM P1BM 3.57 6 11.3 62 61.4 20 0.5 147°
860.1-0357-021A1-PM P1BM 3.57 6 18.5 66 65.4 28 0.5 147°
860.1-0357-029A1-PM P1BM 3.57 6 27.1 74 73.4 35 0.5 147°
860.1-0360-016A0-PM P1BM 3.6 6 11.4 62 61.4 20 0.5 147°
860.1-0360-021A0-PM P1BM 3.6 6 18.6 66 65.4 28 0.5 147°
860.1-0360-016A1-PM P1BM 3.6 6 11.4 62 61.4 20 0.5 147°
860.1-0360-021A1-PM P1BM 3.6 6 18.6 66 65.4 28 0.5 147°
860.1-0360-029A1-PM P1BM 3.6 6 27.1 74 73.4 35 0.5 147°
860.1-0370-016A0-PM P1BM 3.7 6 11.7 62 61.4 20 0.5 147°
860.1-0370-021A0-PM P1BM 3.7 6 19.1 66 65.4 28 0.5 147°
860.1-0370-016A1-PM P1BM 3.7 6 11.7 62 61.4 20 0.5 147°
860.1-0370-021A1-PM P1BM 3.7 6 19.1 66 65.4 28 0.5 147°
860.1-0370-029A1-PM P1BM 3.7 6 27.9 74 73.4 36 0.5 147°
860.1-0380-018A0-PM P1BM 3.8 6 12.1 66 65.3 24 0.6 147°
860.1-0380-027A0-PM P1BM 3.8 6 19.7 74 73.3 36 0.6 147°
860.1-0380-018A1-PM P1BM 3.8 6 12.1 66 65.3 24 0.6 147°
860.1-0380-027A1-PM P1BM 3.8 6 19.7 74 73.3 36 0.6 147°
860.1-0380-037A1-PM P1BM 3.8 6 31.1 85 84.3 44 0.6 147°
860.1-0390-018A0-PM P1BM 3.9 6 12.4 66 65.3 24 0.6 147°
860.1-0390-027A0-PM P1BM 3.9 6 20.2 74 73.3 36 0.6 147°
860.1-0390-018A1-PM P1BM 3.9 6 12.4 66 65.3 24 0.6 147°
860.1-0390-027A1-PM P1BM 3.9 6 20.2 74 73.3 36 0.6 147°
860.1-0390-037A1-PM P1BM 3.9 6 31.9 85 84.3 44 0.6 147°
860.1-0397-018A1-PM P1BM 3.97 6 12.6 66 65.3 24 0.6 147°
860.1-0397-027A1-PM P1BM 3.97 6 20.5 74 73.3 36 0.6 147°
860.1-0397-037A1-PM P1BM 3.97 6 32.4 85 84.3 44 0.6 147°
860.1-0400-018A0-PM P1BM 4 6 12.7 66 65.3 24 0.6 147°
860.1-0400-027A0-PM P1BM 4 6 20.7 74 73.3 36 0.6 147°
860.1-0400-018A1-PM P1BM 4 6 12.7 66 65.3 24 0.6 147°
860.1-0400-027A1-PM P1BM 4 6 20.7 74 73.3 36 0.6 147°
860.1-0400-037A1-PM P1BM 4 6 32.7 85 84.3 44 0.6 147°
860.1-0410-018A0-PM P1BM 4.1 6 13 66 65.3 24 0.6 147°
860.1-0410-027A0-PM P1BM 4.1 6 21.2 74 73.3 36 0.6 147°
860.1-0410-018A1-PM P1BM 4.1 6 13 66 65.3 24 0.6 147°
860.1-0410-027A1-PM P1BM 4.1 6 21.2 74 73.3 36 0.6 147°
860.1-0410-037A1-PM P1BM 4.1 6 33.5 85 84.3 45 0.6 147°
860.1-0420-018A0-PM P1BM 4.2 6 13.3 66 65.3 24 0.6 147°
860.1-0420-027A0-PM P1BM 4.2 6 21.7 74 73.3 36 0.6 147°
860.1-0420-018A1-PM P1BM 4.2 6 13.3 66 65.3 24 0.6 147°
860.1-0420-027A1-PM P1BM 4.2 6 21.7 74 73.3 36 0.6 147°
860.1-0420-037A1-PM P1BM 4.2 6 34.3 85 84.3 45 0.6 147°
860.1-0430-018A0-PM P1BM 4.3 6 13.7 66 65.2 24 0.6 147°
860.1-0430-027A0-PM P1BM 4.3 6 22.3 74 73.2 36 0.6 147°
860.1-0430-018A1-PM P1BM 4.3 6 13.7 66 65.2 24 0.6 147°
860.1-0430-027A1-PM P1BM 4.3 6 22.3 74 73.2 36 0.6 147°
860.1-0430-037A1-PM P1BM 4.3 6 35.2 85 84.2 45 0.6 147°
860.1-0436-018A1-PM P1BM 4.36 6 13.8 66 65.2 24 0.6 147°
860.1-0436-027A1-PM P1BM 4.36 6 22.6 74 73.2 36 0.6 147°
860.1-0436-037A1-PM P1BM 4.36 6 35.6 85 84.2 45 0.6 147°
860.1-0440-018A0-PM P1BM 4.4 6 14 66 65.2 24 0.7 147°
860.1-0440-027A0-PM P1BM 4.4 6 22.8 74 73.2 36 0.7 147°
860.1-0440-018A1-PM P1BM 4.4 6 14 66 65.2 24 0.7 147°
860.1-0440-027A1-PM P1BM 4.4 6 22.8 74 73.2 36 0.7 147°
860.1-0440-037A1-PM P1BM 4.4 6 36 85 84.2 45 0.7 147°
860.1-0450-018A0-PM P1BM 4.5 6 14.3 66 65.2 24 0.7 147°
860.1-0450-027A0-PM P1BM 4.5 6 23.3 74 73.2 36 0.7 147°
860.1-0450-018A1-PM P1BM 4.5 6 14.3 66 65.2 24 0.7 147°
860.1-0450-027A1-PM P1BM 4.5 6 23.3 74 73.2 36 0.7 147°
860.1-0450-037A1-PM P1BM 4.5 6 36.8 85 84.2 46 0.7 147°
860.1-0455-027A0-PM P1BM 4.55 6 23.5 74 73.2 36 0.7 147°
860.1-0455-018A1-PM P1BM 4.55 6 14.4 66 65.2 24 0.7 147°
860.1-0455-027A1-PM P1BM 4.55 6 23.5 74 73.2 36 0.7 147°
860.1-0460-018A0-PM P1BM 4.6 6 14.6 66 65.2 24 0.7 147°
860.1-0460-027A0-PM P1BM 4.6 6 23.8 74 73.2 36 0.7 147°
860.1-0460-018A1-PM P1BM 4.6 6 14.6 66 65.2 24 0.7 147°
860.1-0460-027A1-PM P1BM 4.6 6 23.8 74 73.2 36 0.7 147°
860.1-0460-037A1-PM P1BM 4.6 6 36.8 85 84.2 46 0.7 147°
860.1-0470-018A0-PM P1BM 4.7 6 14.6 66 65.2 24 0.7 147°
860.1-0470-027A0-PM P1BM 4.7 6 24.3 74 73.2 36 0.7 147°
860.1-0470-018A1-PM P1BM 4.7 6 14.6 66 65.2 24 0.7 147°
860.1-0470-027A1-PM P1BM 4.7 6 24.3 74 73.2 36 0.7 147°
860.1-0470-037A1-PM P1BM 4.7 6 36.6 85 84.2 46 0.7 147°
860.1-0476-019A1-PM P1BM 4.76 6 15 66 65.2 28 0.7 147°
860.1-0476-037A1-PM P1BM 4.76 6 36.5 97 96.2 46 0.7 147°
860.1-0476-047A1-PM P1BM 4.76 6 38.8 97 96.2 56 0.7 147°
860.1-0480-019A0-PM P1BM 4.8 6 15.2 72 65.2 28 0.7 147°
860.1-0480-037A0-PM P1BM 4.8 6 24.8 87 81.2 44 0.7 147°
860.1-0480-019A1-PM P1BM 4.8 6 15.2 72 65.2 28 0.7 147°
860.1-0480-037A1-PM P1BM 4.8 6 24.8 87 81.2 44 0.7 147°
860.1-0480-047A1-PM P1BM 4.8 6 39.2 97 96.2 56 0.7 147°
860.1-0490-019A0-PM P1BM 4.9 6 15.5 72 65.2 28 0.7 147°
860.1-0490-037A0-PM P1BM 4.9 6 25.3 87 81.2 44 0.7 147°
860.1-0490-019A1-PM P1BM 4.9 6 15.5 72 65.2 28 0.7 147°
860.1-0490-037A1-PM P1BM 4.9 6 25.3 87 81.2 44 0.7 147°
860.1-0490-047A1-PM P1BM 4.9 6 40 97 96.2 56 0.7 147°
860.1-0500-019A0-PM P1BM 5 6 15.8 72 65.2 28 0.7 147°
860.1-0500-037A0-PM P1BM 5 6 25.8 87 81.2 44 0.7 147°
860.1-0500-019A1-PM P1BM 5 6 15.8 72 65.2 28 0.7 147°
860.1-0500-037A1-PM P1BM 5 6 25.8 87 81.2 44 0.7 147°
860.1-0500-047A1-PM P1BM 5 6 40.8 97 96.2 57 0.7 147°
860.1-0510-019A0-PM P1BM 5.1 6 16.1 72 65.2 28 0.8 147°
860.1-0510-037A0-PM P1BM 5.1 6 26.3 87 81.2 44 0.8 147°
860.1-0510-019A1-PM P1BM 5.1 6 16.1 72 65.2 28 0.8 147°
860.1-0510-037A1-PM P1BM 5.1 6 26.3 87 81.2 44 0.8 147°
860.1-0510-047A1-PM P1BM 5.1 6 41.6 97 96.2 57 0.8 147°
860.1-0516-019A1-PM P1BM 5.16 6 16.3 72 65.2 28 0.8 147°
860.1-0516-037A1-PM P1BM 5.16 6 26.6 87 81.2 44 0.8 147°
860.1-0516-047A1-PM P1BM 5.16 6 42.1 97 96.2 57 0.8 147°
860.1-0520-019A0-PM P1BM 5.2 6 16.4 72 65.2 28 0.8 147°
860.1-0520-037A0-PM P1BM 5.2 6 26.8 87 81.2 44 0.8 147°
860.1-0520-019A1-PM P1BM 5.2 6 16.4 72 65.2 28 0.8 147°
860.1-0520-037A1-PM P1BM 5.2 6 26.8 87 81.2 44 0.8 147°
860.1-0520-047A1-PM P1BM 5.2 6 42.4 97 96.2 57 0.8 147°
860.1-0525-037A1-PM P1BM 5.25 6 27.1 87 81.2 44 0.8 147°
860.1-0530-019A0-PM P1BM 5.3 6 16.7 72 65.2 28 0.8 147°
860.1-0530-037A0-PM P1BM 5.3 6 27.3 87 81.2 44 0.8 147°
860.1-0530-019A1-PM P1BM 5.3 6 16.7 72 65.2 28 0.8 147°
860.1-0530-037A1-PM P1BM 5.3 6 27.3 87 81.2 44 0.8 147°
860.1-0530-047A1-PM P1BM 5.3 6 43.2 97 96.2 57 0.8 147°
860.1-0540-019A0-PM P1BM 5.4 6 17 72 65.2 28 0.8 147°
860.1-0540-037A0-PM P1BM 5.4 6 27.8 87 81.2 44 0.8 147°
860.1-0540-019A1-PM P1BM 5.4 6 17 72 65.2 28 0.8 147°
860.1-0540-037A1-PM P1BM 5.4 6 27.8 87 81.2 44 0.8 147°
860.1-0540-047A1-PM P1BM 5.4 6 44 97 96.2 57 0.8 147°
860.1-0550-019A0-PM P1BM 5.5 6 17.4 72 65.1 28 0.8 147°
860.1-0550-037A0-PM P1BM 5.5 6 28.4 87 81.1 44 0.8 147°
860.1-0550-019A1-PM P1BM 5.5 6 17.4 72 65.1 28 0.8 147°
860.1-0550-037A1-PM P1BM 5.5 6 28.4 87 81.1 44 0.8 147°
860.1-0550-047A1-PM P1BM 5.5 6 44.9 97 96.1 57 0.8 147°
860.1-0555-037A1-PM P1BM 5.55 6 28.7 87 81.1 44 0.8 147°
860.1-0556-019A1-PM P1BM 5.56 6 17.5 72 65.1 28 0.8 147°
860.1-0556-037A1-PM P1BM 5.56 6 28.7 87 81.1 44 0.8 147°
860.1-0556-047A1-PM P1BM 5.56 6 45.3 97 96.1 58 0.8 147°
860.1-0560-019A0-PM P1BM 5.6 6 17.7 72 65.1 28 0.8 147°
860.1-0560-037A0-PM P1BM 5.6 6 28.9 87 81.1 44 0.8 147°
860.1-0560-019A1-PM P1BM 5.6 6 17.7 72 65.1 28 0.8 147°
860.1-0560-037A1-PM P1BM 5.6 6 28.9 87 81.1 44 0.8 147°
860.1-0560-047A1-PM P1BM 5.6 6 45.7 97 96.1 58 0.8 147°
860.1-0570-019A0-PM P1BM 5.7 6 17.7 72 65.1 28 0.8 147°
860.1-0570-037A0-PM P1BM 5.7 6 29.4 87 81.1 44 0.8 147°
860.1-0570-019A1-PM P1BM 5.7 6 17.7 72 65.1 28 0.8 147°
860.1-0570-037A1-PM P1BM 5.7 6 29.4 87 81.1 44 0.8 147°
860.1-0570-047A1-PM P1BM 5.7 6 46.5 97 96.1 58 0.8 147°
860.1-0580-019A0-PM P1BM 5.8 6 17.6 72 65.1 28 0.9 147°
860.1-0580-037A0-PM P1BM 5.8 6 29.9 87 81.1 44 0.9 147°
860.1-0580-019A1-PM P1BM 5.8 6 17.6 72 65.1 28 0.9 147°
860.1-0580-037A1-PM P1BM 5.8 6 29.9 87 81.1 44 0.9 147°
860.1-0580-047A1-PM P1BM 5.8 6 47 97 96.1 58 0.9 147°
860.1-0590-019A0-PM P1BM 5.9 6 17.4 72 65.1 28 0.9 147°
860.1-0590-037A0-PM P1BM 5.9 6 30.4 87 81.1 44 0.9 147°
860.1-0590-019A1-PM P1BM 5.9 6 17.4 72 65.1 28 0.9 147°
860.1-0590-037A1-PM P1BM 5.9 6 30.4 87 81.1 44 0.9 147°
860.1-0590-047A1-PM P1BM 5.9 6 47 97 96.1 58 0.9 147°
860.1-0595-019A1-PM P1BM 5.95 6 17.3 72 65.1 28 0.9 147°
860.1-0595-037A1-PM P1BM 5.95 6 30.7 87 81.1 44 0.9 147°
860.1-0595-047A1-PM P1BM 5.95 6 47 97 96.1 58 0.9 147°
860.1-0600-019A0-PM P1BM 6 6 18.9 72 65.1 28 0.9 147°
860.1-0600-037A0-PM P1BM 6 6 30.9 87 81.1 44 0.9 147°
860.1-0600-019A1-PM P1BM 6 6 18.9 72 65.1 28 0.9 147°
860.1-0600-037A1-PM P1BM 6 6 30.9 87 81.1 44 0.9 147°
860.1-0600-047A1-PM P1BM 6 6 47 97 96.1 58 0.9 147°
860.1-0610-024A0-PM P1BM 6.1 8 19.3 79 78 34 0.9 147°
860.1-0610-040A0-PM P1BM 6.1 8 31.5 91 90 53 0.9 147°
860.1-0610-024A1-PM P1BM 6.1 8 19.3 79 78 34 0.9 147°
860.1-0610-040A1-PM P1BM 6.1 8 31.5 91 90 53 0.9 147°
860.1-0610-055A1-PM P1BM 6.1 8 49.8 106 105 66 0.9 147°
860.1-0620-024A0-PM P1BM 6.2 8 19.6 79 78 34 0.9 147°
860.1-0620-040A0-PM P1BM 6.2 8 32 91 90 53 0.9 147°
860.1-0620-024A1-PM P1BM 6.2 8 19.6 79 78 34 0.9 147°
860.1-0620-040A1-PM P1BM 6.2 8 32 91 90 53 0.9 147°
860.1-0620-055A1-PM P1BM 6.2 8 50.6 106 105 67 0.9 147°
860.1-0630-024A0-PM P1BM 6.3 8 19.9 79 78 34 0.9 147°
860.1-0630-040A0-PM P1BM 6.3 8 32.5 91 90 53 0.9 147°
860.1-0630-024A1-PM P1BM 6.3 8 19.9 79 78 34 0.9 147°
860.1-0630-040A1-PM P1BM 6.3 8 32.5 91 90 53 0.9 147°
860.1-0630-055A1-PM P1BM 6.3 8 51.4 106 105 67 0.9 147°
860.1-0635-024A1-PM P1BM 6.35 8 20.1 79 78 34 0.9 147°
860.1-0635-040A1-PM P1BM 6.35 8 32.8 91 90 53 0.9 147°
860.1-0635-055A1-PM P1BM 6.35 8 51.8 106 105 67 0.9 147°
860.1-0640-024A0-PM P1BM 6.4 8 20.2 79 78 34 0.9 147°
860.1-0640-040A0-PM P1BM 6.4 8 33 91 90 53 0.9 147°
860.1-0640-024A1-PM P1BM 6.4 8 20.2 79 78 34 0.9 147°
860.1-0640-040A1-PM P1BM 6.4 8 33 91 90 53 0.9 147°
860.1-0640-055A1-PM P1BM 6.4 8 52.2 106 105 67 0.9 147°
860.1-0650-024A0-PM P1BM 6.5 8 20.6 79 77.9 34 1 147°
860.1-0650-040A0-PM P1BM 6.5 8 33.6 91 89.9 53 1 147°
860.1-0650-024A1-PM P1BM 6.5 8 20.6 79 77.9 34 1 147°
860.1-0650-040A1-PM P1BM 6.5 8 33.6 91 89.9 53 1 147°
860.1-0650-055A1-PM P1BM 6.5 8 53.1 106 104.9 67 1 147°
860.1-0660-024A0-PM P1BM 6.6 8 20.9 79 77.9 34 1 147°
860.1-0660-040A0-PM P1BM 6.6 8 34.1 91 89.9 53 1 147°
860.1-0660-024A1-PM P1BM 6.6 8 20.9 79 77.9 34 1 147°
860.1-0660-040A1-PM P1BM 6.6 8 34.1 91 89.9 53 1 147°
860.1-0660-055A1-PM P1BM 6.6 8 53.9 106 104.9 67 1 147°
860.1-0670-024A0-PM P1BM 6.7 8 21.2 79 77.9 34 1 147°
860.1-0670-040A0-PM P1BM 6.7 8 34.6 91 89.9 53 1 147°
860.1-0670-024A1-PM P1BM 6.7 8 21.2 79 77.9 34 1 147°
860.1-0670-040A1-PM P1BM 6.7 8 34.6 91 89.9 53 1 147°
860.1-0670-055A1-PM P1BM 6.7 8 54.7 106 104.9 67 1 147°
860.1-0675-024A1-PM P1BM 6.75 8 21.3 79 77.9 34 1 147°
860.1-0675-040A1-PM P1BM 6.75 8 34.8 91 89.9 53 1 147°
860.1-0675-055A1-PM P1BM 6.75 8 55 106 104.9 67 1 147°
860.1-0680-024A0-PM P1BM 6.8 8 21.5 79 77.9 34 1 147°
860.1-0680-040A0-PM P1BM 6.8 8 35.1 91 89.9 53 1 147°
860.1-0680-024A1-PM P1BM 6.8 8 21.5 79 77.9 34 1 147°
860.1-0680-040A1-PM P1BM 6.8 8 35.1 91 89.9 53 1 147°
860.1-0680-055A1-PM P1BM 6.8 8 55 106 104.9 67 1 147°
860.1-0690-024A0-PM P1BM 6.9 8 21.8 79 77.9 34 1 147°
860.1-0690-040A0-PM P1BM 6.9 8 35.6 91 89.9 53 1 147°
860.1-0690-024A1-PM P1BM 6.9 8 21.8 79 77.9 34 1 147°
860.1-0690-040A1-PM P1BM 6.9 8 35.6 91 89.9 53 1 147°
860.1-0690-055A1-PM P1BM 6.9 8 55 106 104.9 68 1 147°
860.1-0700-024A0-PM P1BM 7 8 22.1 79 77.9 34 1 147°
860.1-0700-040A0-PM P1BM 7 8 36.1 91 89.9 53 1 147°
860.1-0700-024A1-PM P1BM 7 8 22.1 79 77.9 34 1 147°
860.1-0700-040A1-PM P1BM 7 8 36.1 91 89.9 53 1 147°
860.1-0700-055A1-PM P1BM 7 8 55 106 104.9 68 1 147°
860.1-0710-028A0-PM P1BM 7.1 8 22.4 79 77.9 41 1.1 147°
860.1-0710-040A0-PM P1BM 7.1 8 36.6 91 89.9 53 1.1 147°
860.1-0710-028A1-PM P1BM 7.1 8 22.4 79 77.9 41 1.1 147°
860.1-0710-040A1-PM P1BM 7.1 8 36.6 91 89.9 53 1.1 147°
860.1-0710-064A1-PM P1BM 7.1 8 57.9 116 114.9 77 1.1 147°
860.1-0714-028A1-PM P1BM 7.14 8 22.6 79 77.8 41 1.1 147°
860.1-0714-040A1-PM P1BM 7.14 8 36.9 91 89.8 53 1.1 147°
860.1-0714-064A1-PM P1BM 7.14 8 58.3 116 114.8 77 1.1 147°
860.1-0720-028A0-PM P1BM 7.2 8 22.8 79 77.8 41 1.1 147°
860.1-0720-040A0-PM P1BM 7.2 8 37.2 91 89.8 53 1.1 147°
860.1-0720-028A1-PM P1BM 7.2 8 22.8 79 77.8 41 1.1 147°
860.1-0720-040A1-PM P1BM 7.2 8 37.2 91 89.8 53 1.1 147°
860.1-0720-064A1-PM P1BM 7.2 8 58.8 116 114.8 77 1.1 147°
860.1-0730-028A0-PM P1BM 7.3 8 23.1 79 77.8 41 1.1 147°
860.1-0730-040A0-PM P1BM 7.3 8 37.7 91 89.8 53 1.1 147°
860.1-0730-028A1-PM P1BM 7.3 8 23.1 79 77.8 41 1.1 147°
860.1-0730-040A1-PM P1BM 7.3 8 37.7 91 89.8 53 1.1 147°
860.1-0730-064A1-PM P1BM 7.3 8 59.6 116 114.8 77 1.1 147°
860.1-0740-028A0-PM P1BM 7.4 8 23.4 79 77.8 41 1.1 147°
860.1-0740-040A0-PM P1BM 7.4 8 38.2 91 89.8 53 1.1 147°
860.1-0740-028A1-PM P1BM 7.4 8 23.4 79 77.8 41 1.1 147°
860.1-0740-040A1-PM P1BM 7.4 8 38.2 91 89.8 53 1.1 147°
860.1-0740-064A1-PM P1BM 7.4 8 60.4 116 114.8 77 1.1 147°
860.1-0750-028A0-PM P1BM 7.5 8 23.7 79 77.8 41 1.1 147°
860.1-0750-040A0-PM P1BM 7.5 8 38.7 91 89.8 53 1.1 147°
860.1-0750-028A1-PM P1BM 7.5 8 23.7 79 77.8 41 1.1 147°
860.1-0750-040A1-PM P1BM 7.5 8 38.7 91 89.8 53 1.1 147°
860.1-0750-064A1-PM P1BM 7.5 8 61.2 116 114.8 77 1.1 147°
860.1-0754-028A1-PM P1BM 7.54 8 23.8 79 77.8 41 1.1 147°
860.1-0754-040A1-PM P1BM 7.54 8 38.9 91 89.8 53 1.1 147°
860.1-0760-028A0-PM P1BM 7.6 8 24 79 77.8 41 1.1 147°
860.1-0760-028A1-PM P1BM 7.6 8 24 79 77.8 41 1.1 147°
860.1-0760-040A1-PM P1BM 7.6 8 39.2 91 89.8 53 1.1 147°
860.1-0760-064A1-PM P1BM 7.6 8 62 116 114.8 77 1.1 147°
860.1-0770-028A0-PM P1BM 7.7 8 24.3 79 77.8 41 1.1 147°
860.1-0770-040A0-PM P1BM 7.7 8 39.7 91 89.8 53 1.1 147°
860.1-0770-028A1-PM P1BM 7.7 8 24.3 79 77.8 41 1.1 147°
860.1-0770-040A1-PM P1BM 7.7 8 39.7 91 89.8 53 1.1 147°
860.1-0770-064A1-PM P1BM 7.7 8 62.8 116 114.8 78 1.1 147°
860.1-0780-028A0-PM P1BM 7.8 8 24.7 79 77.7 41 1.2 147°
860.1-0780-040A0-PM P1BM 7.8 8 40 91 89.7 53 1.2 147°
860.1-0780-028A1-PM P1BM 7.8 8 24.7 79 77.7 41 1.2 147°
860.1-0780-040A1-PM P1BM 7.8 8 40 91 89.7 53 1.2 147°
860.1-0780-064A1-PM P1BM 7.8 8 63.7 116 114.7 78 1.2 147°
860.1-0790-028A0-PM P1BM 7.9 8 25 79 77.7 41 1.2 147°
860.1-0790-040A0-PM P1BM 7.9 8 40 91 89.7 53 1.2 147°
860.1-0790-028A1-PM P1BM 7.9 8 25 79 77.7 41 1.2 147°
860.1-0790-040A1-PM P1BM 7.9 8 40 91 89.7 53 1.2 147°
860.1-0794-028A1-PM P1BM 7.94 8 25.1 79 77.7 41 1.2 147°
860.1-0794-040A1-PM P1BM 7.94 8 40 91 89.7 53 1.2 147°
860.1-0794-064A1-PM P1BM 7.94 8 64 116 114.7 78 1.2 147°
860.1-0800-028A0-PM P1BM 8 8 25.3 79 77.7 41 1.2 147°
860.1-0800-040A0-PM P1BM 8 8 40 91 89.7 53 1.2 147°
860.1-0800-028A1-PM P1BM 8 8 25.3 79 77.7 41 1.2 147°
860.1-0800-040A1-PM P1BM 8 8 40 91 89.7 53 1.2 147°
860.1-0800-064A1-PM P1BM 8 8 64 116 114.7 78 1.2 147°
860.1-0810-031A0-PM P1BM 8.1 10 25.6 89 87.7 47 1.2 147°
860.1-0810-045A0-PM P1BM 8.1 10 41.8 103 101.7 61 1.2 147°
860.1-0810-031A1-PM P1BM 8.1 10 25.6 89 87.7 47 1.2 147°
860.1-0810-045A1-PM P1BM 8.1 10 41.8 103 101.7 61 1.2 147°
860.1-0810-080A1-PM P1BM 8.1 10 66.1 139 137.7 94 1.2 147°
860.1-0815-045A1-PM P1BM 8.15 10 42.1 103 101.7 61 1.2 147°
860.1-0820-031A0-PM P1BM 8.2 10 25.9 89 87.7 47 1.2 147°
860.1-0820-045A0-PM P1BM 8.2 10 42.3 103 101.7 61 1.2 147°
860.1-0820-031A1-PM P1BM 8.2 10 25.9 89 87.7 47 1.2 147°
860.1-0820-045A1-PM P1BM 8.2 10 42.3 103 101.7 61 1.2 147°
860.1-0820-080A1-PM P1BM 8.2 10 66.9 139 137.7 94 1.2 147°
860.1-0830-031A0-PM P1BM 8.3 10 26.3 89 87.6 47 1.2 147°
860.1-0830-045A0-PM P1BM 8.3 10 42.9 103 101.6 61 1.2 147°
860.1-0830-031A1-PM P1BM 8.3 10 26.3 89 87.6 47 1.2 147°
860.1-0830-045A1-PM P1BM 8.3 10 42.9 103 101.6 61 1.2 147°
860.1-0830-080A1-PM P1BM 8.3 10 67.8 139 137.6 94 1.2 147°
860.1-0833-045A1-PM P1BM 8.33 10 43 103 101.6 61 1.2 147°
860.1-0840-031A0-PM P1BM 8.4 10 26.6 89 87.6 47 1.2 147°
860.1-0840-045A0-PM P1BM 8.4 10 43.4 103 101.6 61 1.2 147°
860.1-0840-031A1-PM P1BM 8.4 10 26.6 89 87.6 47 1.2 147°
860.1-0840-045A1-PM P1BM 8.4 10 43.4 103 101.6 61 1.2 147°
860.1-0840-080A1-PM P1BM 8.4 10 68.6 139 137.6 94 1.2 147°
860.1-0850-031A0-PM P1BM 8.5 10 26.9 89 87.6 47 1.3 147°
860.1-0850-045A0-PM P1BM 8.5 10 43.9 103 101.6 61 1.3 147°
860.1-0850-031A1-PM P1BM 8.5 10 26.9 89 87.6 47 1.3 147°
860.1-0850-045A1-PM P1BM 8.5 10 43.9 103 101.6 61 1.3 147°
860.1-0850-080A1-PM P1BM 8.5 10 69.4 139 137.6 95 1.3 147°
860.1-0860-031A0-PM P1BM 8.6 10 27.2 89 87.6 47 1.3 147°
860.1-0860-045A0-PM P1BM 8.6 10 44.4 103 101.6 61 1.3 147°
860.1-0860-031A1-PM P1BM 8.6 10 27.2 89 87.6 47 1.3 147°
860.1-0860-045A1-PM P1BM 8.6 10 44.4 103 101.6 61 1.3 147°
860.1-0860-080A1-PM P1BM 8.6 10 70.2 139 137.6 95 1.3 147°
860.1-0870-031A0-PM P1BM 8.7 10 27.5 89 87.6 47 1.3 147°
860.1-0870-045A0-PM P1BM 8.7 10 44.9 103 101.6 61 1.3 147°
860.1-0870-031A1-PM P1BM 8.7 10 27.5 89 87.6 47 1.3 147°
860.1-0870-045A1-PM P1BM 8.7 10 44.9 103 101.6 61 1.3 147°
860.1-0870-080A1-PM P1BM 8.7 10 71 139 137.6 95 1.3 147°
860.1-0873-031A1-PM P1BM 8.73 10 27.6 89 87.6 47 1.3 147°
860.1-0873-045A1-PM P1BM 8.73 10 45 103 101.6 61 1.3 147°
860.1-0873-080A1-PM P1BM 8.73 10 71.3 139 137.6 95 1.3 147°
860.1-0880-031A0-PM P1BM 8.8 10 27.8 89 87.6 47 1.3 147°
860.1-0880-045A0-PM P1BM 8.8 10 45 103 101.6 61 1.3 147°
860.1-0880-031A1-PM P1BM 8.8 10 27.8 89 87.6 47 1.3 147°
860.1-0880-045A1-PM P1BM 8.8 10 45 103 101.6 61 1.3 147°
860.1-0880-080A1-PM P1BM 8.8 10 71.8 139 137.6 95 1.3 147°
860.1-0890-031A1-PM P1BM 8.9 10 28.1 89 87.6 47 1.3 147°
860.1-0890-045A1-PM P1BM 8.9 10 45 103 101.6 61 1.3 147°
860.1-0890-080A1-PM P1BM 8.9 10 72.6 139 137.6 95 1.3 147°
860.1-0900-031A0-PM P1BM 9 10 28.5 89 87.5 47 1.3 147°
860.1-0900-045A0-PM P1BM 9 10 45 103 101.5 61 1.3 147°
860.1-0900-031A1-PM P1BM 9 10 28.5 89 87.5 47 1.3 147°
860.1-0900-045A1-PM P1BM 9 10 45 103 101.5 61 1.3 147°
860.1-0900-080A1-PM P1BM 9 10 73.5 139 137.5 95 1.3 147°
860.1-0910-031A0-PM P1BM 9.1 10 28.8 89 87.5 47 1.3 147°
860.1-0910-031A1-PM P1BM 9.1 10 28.8 89 87.5 47 1.3 147°
860.1-0910-045A1-PM P1BM 9.1 10 45 103 101.5 61 1.3 147°
860.1-0910-080A1-PM P1BM 9.1 10 74.3 139 137.5 95 1.3 147°
860.1-0913-031A1-PM P1BM 9.13 10 28.9 89 87.5 47 1.4 147°
860.1-0920-031A0-PM P1BM 9.2 10 29.1 89 87.5 47 1.4 147°
860.1-0920-045A0-PM P1BM 9.2 10 45 103 101.5 61 1.4 147°
860.1-0920-031A1-PM P1BM 9.2 10 29.1 89 87.5 47 1.4 147°
860.1-0920-045A1-PM P1BM 9.2 10 45 103 101.5 61 1.4 147°
860.1-0920-080A1-PM P1BM 9.2 10 75.1 139 137.5 95 1.4 147°
860.1-0930-031A0-PM P1BM 9.3 10 29.4 89 87.5 47 1.4 147°
860.1-0930-045A0-PM P1BM 9.3 10 45 103 101.5 61 1.4 147°
860.1-0930-031A1-PM P1BM 9.3 10 29.4 89 87.5 47 1.4 147°
860.1-0930-045A1-PM P1BM 9.3 10 45 103 101.5 61 1.4 147°
860.1-0930-080A1-PM P1BM 9.3 10 75.9 139 137.5 95 1.4 147°
860.1-0940-031A0-PM P1BM 9.4 10 29.7 89 87.5 47 1.4 147°
860.1-0940-031A1-PM P1BM 9.4 10 29.7 89 87.5 47 1.4 147°
860.1-0940-045A1-PM P1BM 9.4 10 45 103 101.5 61 1.4 147°
860.1-0940-080A1-PM P1BM 9.4 10 76.7 139 137.5 96 1.4 147°
860.1-0950-031A0-PM P1BM 9.5 10 30 89 87.5 47 1.4 147°
860.1-0950-045A0-PM P1BM 9.5 10 45 103 101.5 61 1.4 147°
860.1-0950-031A1-PM P1BM 9.5 10 30 89 87.5 47 1.4 147°
860.1-0950-045A1-PM P1BM 9.5 10 45 103 101.5 61 1.4 147°
860.1-0950-080A1-PM P1BM 9.5 10 77.5 139 137.5 96 1.4 147°
860.1-0952-031A1-PM P1BM 9.52 10 30.1 89 87.5 47 1.4 147°
860.1-0952-045A1-PM P1BM 9.52 10 45 103 101.5 61 1.4 147°
860.1-0952-080A1-PM P1BM 9.52 10 77.7 139 137.5 96 1.4 147°
860.1-0955-045A1-PM P1BM 9.55 10 45 103 101.5 61 1.4 147°
860.1-0960-031A0-PM P1BM 9.6 10 30.3 89 87.5 47 1.4 147°
860.1-0960-045A0-PM P1BM 9.6 10 45 103 101.5 61 1.4 147°
860.1-0960-031A1-PM P1BM 9.6 10 30.3 89 87.5 47 1.4 147°
860.1-0960-045A1-PM P1BM 9.6 10 45 103 101.5 61 1.4 147°
860.1-0960-080A1-PM P1BM 9.6 10 78.3 139 137.5 96 1.4 147°
860.1-0970-031A0-PM P1BM 9.7 10 30.7 89 87.4 47 1.4 147°
860.1-0970-045A0-PM P1BM 9.7 10 45 103 101.4 61 1.4 147°
860.1-0970-031A1-PM P1BM 9.7 10 30.7 89 87.4 47 1.4 147°
860.1-0970-045A1-PM P1BM 9.7 10 45 103 101.4 61 1.4 147°
860.1-0970-080A1-PM P1BM 9.7 10 79.2 139 137.4 96 1.4 147°
860.1-0980-031A0-PM P1BM 9.8 10 31 89 87.4 47 1.5 147°
860.1-0980-045A0-PM P1BM 9.8 10 45 103 101.4 61 1.5 147°
860.1-0980-031A1-PM P1BM 9.8 10 31 89 87.4 47 1.5 147°
860.1-0980-045A1-PM P1BM 9.8 10 45 103 101.4 61 1.5 147°
860.1-0980-080A1-PM P1BM 9.8 10 80 139 137.4 96 1.5 147°
860.1-0990-031A0-PM P1BM 9.9 10 31 89 87.4 47 1.5 147°
860.1-0990-045A0-PM P1BM 9.9 10 45 103 101.4 61 1.5 147°
860.1-0990-031A1-PM P1BM 9.9 10 31 89 87.4 47 1.5 147°
860.1-0990-045A1-PM P1BM 9.9 10 45 103 101.4 61 1.5 147°
860.1-0990-080A1-PM P1BM 9.9 10 80 139 137.4 96 1.5 147°
860.1-0992-031A1-PM P1BM 9.92 10 31 89 87.4 47 1.5 147°
860.1-0992-045A1-PM P1BM 9.92 10 45 103 101.4 61 1.5 147°
860.1-0992-080A1-PM P1BM 9.92 10 80 139 137.4 96 1.5 147°
860.1-1000-031A0-PM P1BM 10 10 31 89 87.4 47 1.5 147°
860.1-1000-045A0-PM P1BM 10 10 45 103 101.4 61 1.5 147°
860.1-1000-031A1-PM P1BM 10 10 31 89 87.4 47 1.5 147°
860.1-1000-045A1-PM P1BM 10 10 45 103 101.4 61 1.5 147°
860.1-1000-080A1-PM P1BM 10 10 80 139 137.4 96 1.5 147°
860.1-1010-037A0-PM P1BM 10.1 12 31.9 102 100.4 55 1.5 147°
860.1-1010-053A0-PM P1BM 10.1 12 52.1 118 116.4 71 1.5 147°
860.1-1010-037A1-PM P1BM 10.1 12 31.9 102 100.4 55 1.5 147°
860.1-1010-053A1-PM P1BM 10.1 12 52.1 118 116.4 71 1.5 147°
860.1-1010-098A1-PM P1BM 10.1 12 82.4 163 161.4 114 1.5 147°
860.1-1020-037A0-PM P1BM 10.2 12 32.3 102 100.3 55 1.5 147°
860.1-1020-053A0-PM P1BM 10.2 12 52.7 118 116.3 71 1.5 147°
860.1-1020-037A1-PM P1BM 10.2 12 32.3 102 100.3 55 1.5 147°
860.1-1020-053A1-PM P1BM 10.2 12 52.7 118 116.3 71 1.5 147°
860.1-1020-098A1-PM P1BM 10.2 12 83.3 163 161.3 114 1.5 147°
860.1-1030-037A0-PM P1BM 10.3 12 32.6 102 100.3 55 1.5 147°
860.1-1030-053A0-PM P1BM 10.3 12 53 118 116.3 71 1.5 147°
860.1-1030-037A1-PM P1BM 10.3 12 32.6 102 100.3 55 1.5 147°
860.1-1030-053A1-PM P1BM 10.3 12 53 118 116.3 71 1.5 147°
860.1-1030-098A1-PM P1BM 10.3 12 84.1 163 161.3 114 1.5 147°
860.1-1032-037A1-PM P1BM 10.32 12 32.6 102 100.3 55 1.5 147°
860.1-1032-053A1-PM P1BM 10.32 12 53 118 116.3 71 1.5 147°
860.1-1032-098A1-PM P1BM 10.32 12 84.2 163 161.3 114 1.5 147°
860.1-1040-037A0-PM P1BM 10.4 12 32.9 102 100.3 55 1.5 147°
860.1-1040-053A0-PM P1BM 10.4 12 53 118 116.3 71 1.5 147°
860.1-1040-037A1-PM P1BM 10.4 12 32.9 102 100.3 55 1.5 147°
860.1-1040-053A1-PM P1BM 10.4 12 53 118 116.3 71 1.5 147°
860.1-1040-098A1-PM P1BM 10.4 12 84.9 163 161.3 115 1.5 147°
860.1-1045-053A1-PM P1BM 10.45 12 53 118 116.3 71 1.5 147°
860.1-1050-037A0-PM P1BM 10.5 12 33.2 102 100.3 55 1.6 147°
860.1-1050-053A0-PM P1BM 10.5 12 53 118 116.3 71 1.6 147°
860.1-1050-037A1-PM P1BM 10.5 12 33.2 102 100.3 55 1.6 147°
860.1-1050-053A1-PM P1BM 10.5 12 53 118 116.3 71 1.6 147°
860.1-1050-098A1-PM P1BM 10.5 12 85.7 163 161.3 115 1.6 147°
860.1-1060-037A0-PM P1BM 10.6 12 33.5 102 100.3 55 1.6 147°
860.1-1060-053A0-PM P1BM 10.6 12 53 118 116.3 71 1.6 147°
860.1-1060-037A1-PM P1BM 10.6 12 33.5 102 100.3 55 1.6 147°
860.1-1060-053A1-PM P1BM 10.6 12 53 118 116.3 71 1.6 147°
860.1-1070-037A0-PM P1BM 10.7 12 33.8 102 100.3 55 1.6 147°
860.1-1070-053A0-PM P1BM 10.7 12 53 118 116.3 71 1.6 147°
860.1-1070-037A1-PM P1BM 10.7 12 33.8 102 100.3 55 1.6 147°
860.1-1070-053A1-PM P1BM 10.7 12 53 118 116.3 71 1.6 147°
860.1-1070-098A1-PM P1BM 10.7 12 87.3 163 161.3 115 1.6 147°
860.1-1071-037A1-PM P1BM 10.71 12 33.9 102 100.3 55 1.6 147°
860.1-1071-053A1-PM P1BM 10.71 12 53 118 116.3 71 1.6 147°
860.1-1080-037A0-PM P1BM 10.8 12 34.2 102 100.2 55 1.6 147°
860.1-1080-053A0-PM P1BM 10.8 12 53 118 116.2 71 1.6 147°
860.1-1080-037A1-PM P1BM 10.8 12 34.2 102 100.2 55 1.6 147°
860.1-1080-053A1-PM P1BM 10.8 12 53 118 116.2 71 1.6 147°
860.1-1080-098A1-PM P1BM 10.8 12 88.2 163 161.2 115 1.6 147°
860.1-1090-037A0-PM P1BM 10.9 12 34.5 102 100.2 55 1.6 147°
860.1-1090-037A1-PM P1BM 10.9 12 34.5 102 100.2 55 1.6 147°
860.1-1090-053A1-PM P1BM 10.9 12 53 118 116.2 71 1.6 147°
860.1-1100-037A0-PM P1BM 11 12 34.8 102 100.2 55 1.6 147°
860.1-1100-053A0-PM P1BM 11 12 53 118 116.2 71 1.6 147°
860.1-1100-037A1-PM P1BM 11 12 34.8 102 100.2 55 1.6 147°
860.1-1100-053A1-PM P1BM 11 12 53 118 116.2 71 1.6 147°
860.1-1100-098A1-PM P1BM 11 12 89.8 163 161.2 115 1.6 147°
860.1-1110-037A0-PM P1BM 11.1 12 35.1 102 100.2 55 1.6 147°
860.1-1110-053A0-PM P1BM 11.1 12 53 118 116.2 71 1.6 147°
860.1-1110-037A1-PM P1BM 11.1 12 35.1 102 100.2 55 1.6 147°
860.1-1110-053A1-PM P1BM 11.1 12 53 118 116.2 71 1.6 147°
860.1-1110-098A1-PM P1BM 11.1 12 90.6 163 161.2 115 1.6 147°
860.1-1111-037A1-PM P1BM 11.11 12 35.1 102 100.2 55 1.6 147°
860.1-1111-053A1-PM P1BM 11.11 12 53 118 116.2 71 1.6 147°
860.1-1111-098A1-PM P1BM 11.11 12 90.7 163 161.2 115 1.6 147°
860.1-1120-037A0-PM P1BM 11.2 12 35.4 102 100.2 55 1.7 147°
860.1-1120-053A0-PM P1BM 11.2 12 53 118 116.2 71 1.7 147°
860.1-1120-037A1-PM P1BM 11.2 12 35.4 102 100.2 55 1.7 147°
860.1-1120-053A1-PM P1BM 11.2 12 53 118 116.2 71 1.7 147°
860.1-1120-098A1-PM P1BM 11.2 12 91.4 163 161.2 115 1.7 147°
860.1-1130-037A1-PM P1BM 11.3 12 35.7 102 100.2 55 1.7 147°
860.1-1130-053A1-PM P1BM 11.3 12 53 118 116.2 71 1.7 147°
860.1-1130-098A1-PM P1BM 11.3 12 92.2 163 161.2 115 1.7 147°
860.1-1140-037A1-PM P1BM 11.4 12 36.1 102 100.1 55 1.7 147°
860.1-1140-053A1-PM P1BM 11.4 12 53 118 116.1 71 1.7 147°
860.1-1140-098A1-PM P1BM 11.4 12 93.1 163 161.1 115 1.7 147°
860.1-1150-037A0-PM P1BM 11.5 12 36.4 102 100.1 55 1.7 147°
860.1-1150-053A0-PM P1BM 11.5 12 53 118 116.1 71 1.7 147°
860.1-1150-037A1-PM P1BM 11.5 12 36.4 102 100.1 55 1.7 147°
860.1-1150-053A1-PM P1BM 11.5 12 53 118 116.1 71 1.7 147°
860.1-1150-098A1-PM P1BM 11.5 12 93.9 163 161.1 116 1.7 147°
860.1-1151-037A1-PM P1BM 11.51 12 36.4 102 100.1 55 1.7 147°
860.1-1151-053A1-PM P1BM 11.51 12 53 118 116.1 71 1.7 147°
860.1-1160-037A0-PM P1BM 11.6 12 36.7 102 100.1 55 1.7 147°
860.1-1160-037A1-PM P1BM 11.6 12 36.7 102 100.1 55 1.7 147°
860.1-1160-053A1-PM P1BM 11.6 12 53 118 116.1 71 1.7 147°
860.1-1170-037A0-PM P1BM 11.7 12 37 102 100.1 55 1.7 147°
860.1-1170-053A0-PM P1BM 11.7 12 53 118 116.1 71 1.7 147°
860.1-1170-037A1-PM P1BM 11.7 12 37 102 100.1 55 1.7 147°
860.1-1170-053A1-PM P1BM 11.7 12 53 118 116.1 71 1.7 147°
860.1-1170-098A1-PM P1BM 11.7 12 95.5 163 161.1 116 1.7 147°
860.1-1180-037A0-PM P1BM 11.8 12 37 102 100.1 55 1.7 147°
860.1-1180-053A0-PM P1BM 11.8 12 53 118 116.1 71 1.7 147°
860.1-1180-037A1-PM P1BM 11.8 12 37 102 100.1 55 1.7 147°
860.1-1180-053A1-PM P1BM 11.8 12 53 118 116.1 71 1.7 147°
860.1-1180-098A1-PM P1BM 11.8 12 96.3 163 161.1 116 1.7 147°
860.1-1190-037A1-PM P1BM 11.9 12 37 102 100.1 55 1.8 147°
860.1-1190-053A1-PM P1BM 11.9 12 53 118 116.1 71 1.8 147°
860.1-1190-098A1-PM P1BM 11.9 12 97.1 163 161.1 116 1.8 147°
860.1-1200-037A0-PM P1BM 12 12 37 102 100 55 1.8 147°
860.1-1200-053A0-PM P1BM 12 12 53 118 116 71 1.8 147°
860.1-1200-037A1-PM P1BM 12 12 37 102 100 55 1.8 147°
860.1-1200-053A1-PM P1BM 12 12 53 118 116 71 1.8 147°
860.1-1200-098A1-PM P1BM 12 12 98 163 161 116 1.8 147°
860.1-1210-040A0-PM P1BM 12.1 14 38.3 107 105 60 1.8 147°
860.1-1210-057A0-PM P1BM 12.1 14 57 124 122 77 1.8 147°
860.1-1210-040A1-PM P1BM 12.1 14 38.3 107 105 60 1.8 147°
860.1-1210-057A1-PM P1BM 12.1 14 57 124 122 77 1.8 147°
860.1-1210-115A1-PM P1BM 12.1 14 98.8 182 180 133 1.8 147°
860.1-1220-040A0-PM P1BM 12.2 14 38.6 107 105 60 1.8 147°
860.1-1220-057A0-PM P1BM 12.2 14 57 124 122 77 1.8 147°
860.1-1220-040A1-PM P1BM 12.2 14 38.6 107 105 60 1.8 147°
860.1-1220-057A1-PM P1BM 12.2 14 57 124 122 77 1.8 147°
860.1-1220-115A1-PM P1BM 12.2 14 99.6 182 180 133 1.8 147°
860.1-1230-040A0-PM P1BM 12.3 14 38.9 107 105 60 1.8 147°
860.1-1230-057A0-PM P1BM 12.3 14 57 124 122 77 1.8 147°
860.1-1230-040A1-PM P1BM 12.3 14 38.9 107 105 60 1.8 147°
860.1-1230-057A1-PM P1BM 12.3 14 57 124 122 77 1.8 147°
860.1-1230-115A1-PM P1BM 12.3 14 100.4 182 180 133 1.8 147°
860.1-1240-040A0-PM P1BM 12.4 14 39.2 107 105 60 1.8 147°
860.1-1240-057A1-PM P1BM 12.4 14 57 124 122 77 1.8 147°
860.1-1240-115A1-PM P1BM 12.4 14 101.2 182 180 133 1.8 147°
860.1-1250-040A0-PM P1BM 12.5 14 39.5 107 105 60 1.9 147°
860.1-1250-057A0-PM P1BM 12.5 14 57 124 122 77 1.9 147°
860.1-1250-040A1-PM P1BM 12.5 14 39.5 107 105 60 1.9 147°
860.1-1250-057A1-PM P1BM 12.5 14 57 124 122 77 1.9 147°
860.1-1250-115A1-PM P1BM 12.5 14 102 182 180 133 1.9 147°
860.1-1260-040A0-PM P1BM 12.6 14 39.9 107 104.9 60 1.9 147°
860.1-1260-057A0-PM P1BM 12.6 14 57 124 121.9 77 1.9 147°
860.1-1260-040A1-PM P1BM 12.6 14 39.9 107 104.9 60 1.9 147°
860.1-1270-040A0-PM P1BM 12.7 14 40 107 104.9 60 1.9 147°
860.1-1270-057A0-PM P1BM 12.7 14 57 124 121.9 77 1.9 147°
860.1-1270-040A1-PM P1BM 12.7 14 40 107 104.9 60 1.9 147°
860.1-1270-057A1-PM P1BM 12.7 14 57 124 121.9 77 1.9 147°
860.1-1270-115A1-PM P1BM 12.7 14 103.7 182 179.9 134 1.9 147°
860.1-1280-040A0-PM P1BM 12.8 14 40 107 104.9 60 1.9 147°
860.1-1280-040A1-PM P1BM 12.8 14 40 107 104.9 60 1.9 147°
860.1-1280-057A1-PM P1BM 12.8 14 57 124 121.9 77 1.9 147°
860.1-1280-115A1-PM P1BM 12.8 14 104.5 182 179.9 134 1.9 147°
860.1-1300-040A0-PM P1BM 13 14 40 107 104.9 60 1.9 147°
860.1-1300-057A0-PM P1BM 13 14 57 124 121.9 77 1.9 147°
860.1-1300-040A1-PM P1BM 13 14 40 107 104.9 60 1.9 147°
860.1-1300-057A1-PM P1BM 13 14 57 124 121.9 77 1.9 147°
860.1-1300-115A1-PM P1BM 13 14 106.1 182 179.9 134 1.9 147°
860.1-1310-040A1-PM P1BM 13.1 14 40 107 104.9 60 1.9 147°
860.1-1310-057A1-PM P1BM 13.1 14 57 124 121.9 77 1.9 147°
860.1-1310-115A1-PM P1BM 13.1 14 106.9 182 179.9 134 1.9 147°
860.1-1325-040A1-PM P1BM 13.25 14 40 107 104.9 60 2 147°
860.1-1325-057A1-PM P1BM 13.25 14 57 124 121.9 77 2 147°
860.1-1325-115A1-PM P1BM 13.25 14 108.1 182 179.9 134 2 147°
860.1-1350-040A0-PM P1BM 13.5 14 40 107 104.8 60 2 147°
860.1-1350-057A0-PM P1BM 13.5 14 57 124 121.8 77 2 147°
860.1-1350-040A1-PM P1BM 13.5 14 40 107 104.8 60 2 147°
860.1-1350-057A1-PM P1BM 13.5 14 57 124 121.8 77 2 147°
860.1-1350-115A1-PM P1BM 13.5 14 110.2 182 179.8 134 2 147°
860.1-1375-040A1-PM P1BM 13.75 14 40 107 104.8 60 2 147°
860.1-1375-057A1-PM P1BM 13.75 14 57 124 121.8 77 2 147°
860.1-1380-040A0-PM P1BM 13.8 14 40 107 104.8 60 2 147°
860.1-1380-057A0-PM P1BM 13.8 14 57 124 121.8 77 2 147°
860.1-1380-040A1-PM P1BM 13.8 14 40 107 104.8 60 2 147°
860.1-1380-057A1-PM P1BM 13.8 14 57 124 121.8 77 2 147°
860.1-1380-115A1-PM P1BM 13.8 14 112.6 182 179.8 134 2 147°
860.1-1389-057A1-PM P1BM 13.89 14 57 124 121.8 77 2.1 147°
860.1-1400-040A0-PM P1BM 14 14 40 107 104.7 60 2.1 147°
860.1-1400-057A0-PM P1BM 14 14 57 124 121.7 77 2.1 147°
860.1-1400-040A1-PM P1BM 14 14 40 107 104.7 60 2.1 147°
860.1-1400-057A1-PM P1BM 14 14 57 124 121.7 77 2.1 147°
860.1-1400-115A1-PM P1BM 14 14 114.3 182 179.7 134 2.1 147°
860.1-1425-044A0-PM P1BM 14.25 16 44 115 112.7 65 2.1 147°
860.1-1425-062A0-PM P1BM 14.25 16 62 133 130.7 83 2.1 147°
860.1-1425-044A1-PM P1BM 14.25 16 44 115 112.7 65 2.1 147°
860.1-1425-062A1-PM P1BM 14.25 16 62 133 130.7 83 2.1 147°
860.1-1429-044A1-PM P1BM 14.29 16 44 115 112.7 65 2.1 147°
860.1-1429-062A1-PM P1BM 14.29 16 62 133 130.7 83 2.1 147°
860.1-1450-044A0-PM P1BM 14.5 16 44 115 112.7 65 2.1 147°
860.1-1450-062A0-PM P1BM 14.5 16 62 133 130.7 83 2.1 147°
860.1-1450-044A1-PM P1BM 14.5 16 44 115 112.7 65 2.1 147°
860.1-1450-062A1-PM P1BM 14.5 16 62 133 130.7 83 2.1 147°
860.1-1469-044A1-PM P1BM 14.69 16 44 115 112.7 65 2.2 147°
860.1-1469-062A1-PM P1BM 14.69 16 62 133 130.7 83 2.2 147°
860.1-1475-062A1-PM P1BM 14.75 16 62 133 130.6 83 2.2 147°
860.1-1480-062A1-PM P1BM 14.8 16 62 133 130.6 83 2.2 147°
860.1-1500-044A0-PM P1BM 15 16 44 115 112.6 65 2.2 147°
860.1-1500-062A0-PM P1BM 15 16 62 133 130.6 83 2.2 147°
860.1-1500-044A1-PM P1BM 15 16 44 115 112.6 65 2.2 147°
860.1-1500-062A1-PM P1BM 15 16 62 133 130.6 83 2.2 147°
860.1-1510-044A0-PM P1BM 15.1 16 44 115 112.6 65 2.2 147°
860.1-1510-062A0-PM P1BM 15.1 16 62 133 130.6 83 2.2 147°
860.1-1510-044A1-PM P1BM 15.1 16 44 115 112.6 65 2.2 147°
860.1-1510-062A1-PM P1BM 15.1 16 62 133 130.6 83 2.2 147°
860.1-1550-044A0-PM P1BM 15.5 16 44 115 112.5 65 2.3 147°
860.1-1550-044A1-PM P1BM 15.5 16 44 115 112.5 65 2.3 147°
860.1-1550-062A1-PM P1BM 15.5 16 62 133 130.5 83 2.3 147°
860.1-1580-044A0-PM P1BM 15.8 16 44 115 112.5 65 2.3 147°
860.1-1580-062A0-PM P1BM 15.8 16 62 133 130.5 83 2.3 147°
860.1-1580-044A1-PM P1BM 15.8 16 44 115 112.5 65 2.3 147°
860.1-1580-062A1-PM P1BM 15.8 16 62 133 130.5 83 2.3 147°
860.1-1587-044A1-PM P1BM 15.87 16 44 115 112.5 65 2.4 147°
860.1-1587-062A1-PM P1BM 15.87 16 62 133 130.5 83 2.4 147°
860.1-1600-044A0-PM P1BM 16 16 44 115 112.5 65 2.4 147°
860.1-1600-062A0-PM P1BM 16 16 62 133 130.5 83 2.4 147°
860.1-1600-044A1-PM P1BM 16 16 44 115 112.5 65 2.4 147°
860.1-1600-062A1-PM P1BM 16 16 62 133 130.5 83 2.4 147°
860.1-1600-133A1-PM P1BM 16 16 130.5 204 201.5 154 2.4 147°
860.1-1610-050A1-PM P1BM 16.1 18 50 123 120.4 73 2.4 147°
860.1-1610-070A1-PM P1BM 16.1 18 70 143 140.4 93 2.4 147°
860.1-1650-050A0-PM P1BM 16.5 18 50 123 120.4 73 2.4 147°
860.1-1650-070A0-PM P1BM 16.5 18 70 143 140.4 93 2.4 147°
860.1-1650-050A1-PM P1BM 16.5 18 50 123 120.4 73 2.4 147°
860.1-1650-070A1-PM P1BM 16.5 18 70 143 140.4 93 2.4 147°
860.1-1667-050A1-PM P1BM 16.67 18 50 123 120.4 73 2.5 147°
860.1-1667-070A1-PM P1BM 16.67 18 70 143 140.4 93 2.5 147°
860.1-1680-050A1-PM P1BM 16.8 18 50 123 120.4 73 2.5 147°
860.1-1680-070A1-PM P1BM 16.8 18 70 143 140.4 93 2.5 147°
860.1-1700-050A0-PM P1BM 17 18 50 123 120.3 73 2.5 147°
860.1-1700-070A0-PM P1BM 17 18 70 143 140.3 93 2.5 147°
860.1-1700-050A1-PM P1BM 17 18 50 123 120.3 73 2.5 147°
860.1-1700-070A1-PM P1BM 17 18 70 143 140.3 93 2.5 147°
860.1-1750-050A0-PM P1BM 17.5 18 50 123 120.3 73 2.6 147°
860.1-1750-070A0-PM P1BM 17.5 18 70 143 140.3 93 2.6 147°
860.1-1750-050A1-PM P1BM 17.5 18 50 123 120.3 73 2.6 147°
860.1-1750-070A1-PM P1BM 17.5 18 70 143 140.3 93 2.6 147°
860.1-1780-070A1-PM P1BM 17.8 18 70 143 140.2 93 2.6 147°
860.1-1800-050A0-PM P1BM 18 18 50 123 120.2 73 2.7 147°
860.1-1800-070A0-PM P1BM 18 18 70 143 140.2 93 2.7 147°
860.1-1800-050A1-PM P1BM 18 18 50 123 120.2 73 2.7 147°
860.1-1800-070A1-PM P1BM 18 18 70 143 140.2 93 2.7 147°
860.1-1850-055A0-PM P1BM 18.5 20 55 131 128.1 79 2.7 147°
860.1-1850-055A1-PM P1BM 18.5 20 55 131 128.1 79 2.7 147°
860.1-1880-055A1-PM P1BM 18.8 20 55 131 128.1 79 2.8 147°
860.1-1880-077A1-PM P1BM 18.8 20 77 153 150.1 101 2.8 147°
860.1-1900-055A0-PM P1BM 19 20 55 131 128.1 79 2.8 147°
860.1-1900-055A1-PM P1BM 19 20 55 131 128.1 79 2.8 147°
860.1-1900-077A1-PM P1BM 19 20 77 153 150.1 101 2.8 147°
860.1-1905-055A1-PM P1BM 19.05 20 55 131 128 79 2.8 147°
860.1-1905-077A1-PM P1BM 19.05 20 77 153 150 101 2.8 147°
860.1-1980-055A1-PM P1BM 19.8 20 55 131 128 79 2.9 147°
860.1-2000-055A0-PM P1BM 20 20 55 131 127.9 79 3 147°
860.1-2000-077A0-PM P1BM 20 20 77 153 149.9 101 3 147°
860.1-2000-055A1-PM P1BM 20 20 55 131 127.9 79 3 147°
860.1-2000-077A1-PM P1BM 20 20 77 153 149.9 101 3 147°
861深孔钻头3-20mm深孔加工高性能钻头
在深孔钻削时实现高稳定性加工，具备高速高效的特点，钻孔深度可达30倍刀具直径。钻头直径：3-20mm 孔公差：IT8-IT9 钻削长度：12、15、20、30倍直径
