simmill AX 小内孔整体硬质合金铣槽、铣螺纹、倒角、键槽铣削

, , ,

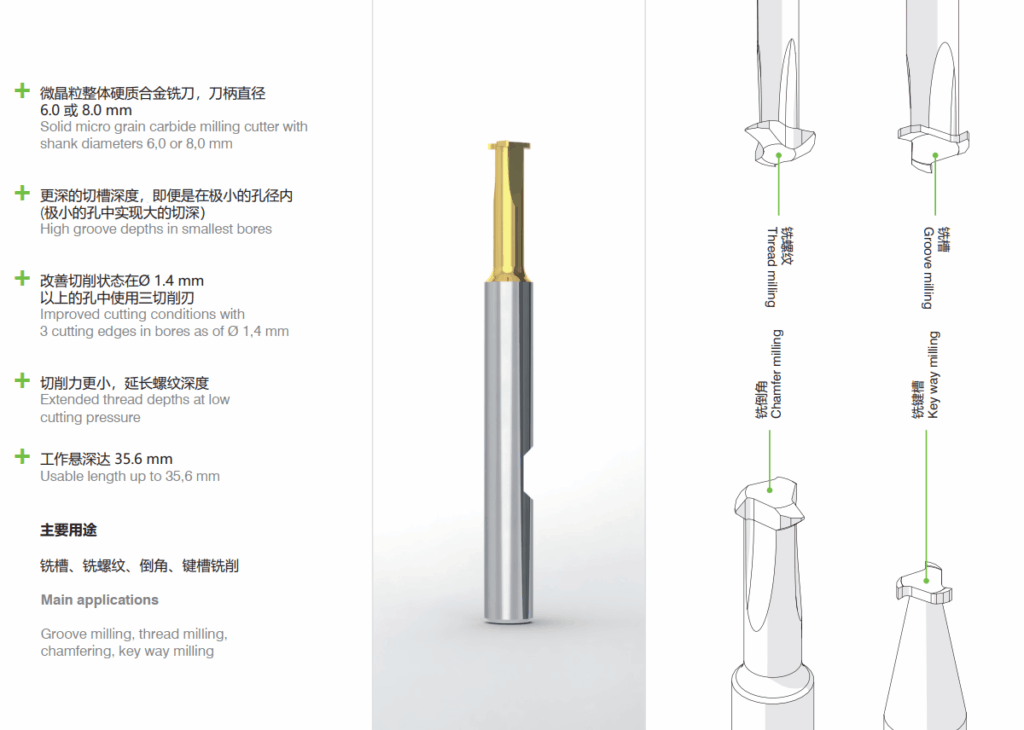

simmill AX 系列 整体微晶粒硬质合金铣刀，用于圆铣应用，孔径至小为 Ø 1.4 mm。提供 3 个和部分 4 个切削刃。该系统可以在低切削压力下实现高槽深和加大螺纹深度。广泛的标准应用。铣槽、铣螺纹、倒角、键槽铣削

MA3.BS20.C.02.16.06 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=20
MA3.BS24.C.02.10.06 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=24
MA3.BS26.02.16.06 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=26
MA3.BS28.02.10.06 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=28
MA3.BS32.02.10.06 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=32
MA3.BS32.C.02.08.04 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=32
MA3.BS40.C.02.08.04 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=40
MA4.BS12.C.02.30.10 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=12
MA4.BS14.C.02.25.08 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=14
MA4.BS16.02.30.10 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=16
MA4.BS16.C.02.16.08 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=16
MA4.BS18.02.25.08 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=18
MA4.BS18.C.02.16.06 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=18
MA4.BS20.02.16.08 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=20
MA4.BS26.02.16.06 AM X800simmill AX 铣刀BSW/BSF – 螺纹；全牙型牙数/英寸=26
MA3.4545.02.03.04 AF X800simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=3 mm, Dmin=1,7 mm, tmax=0,2 mm
MA3.4545.02.04.04 AF X800simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=4 mm, Dmin=2,2 mm, tmax=0,3 mm
MA3.4545.02.15.06 AF GT42simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=15 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.15.06 AF X510simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=15 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.15.06 AF X710simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=15 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.15.06 AF X800simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=15 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.15.250 AF X800simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=15 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.25.06 AF X510simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=25 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.25.06 AF X710simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=25 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.25.06 AF X800simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=25 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.25.08 AF X510simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.4545.02.25.08 AF X710simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.4545.02.25.08 AF X800simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.4545.02.25.250 AF X800simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=25 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.25.312 AF X800simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.4545.02.35.08 AF X800simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=35 mm, Dmin=8 mm, tmax=1,2 mm
MA3.4545.02.35.312 AF X800simmill AX 铣刀倒角, DIN 6535 HA角度=45°, L2=35 mm, Dmin=8 mm, tmax=1,2 mm
MA3.4545.02.15.06 BF X710simmill AX 铣刀倒角, DIN 6535 HB角度=45°, L2=15 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.15.06 BF X800simmill AX 铣刀倒角, DIN 6535 HB角度=45°, L2=15 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.25.06 BF X510simmill AX 铣刀倒角, DIN 6535 HB角度=45°, L2=25 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.25.06 BF X710simmill AX 铣刀倒角, DIN 6535 HB角度=45°, L2=25 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.25.06 BF X800simmill AX 铣刀倒角, DIN 6535 HB角度=45°, L2=25 mm, Dmin=6 mm, tmax=0,6 mm
MA3.4545.02.25.08 BF X800simmill AX 铣刀倒角, DIN 6535 HB角度=45°, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.4545.02.35.08 BF X800simmill AX 铣刀倒角, DIN 6535 HB角度=45°, L2=35 mm, Dmin=8 mm, tmax=1,2 mm
MA4.MT04.C.01.05.03 AM X510simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,4-0,45 mm, 螺纹规格=M2, L2=5,1 mm
MA4.MT04.C.01.05.03 AM X710simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,4-0,45 mm, 螺纹规格=M2, L2=5,1 mm
MA4.MT04.C.01.05.03 AM X800simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,4-0,45 mm, 螺纹规格=M2, L2=5,1 mm
MA4.MT04.C.01.06.03 AM X800simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,45-0,5 mm, 螺纹规格=M2,5, L2=6,1 mm
MA4.MT05.C.01.07.03 AM X510simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,5-0,6 mm, 螺纹规格=M3, L2=7,1 mm
MA4.MT05.C.01.07.03 AM X710simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,5-0,6 mm, 螺纹规格=M3, L2=7,1 mm
MA4.MT05.C.01.07.03 AM X800simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,5-0,6 mm, 螺纹规格=M3, L2=7,1 mm
MA4.MT06.C.01.08.03 AM X800simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,6-0,7 mm, 螺纹规格=M3,5, L2=8,1 mm
MA4.MT07.C.01.09.05 AM X510simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,7-0,8 mm, 螺纹规格=M4, L2=9,1 mm
MA4.MT07.C.01.09.05 AM X710simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,7-0,8 mm, 螺纹规格=M4, L2=9,1 mm
MA4.MT07.C.01.09.05 AM X800simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,7-0,8 mm, 螺纹规格=M4, L2=9,1 mm
MA4.MT08.C.01.10.05 AM GT42simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,8-1 mm, 螺纹规格=M5, L2=10,1 mm
MA4.MT08.C.01.10.05 AM X510simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,8-1 mm, 螺纹规格=M5, L2=10,1 mm
MA4.MT08.C.01.10.05 AM X710simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,8-1 mm, 螺纹规格=M5, L2=10,1 mm
MA4.MT08.C.01.10.05 AM X800simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=0,8-1 mm, 螺纹规格=M5, L2=10,1 mm
MA4.MT10.C.01.12.05 AM GT42simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=1-1,25 mm, 螺纹规格=M6, L2=12,2 mm
MA4.MT10.C.01.12.05 AM X510simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=1-1,25 mm, 螺纹规格=M6, L2=12,2 mm
MA4.MT10.C.01.12.05 AM X710simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=1-1,25 mm, 螺纹规格=M6, L2=12,2 mm
MA4.MT10.C.01.12.05 AM X800simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=1-1,25 mm, 螺纹规格=M6, L2=12,2 mm
MA4.MT10.C.01.15.05 AM X800simmill AX 铣刀公制 ISO 粗牙螺纹，部分牙型P=1-1,25 mm, 螺纹规格=M7, L2=15,2 mm
MA3.MT02.01.02.03 AM GT42simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,25-0,25 mm, 螺纹规格=M1, L2=2,5 mm
MA3.MT02.01.02.03 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,25-0,25 mm, 螺纹规格=M1, L2=2,5 mm
MA3.MT02.01.02.03 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,25-0,25 mm, 螺纹规格=M1, L2=2,5 mm
MA3.MT02.01.02.03 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,25-0,25 mm, 螺纹规格=M1, L2=2,5 mm
MA3.MT03.01.04.03 AM GT42simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,35-0,35 mm, 螺纹规格=M1,6, L2=4 mm
MA3.MT03.01.04.03 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,35-0,35 mm, 螺纹规格=M1,6, L2=4 mm
MA3.MT03.01.04.03 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,35-0,35 mm, 螺纹规格=M1,6, L2=4 mm
MA3.MT03.01.04.03 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,35-0,35 mm, 螺纹规格=M1,6, L2=4 mm
MA3.MT03.01.05.03 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,35-0,35 mm, 螺纹规格=M1,8, L2=5 mm
MA3.MT03.01.05.03 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,35-0,35 mm, 螺纹规格=M1,8, L2=5 mm
MA3.MT03.01.05.03 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,35-0,35 mm, 螺纹规格=M1,8, L2=5 mm
MA3.MT15.01.15.06 AM GT42simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,5-1,5 mm, 螺纹规格=M7,0, L2=15 mm
MA3.MT15.01.15.06 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,5-1,5 mm, 螺纹规格=M7,0, L2=15 mm
MA3.MT15.01.15.06 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,5-1,5 mm, 螺纹规格=M7,0, L2=15 mm
MA3.MT15.01.15.06 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,5-1,5 mm, 螺纹规格=M7,0, L2=15 mm
MA3.MT15.01.15.250 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,5-1,5 mm, 螺纹规格=M7,0, L2=15 mm
MA3.MT15.01.25.08 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,5-1,5 mm, 螺纹规格=M9,0, L2=25 mm
MA3.MT15.01.25.08 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,5-1,5 mm, 螺纹规格=M9,0, L2=25 mm
MA3.MT15.01.25.08 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,5-1,5 mm, 螺纹规格=M9,0, L2=25 mm
MA3.MT15.01.25.312 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,5-1,5 mm, 螺纹规格=M9,0, L2=25 mm
MA3.MT20.01.25.08 AM GT42simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=1-2 mm, 螺纹规格=M10,0, L2=25 mm
MA3.MT20.01.25.08 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=1-2 mm, 螺纹规格=M10,0, L2=25 mm
MA3.MT20.01.25.08 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=1-2 mm, 螺纹规格=M10,0, L2=25 mm
MA3.MT20.01.25.08 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=1-2 mm, 螺纹规格=M10,0, L2=25 mm
MA3.MT20.01.25.312 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=1-2 mm, 螺纹规格=M10,0, L2=25 mm
MA4.MT04.01.05.03 AM GT42simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,4-0,4 mm, 螺纹规格=M2,5, L2=5 mm
MA4.MT04.01.05.03 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,4-0,4 mm, 螺纹规格=M2,5, L2=5 mm
MA4.MT04.01.05.03 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,4-0,4 mm, 螺纹规格=M2,5, L2=5 mm
MA4.MT04.01.05.03 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,4-0,4 mm, 螺纹规格=M2,5, L2=5 mm
MA4.MT04.01.06.03 AM GT42simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,45-0,45 mm, 螺纹规格=M3, L2=6 mm
MA4.MT04.01.06.03 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,45-0,45 mm, 螺纹规格=M3, L2=6 mm
MA4.MT04.01.06.03 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,45-0,45 mm, 螺纹规格=M3, L2=6 mm
MA4.MT04.01.06.03 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,45-0,45 mm, 螺纹规格=M3, L2=6 mm
MA4.MT05.01.07.03 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,5-0,5 mm, 螺纹规格=M3,5, L2=7 mm
MA4.MT06.01.08.03 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,6-0,6 mm, 螺纹规格=M4,0, L2=8 mm
MA4.MT06.01.08.03 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,6-0,6 mm, 螺纹规格=M4,0, L2=8 mm
MA4.MT06.01.08.03 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,6-0,6 mm, 螺纹规格=M4,0, L2=8 mm
MA4.MT07.01.09.05 AM GT42simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,7-0,7 mm, 螺纹规格=M4,5, L2=9 mm
MA4.MT07.01.09.05 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,7-0,7 mm, 螺纹规格=M4,5, L2=9 mm
MA4.MT07.01.09.05 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,7-0,7 mm, 螺纹规格=M4,5, L2=9 mm
MA4.MT07.01.09.05 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,7-0,7 mm, 螺纹规格=M4,5, L2=9 mm
MA4.MT08.01.10.05 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=0,8-0,8 mm, 螺纹规格=M5,5, L2=10 mm
MA4.MT10.01.12.05 AM GT42simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=1-1 mm, 螺纹规格=M7,0, L2=12 mm
MA4.MT10.01.12.05 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=1-1 mm, 螺纹规格=M7,0, L2=12 mm
MA4.MT10.01.12.05 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=1-1 mm, 螺纹规格=M7,0, L2=12 mm
MA4.MT10.01.12.05 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=1-1 mm, 螺纹规格=M7,0, L2=12 mm
MA4.MT10.01.15.05 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HAP=1-1 mm, 螺纹规格=M7,0, L2=15 mm
MA3.MT15.01.15.06 BM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HBP=0,5-1,5 mm, 螺纹规格=M7, L2=15 mm
MA3.MT15.01.25.08 BM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HBP=0,5-1,5 mm, 螺纹规格=M9, L2=25 mm
MA3.MT20.01.25.08 BM X710simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HBP=1-2 mm, 螺纹规格=M10, L2=25 mm
MA3.MT20.01.25.08 BM X800simmill AX 铣刀公制 ISO 螺纹铣刀，部分牙型， DIN 6535 HBP=1-2 mm, 螺纹规格=M10, L2=25 mm
MA3.MT03.02.08.04 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M2,5 mm, P=0,35, L2=8
MA3.MT05.02.10.06 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M3,5 mm, P=0,5, L2=10
MA3.MT05.C.02.08.04 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M2,5 mm, P=0,5, L2=8
MA3.MT06.C.02.09.04 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M3 mm, P=0,6, L2=9
MA3.MT06.C.02.09.04 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M3 mm, P=0,6, L2=9
MA3.MT06.C.02.09.04 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M3 mm, P=0,6, L2=9
MA3.MT07.C.02.10.06 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M4 mm, P=0,7, L2=10
MA4.MT07.02.16.06 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M6 mm, P=0,75, L2=16
MA4.MT07.02.16.06 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M6 mm, P=0,75, L2=16
MA4.MT07.02.16.06 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M6 mm, P=0,75, L2=16
MA4.MT07.02.20.08 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M8 mm, P=0,75, L2=20
MA4.MT07.02.20.08 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M8 mm, P=0,75, L2=20
MA4.MT08.C.02.12.06 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M5 mm, P=0,8, L2=12
MA4.MT10.02.16.06 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M8 mm, P=1, L2=16
MA4.MT10.02.20.10 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M10 mm, P=1, L2=20
MA4.MT10.02.25.08 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M10 mm, P=1, L2=25
MA4.MT10.C.02.16.06 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M6 mm, P=1, L2=16
MA4.MT10.C.02.16.06 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M6 mm, P=1, L2=16
MA4.MT10.C.02.16.06 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M6 mm, P=1, L2=16
MA4.MT12.02.30.10 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M12 mm, P=1,25, L2=30
MA4.MT12.C.02.16.06 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M8 mm, P=1,25, L2=16
MA4.MT12.C.02.16.06 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M8 mm, P=1,25, L2=16
MA4.MT12.C.02.16.06 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M8 mm, P=1,25, L2=16
MA4.MT15.C.02.20.08 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M12 mm, P=1,5, L2=20
MA4.MT15.C.02.20.08 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M12 mm, P=1,5, L2=20
MA4.MT15.C.02.20.08 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M12 mm, P=1,5, L2=20
MA4.MT17.C.02.30.10 AM X510simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M14 mm, P=1,75, L2=30
MA4.MT17.C.02.30.10 AM X710simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M14 mm, P=1,75, L2=30
MA4.MT17.C.02.30.10 AM X800simmill AX 铣刀公制 ISO 螺纹铣刀，全牙型Dmin=M14 mm, P=1,75, L2=30
MA3.100.04.06.00 AS GT42simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=1 mm, 圆直径=4,5 mm, tmax=1 mm
MA3.100.04.06.00 AS X510simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=1 mm, 圆直径=4,5 mm, tmax=1 mm
MA3.100.04.06.00 AS X710simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=1 mm, 圆直径=4,5 mm, tmax=1 mm
MA3.100.04.06.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=1 mm, 圆直径=4,5 mm, tmax=1 mm
MA3.150.07.08.00 AS X510simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=1,5 mm, 圆直径=7,5 mm, tmax=2 mm
MA3.150.07.08.00 AS X710simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=1,5 mm, 圆直径=7,5 mm, tmax=2 mm
MA3.150.07.08.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=1,5 mm, 圆直径=7,5 mm, tmax=2 mm
MA3.200.07.08.00 AS X510simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=2 mm, 圆直径=7,5 mm, tmax=1,8 mm
MA3.200.07.08.00 AS X710simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=2 mm, 圆直径=7,5 mm, tmax=1,8 mm
MA3.200.07.08.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=2 mm, 圆直径=7,5 mm, tmax=1,8 mm
MA3.200.10.12.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=2 mm, 圆直径=10,5 mm, tmax=2,9 mm
MA3.250.10.12.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=2,5 mm, 圆直径=10,5 mm, tmax=2,9 mm
MA3.300.10.12.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=3 mm, 圆直径=10,5 mm, tmax=2,5 mm
MA3.300.13.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=3 mm, 圆直径=13,5 mm, tmax=3,8 mm
MA3.300.16.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=3 mm, 圆直径=16,5 mm, tmax=5,3 mm
MA3.400.13.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=4 mm, 圆直径=13,5 mm, tmax=3,5 mm
MA3.400.16.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=4 mm, 圆直径=16,5 mm, tmax=5 mm
MA3.400.19.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=4 mm, 圆直径=19,5 mm, tmax=6 mm
MA3.500.16.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=5 mm, 圆直径=16,5 mm, tmax=4,5 mm
MA3.500.19.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=5 mm, 圆直径=19,5 mm, tmax=5,5 mm
MA3.500.22.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=5 mm, 圆直径=22,5 mm, tmax=7 mm
MA3.600.19.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=6 mm, 圆直径=19,5 mm, tmax=5,1 mm
MA3.600.22.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=6 mm, 圆直径=22,5 mm, tmax=6,6 mm
MA3.600.25.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=6 mm, 圆直径=25,5 mm, tmax=7,6 mm
MA3.800.22.16.00 AS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HAw=8 mm, 圆直径=22,5 mm, tmax=6,2 mm
MA3.100.04.06.00 BS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HBw=1 mm, 圆直径=4,5 mm, tmax=1 mm
MA3.150.07.08.00 BS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HBw=1,5 mm, 圆直径=7,5 mm, tmax=2 mm
MA3.200.10.12.00 BS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HBw=2 mm, 圆直径=10,5 mm, tmax=2,9 mm
MA3.300.10.12.00 BS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HBw=3 mm, 圆直径=10,5 mm, tmax=2,5 mm
MA3.300.13.16.00 BS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HBw=3 mm, 圆直径=13,5 mm, tmax=3,8 mm
MA3.300.16.16.00 BS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HBw=3 mm, 圆直径=16,5 mm, tmax=5,3 mm
MA3.400.13.16.00 BS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HBw=4 mm, 圆直径=13,5 mm, tmax=3,5 mm
MA3.400.16.16.00 BS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HBw=4 mm, 圆直径=16,5 mm, tmax=5 mm
MA3.500.16.16.00 BS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HBw=5 mm, 圆直径=16,5 mm, tmax=4,5 mm
MA3.500.22.16.00 BS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HBw=5 mm, 圆直径=22,5 mm, tmax=7 mm
MA3.600.22.16.00 BS X800simmill AX 铣刀键槽铣削 (DIN 6888), DIN 6535 HBw=6 mm, 圆直径=22,5 mm, tmax=6,6 mm
MA3.UN24.C.02.10.06 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=24
MA3.UN32.C.02.08.04 AM X510simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=32
MA3.UN32.C.02.08.04 AM X710simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=32
MA3.UN32.C.02.08.04 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=32
MA3.UN36.02.10.06 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=36
MA3.UN40.02.08.04 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=40
MA3.UN40.C.02.08.04 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=40
MA3.UN44.02.08.04 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=44
MA4.UN14.C.02.25.08 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=14
MA4.UN16.C.02.25.06 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=16
MA4.UN18.C.02.10.06 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=18
MA4.UN20.02.30.08 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=20
MA4.UN20.C.02.10.06 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=20
MA4.UN28.02.10.06 AM X800simmill AX 铣刀螺纹铣削；UNC/UNF；全牙型牙数/英寸=28
MA4.BS19.P.02.20.10 AM X510simmill AX 铣刀螺纹铣削；惠氏管螺纹牙数/英寸=19, Gewindegröße G 1/4”
MA4.BS19.P.02.20.10 AM X710simmill AX 铣刀螺纹铣削；惠氏管螺纹牙数/英寸=19, Gewindegröße G 1/4”
MA4.BS19.P.02.20.10 AM X800simmill AX 铣刀螺纹铣削；惠氏管螺纹牙数/英寸=19, Gewindegröße G 1/4”
MA4.BS19.P.02.30.12 AM X800simmill AX 铣刀螺纹铣削；惠氏管螺纹牙数/英寸=19, Gewindegröße G 3/8”
MA4.BS28.P.02.16.06 AM X800simmill AX 铣刀螺纹铣削；惠氏管螺纹牙数/英寸=28, Gewindegröße G 1/16”
MA4.BS28.P.02.16.08 AM X800simmill AX 铣刀螺纹铣削；惠氏管螺纹牙数/英寸=28, Gewindegröße G 1/8”
MA3.050.15.06.00 AG GT42simmill AX 铣刀通用开槽, DIN 6535 HAw=0,5 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.050.15.06.00 AG X510simmill AX 铣刀通用开槽, DIN 6535 HAw=0,5 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.050.15.06.00 AG X710simmill AX 铣刀通用开槽, DIN 6535 HAw=0,5 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.050.15.06.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=0,5 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.060.15.06.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=0,6 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.070.15.06.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=0,7 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.070.25.08.00 AG X510simmill AX 铣刀通用开槽, DIN 6535 HAw=0,7 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.070.25.08.00 AG X710simmill AX 铣刀通用开槽, DIN 6535 HAw=0,7 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.070.25.08.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=0,7 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.080.15.06.00 AG X510simmill AX 铣刀通用开槽, DIN 6535 HAw=0,8 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.080.15.06.00 AG X710simmill AX 铣刀通用开槽, DIN 6535 HAw=0,8 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.080.15.06.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=0,8 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.080.25.08.00 AG GT42simmill AX 铣刀通用开槽, DIN 6535 HAw=0,8 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.080.25.08.00 AG X510simmill AX 铣刀通用开槽, DIN 6535 HAw=0,8 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.080.25.08.00 AG X710simmill AX 铣刀通用开槽, DIN 6535 HAw=0,8 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.080.25.08.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=0,8 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.090.15.06.00 AG X510simmill AX 铣刀通用开槽, DIN 6535 HAw=0,9 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.090.15.06.00 AG X710simmill AX 铣刀通用开槽, DIN 6535 HAw=0,9 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.090.15.06.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=0,9 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.090.25.08.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=0,9 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.100.15.06.00 AG X510simmill AX 铣刀通用开槽, DIN 6535 HAw=1 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.100.15.06.00 AG X710simmill AX 铣刀通用开槽, DIN 6535 HAw=1 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.100.15.06.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=1 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.100.25.08.00 AG X510simmill AX 铣刀通用开槽, DIN 6535 HAw=1 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.100.25.08.00 AG X710simmill AX 铣刀通用开槽, DIN 6535 HAw=1 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.100.25.08.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=1 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.150.15.06.00 AG X510simmill AX 铣刀通用开槽, DIN 6535 HAw=1,5 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.150.15.06.00 AG X710simmill AX 铣刀通用开槽, DIN 6535 HAw=1,5 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.150.15.06.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=1,5 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.150.25.08.00 AG X510simmill AX 铣刀通用开槽, DIN 6535 HAw=1,5 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.150.25.08.00 AG X710simmill AX 铣刀通用开槽, DIN 6535 HAw=1,5 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.150.25.08.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=1,5 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.200.25.08.00 AG X800simmill AX 铣刀通用开槽, DIN 6535 HAw=2 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.050.15.06.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=0,5 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.060.15.06.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=0,6 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.070.15.06.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=0,7 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.070.25.08.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=0,7 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.080.15.06.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=0,8 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.080.25.08.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=0,8 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.090.15.06.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=0,9 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.090.25.08.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=0,9 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.100.15.06.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=1 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.100.25.08.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=1 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.150.15.06.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=1,5 mm, L2=15 mm, Dmin=6 mm, tmax=0,8 mm
MA3.150.25.08.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=1,5 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.200.25.08.00 BG X800simmill AX 铣刀通用开槽, DIN 6535 HBw=2 mm, L2=25 mm, Dmin=8 mm, tmax=1,2 mm
MA3.100.04.04.05 AV X510simmill AX 铣刀圆弧槽铣削w=1 mm, R=0,5 mm
MA3.100.04.04.05 AV X710simmill AX 铣刀圆弧槽铣削w=1 mm, R=0,5 mm
MA3.100.04.04.05 AV X800simmill AX 铣刀圆弧槽铣削w=1 mm, R=0,5 mm
MA3.100.06.06.05 AV X800simmill AX 铣刀圆弧槽铣削w=1 mm, R=0,5 mm
MA3.150.06.06.07 AV X510simmill AX 铣刀圆弧槽铣削w=1,5 mm, R=0,75 mm
MA3.150.06.06.07 AV X710simmill AX 铣刀圆弧槽铣削w=1,5 mm, R=0,75 mm
MA3.150.06.06.07 AV X800simmill AX 铣刀圆弧槽铣削w=1,5 mm, R=0,75 mm
MA4.100.20.10.05 AV X510simmill AX 铣刀圆弧槽铣削w=1 mm, R=0,5 mm
MA4.100.20.10.05 AV X710simmill AX 铣刀圆弧槽铣削w=1 mm, R=0,5 mm
MA4.100.20.10.05 AV X800simmill AX 铣刀圆弧槽铣削w=1 mm, R=0,5 mm
MA4.150.16.08.07 AV X800simmill AX 铣刀圆弧槽铣削w=1,5 mm, R=0,75 mm
MA4.150.20.10.07 AV X800simmill AX 铣刀圆弧槽铣削w=1,5 mm, R=0,75 mm
MA4.200.16.08.10 AV X800simmill AX 铣刀圆弧槽铣削w=2 mm, R=1 mm
MA4.200.20.10.10 AV X800simmill AX 铣刀圆弧槽铣削w=2 mm, R=1 mm
MA4.250.20.10.12 AV X800simmill AX 铣刀圆弧槽铣削w=2,5 mm, R=1,25 mm
MA4.300.20.10.15 AV X800simmill AX 铣刀圆弧槽铣削w=3 mm, R=1,5 mm

新品

客服
📞 13562001913
微信二维码

微信扫码联系

✉️ sales@lc567.com
